Overview

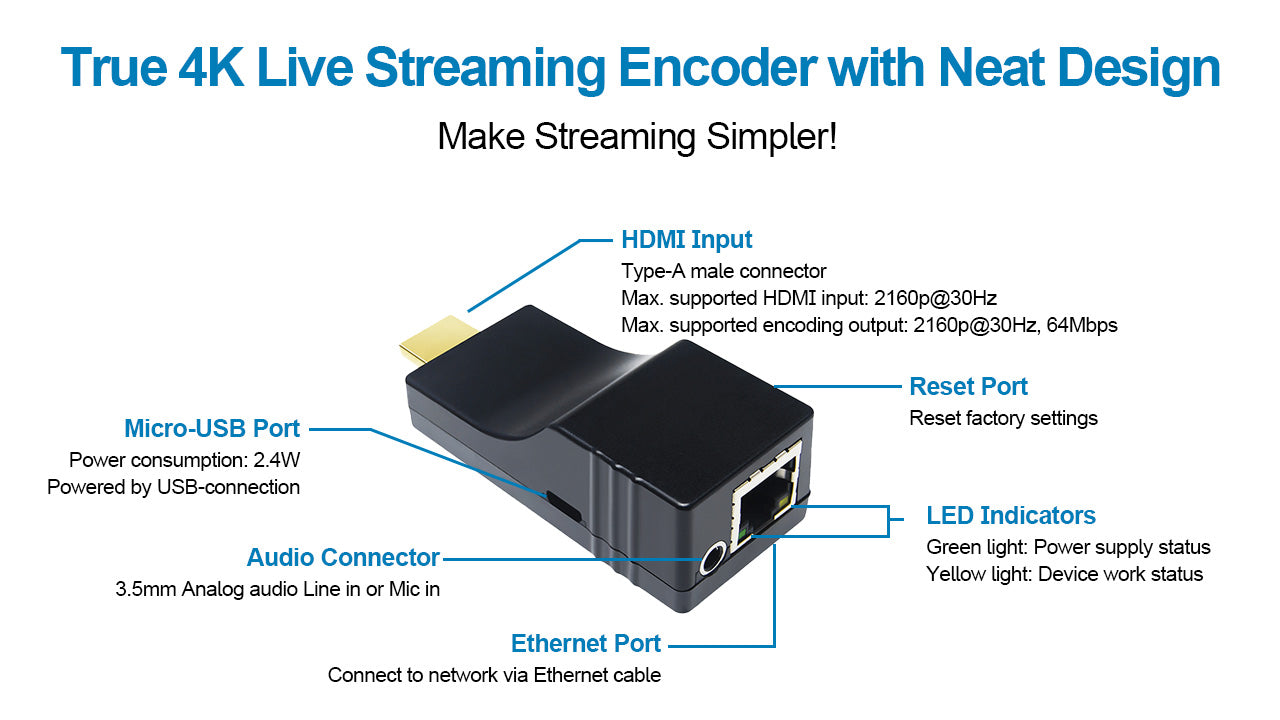

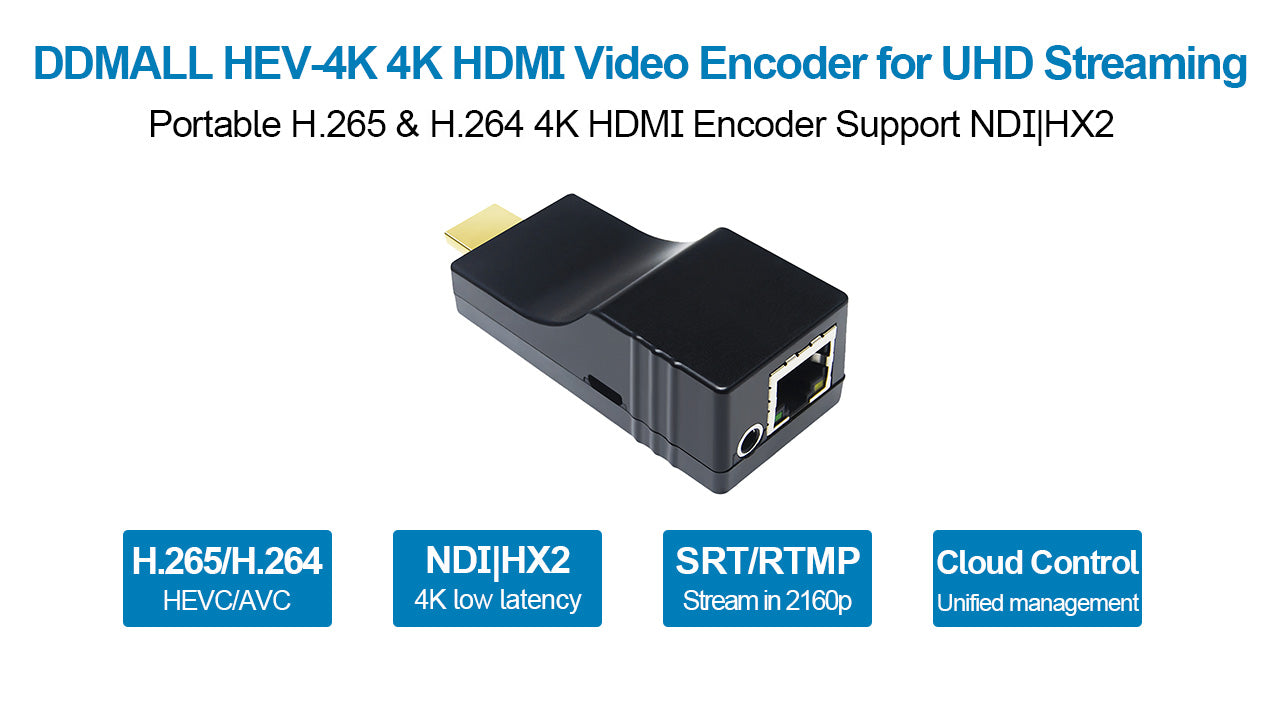

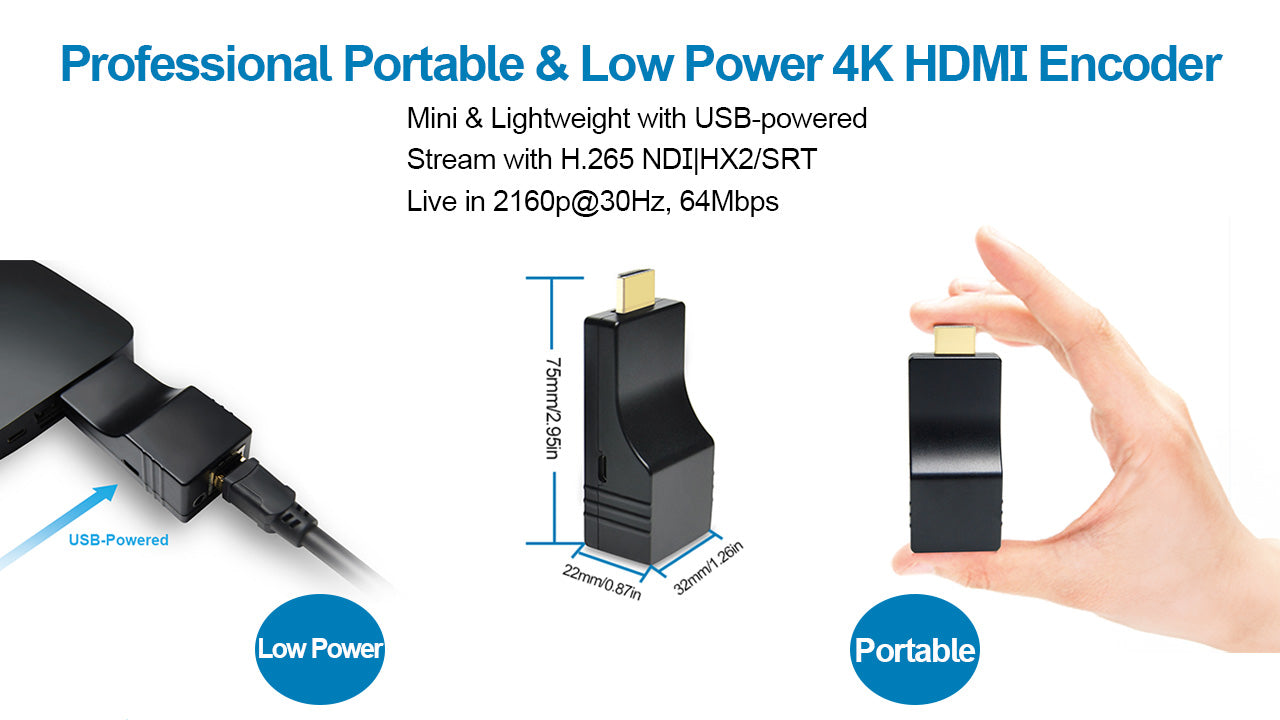

Portable SRT HDMI Encoder: Ultra-mini size(75x32x22mm/2.95x1.26x0.87in) and ultra-lightweight(32g/0.07lbs); the live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.
Energy-Efficient & USB-Powered: Ultra-low power consumption (2.4W). The HDMI encoder can take power from most HDMI ports directly without extra power supply, or accept power from the USB port of signal sources or mobile power bank with power adapter-free, making it absolutely wonderful for the live streaming applications that require long working time, frequent move, or tiny installation space.

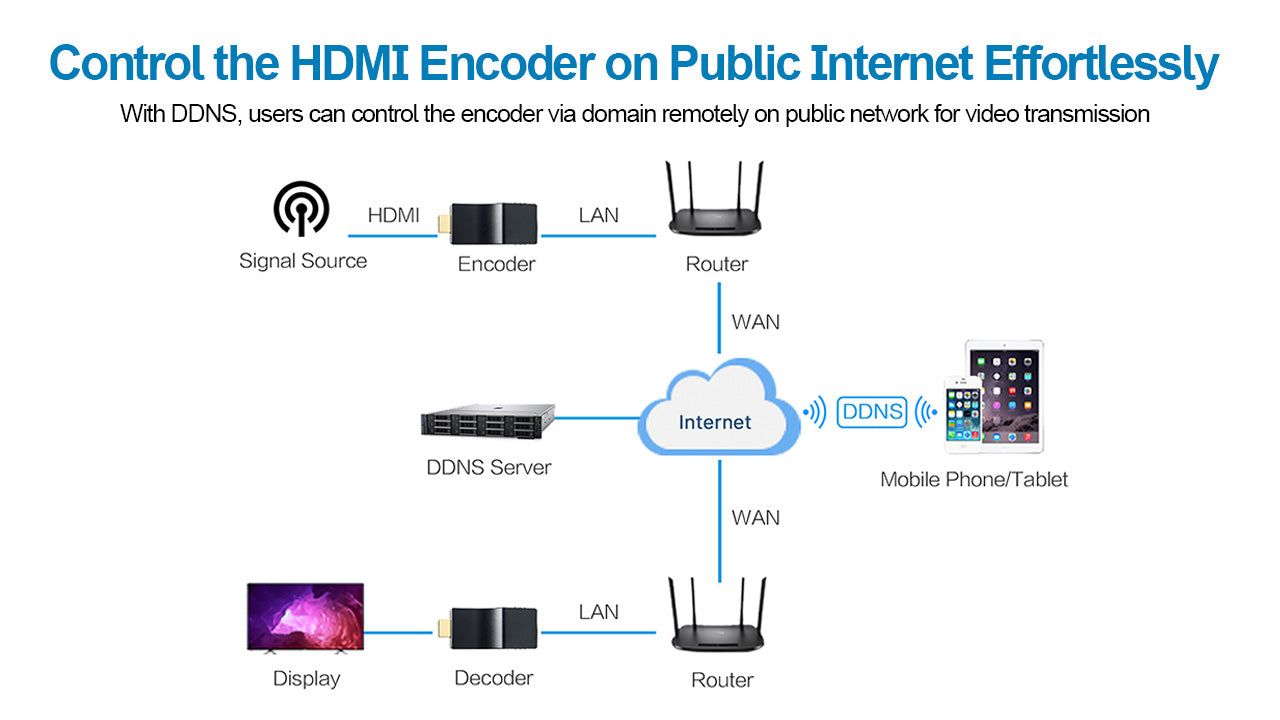

Remote Control in Public Internet: Support DDNS; you can easily control the IP encoder via domain remotely in public Internet and set up video transmission without any third-party live platform getting involved.
4K NDI Encoder: NDI|HX2 supported; this HDMI encoder delivers 4K high-quality video in low latency and low bandwidth; third-party NDI systems compatible over Ethernet.

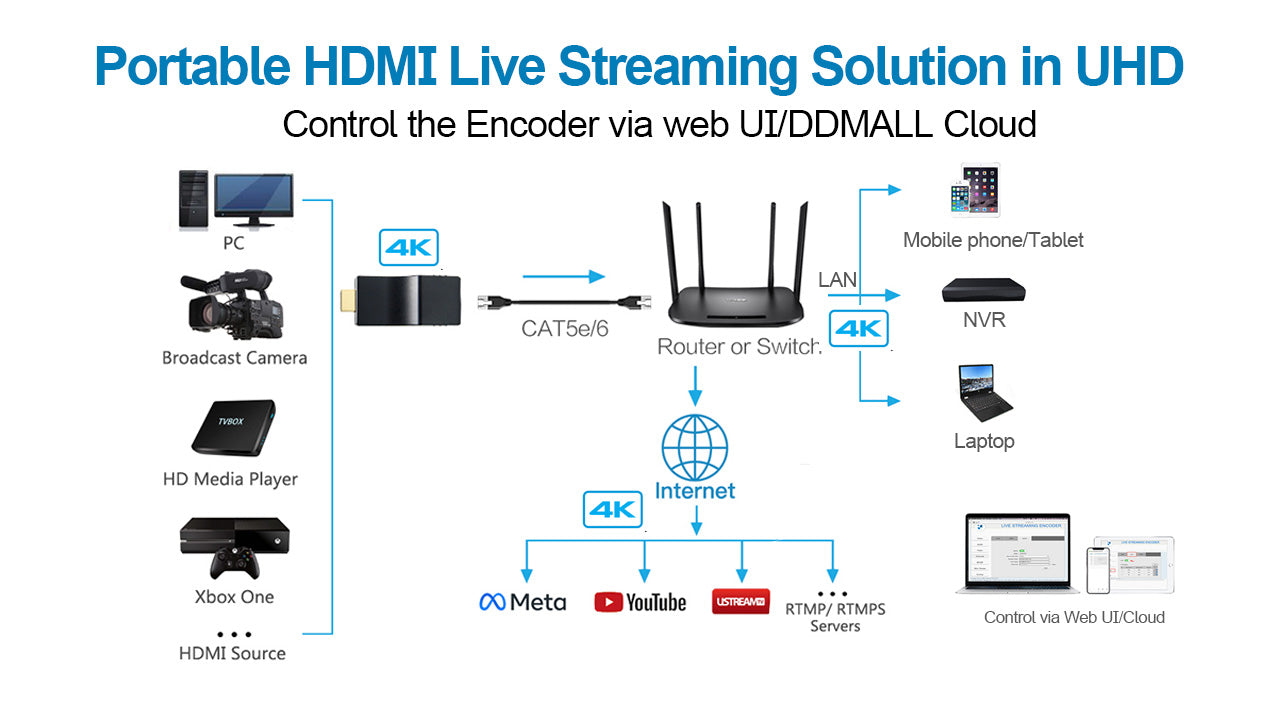

Versatile Features & Robust Performance: Simultaneously go live to up to 4 platforms, compatible with YouTube, Facebook, Twitch and more; real-time OSD setting, and preview the HDMI input video status via web UI; stream outputs up to 4K at 64Mbps with HEVC compression; support protocols like NDI, SRT, HLS, RTMP, RTMPS, RTSP, RTP, TCP, UDP, Multicast, Unicast.
4K NDI encoder
Support NDI protocol; the live streaming encoder delivers UHD video audio in true 4K clarity with low latency and low bandwidth. compatible with any third-party NDI compatible systems over LAN or Ethernet.
Stream on 4 platforms
The HDMI live video encoder allows to simultaneously stream on up to 4 platforms like YouTube, Facebook, Twitch, Vimeo, Wowza, Livestreams and more with up to 4K@30 image clarity.
Key Features
• True 4K quality without fake upscaling: the video encoder HDMI inputs up to 4K@30Hz and encoding outputs up to 4K@30Hz at up to 64Mbps; refuse fake upscaling and experience unbievable true 4K high-quality video.
• Support multiple protocols: the streaming encoder support NDI, SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast. Freely go live with your desired streaming protocol.
• Remote control: you can remotely control your live encoder via domain and set up video transmission on public Internet. When you are travelling, access to your video encoder by several steps in a few minutes, you can stream remotely with ease.
• OSD settings in real-time: the IP encoder allows to add logo/text/image to any position of video for output while you are streaming without interrupting your live video.
• Video preview: the streaming encoder allows to monitor your input video status in real time via web UI; you can open the web UI by any web-enabled device to do the settings conveniently.
• Reliable lifecycle--Support 24/7 working durance. Lifetime technical support is in place.
Specifications
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 32g/0.07lbs |
| Product Dimension | 75x32x22mm/2.95x1.26x0.87in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 1.4A | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | NDI, SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast | Supported Input Resolution |
3840*2160p@30Hz,1920*1200p@60Hz,1080p@60/50/30Hz, 1080i@60Hz,1080i@50Hz, 720p@60/50/30Hz |
| Supported Output Resolution |
3840*2160@30Hz,1080p@60Hz, 720p@60/30Hz, 960*720@60Hz, 960*540@60Hz, 640*480@60Hz, 360*200@60Hz |
Video Bitrate | 128Kbps~64Mbps |
| Pixel Clock |
165MHz (max) |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog, Mic in, Line in |
| Audio Encoding Format |
G.711u, AAC |
Compression Profile | BaseLine, Main, High |
| Control Method |
Web UI |
