Overview

To help customers quickly debug the functions of our HDMI encoding module, and save total cost of ownership, DDMALL develops the circuit debugging I/O board, which provides I/O interfaces of encoder module for A/V link and network connection etc. Users just need to embed the encoding module into the I/O board to run all functions of the encoding module. One I/O board can load and debug 4 HDMI encoding modules simultaneously. Moreover, the encoding module + I/O board can be put into use directly as a multi-channel HDMI A/V encoder. We can also provide customers with the circuit board developing diagram and design guide so that they can develop their own I/O interface for the HDMI encoding module so the encoding module can better integrate with their AV systems,  which agiles customer's workflow to the greatest extent.

Starter Kit Introduction

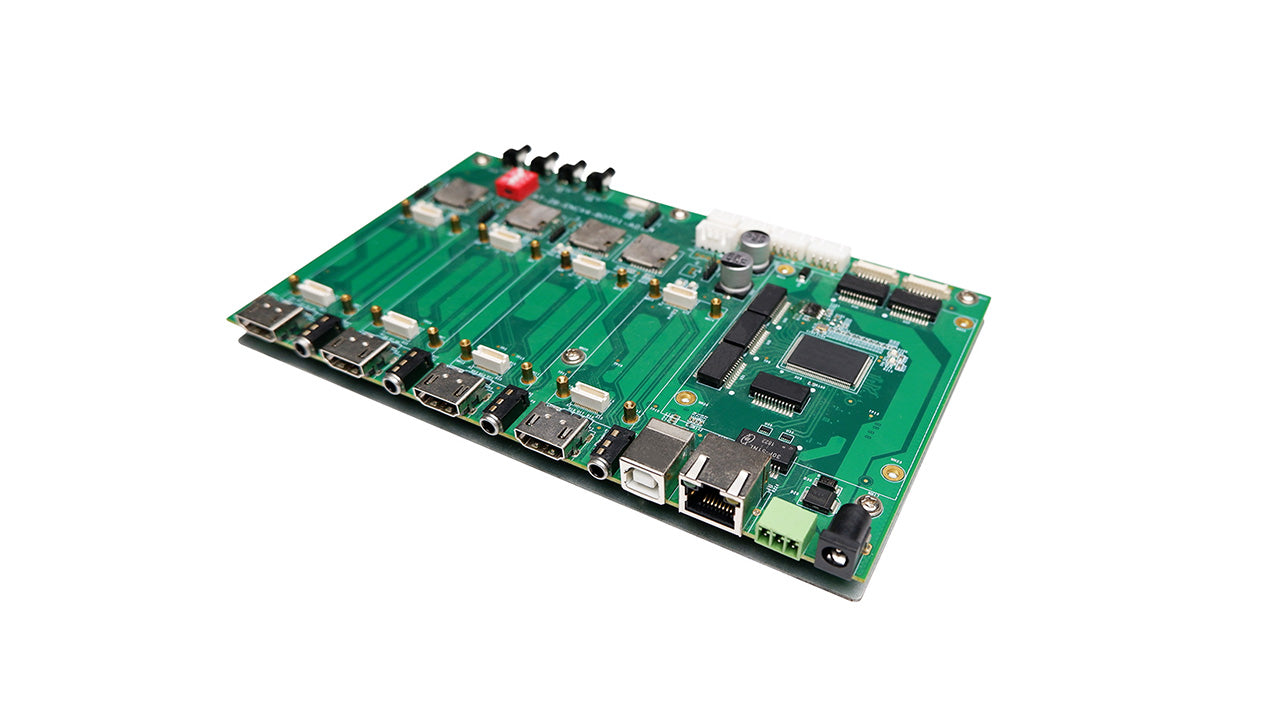

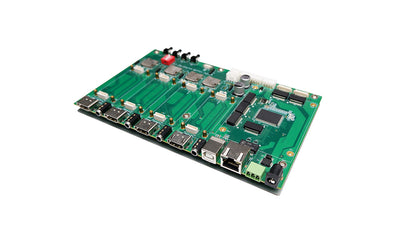

The circuit HDMI encoding I/O board provides 4 HDMI I/O interfaces for encoding modules with HDMI input, Audio input, SD card, network, and power interfaces. Users can embed the encoding module into the I/O board to quickly run all functions of the encoding modules, which dramatically saves the total cost of ownership. After the embedding, the I/O board and the encoding modules can independently work as an HDMI encoder for live streaming.

HDMI Circuit I/O Board Features

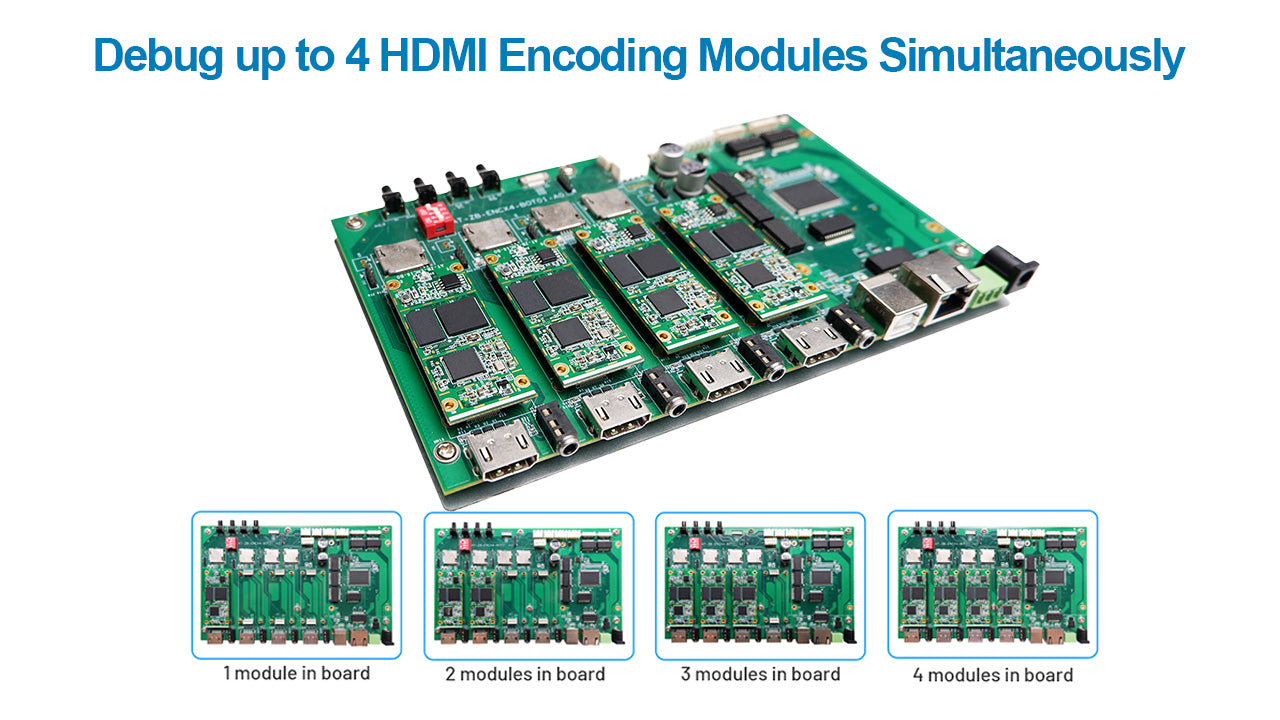

• 4 * I/O connectors are ready for encoding modules—support debugging up to 4 HDMI encoding modules.
• 4 * HDMI input interfaces are available—provide the HDMI encoding module with HDMI input signal connectors.
• 4 * 3.5mm Analog audio input interfaces are in place—provide the HDMI encoding module with analog audio input connectors.
• 4 * SD card interfaces are on site—scalability to upgrade the recording function of encoding modules.
• 1 * network connection interface is available—the 4 encoding modules can be controlled simultaneously through the network switching chip embedded inside I/O board.

Purchase Reminder

The I/O board is a supporting product to test DDMALL HDMI encoding module in an easy manner. It cannot be used independently. This shopping link only includes one I/O board and one module. If you want to buy more HDMI encoding modules, please go to the HDMI encoding module shopping link to buy seperately.
