Overview
Portable HDMI over IP Transmitter Receiver: Ultra mini(75x32x22mm) and ultra lightweight(35g). The HDMI extender is ideal for video transmission and broadcasting systems that have strict installation space. (the RX receiver cannot be used independently, and it must pair with HIP-10 TX transmitter.)

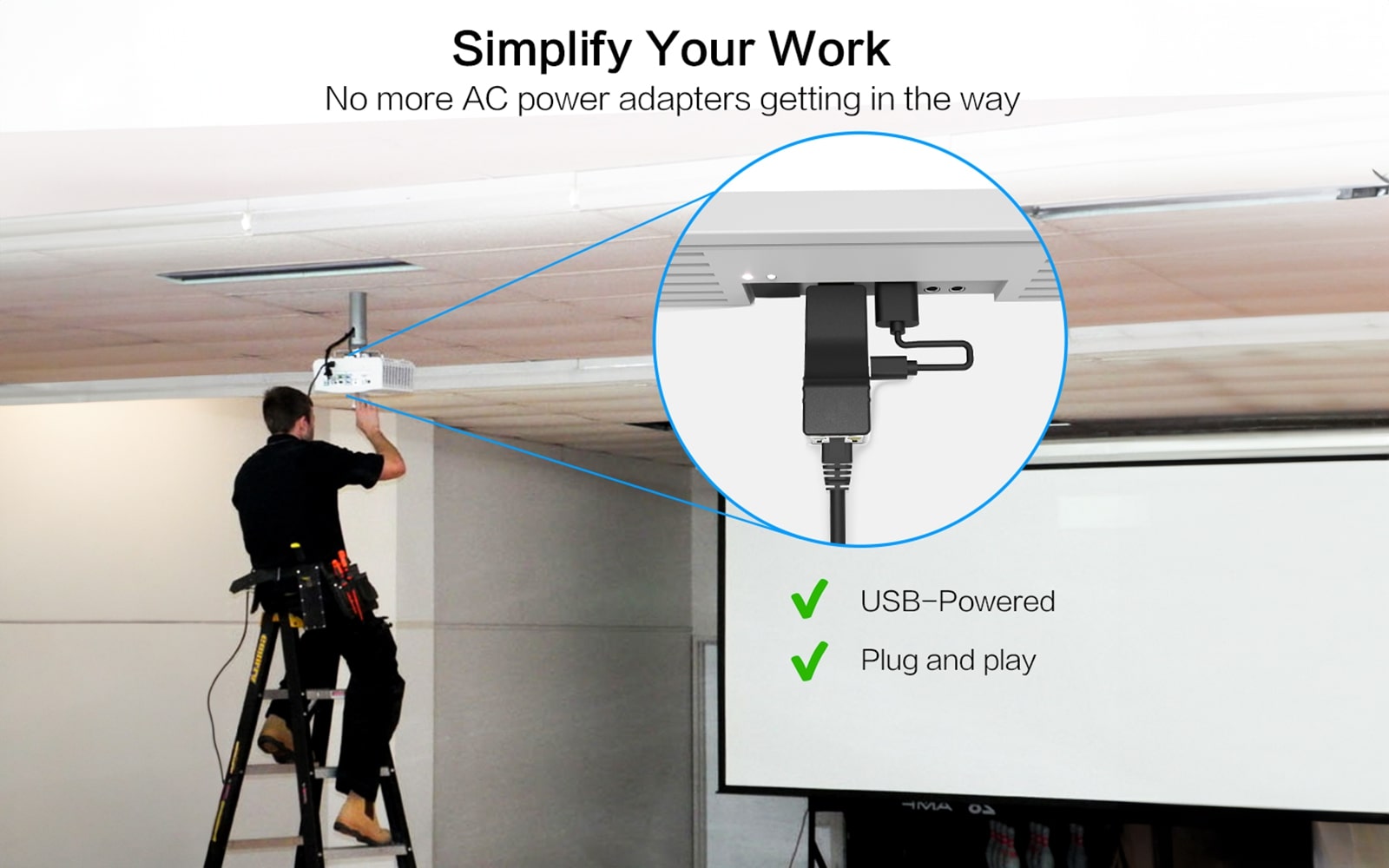

Easy Setup with Cable-Free: The HDMI over cat6 or cat7 extender receiver is USB-powered and it accepts power from the USB port of display terminals. Type-A male HDMI connector makes it easy to plug to the HDMI port of display terminals, making it easy and tidy for setup.
2K HD Decoding Output: Support 2K HEVC decoding. The extender receiver decodes the 2K IP network stream from the HIP-10 TX transmitter to 1080P HDMI signal for output with clear, smooth image quality in high-color reproduction.

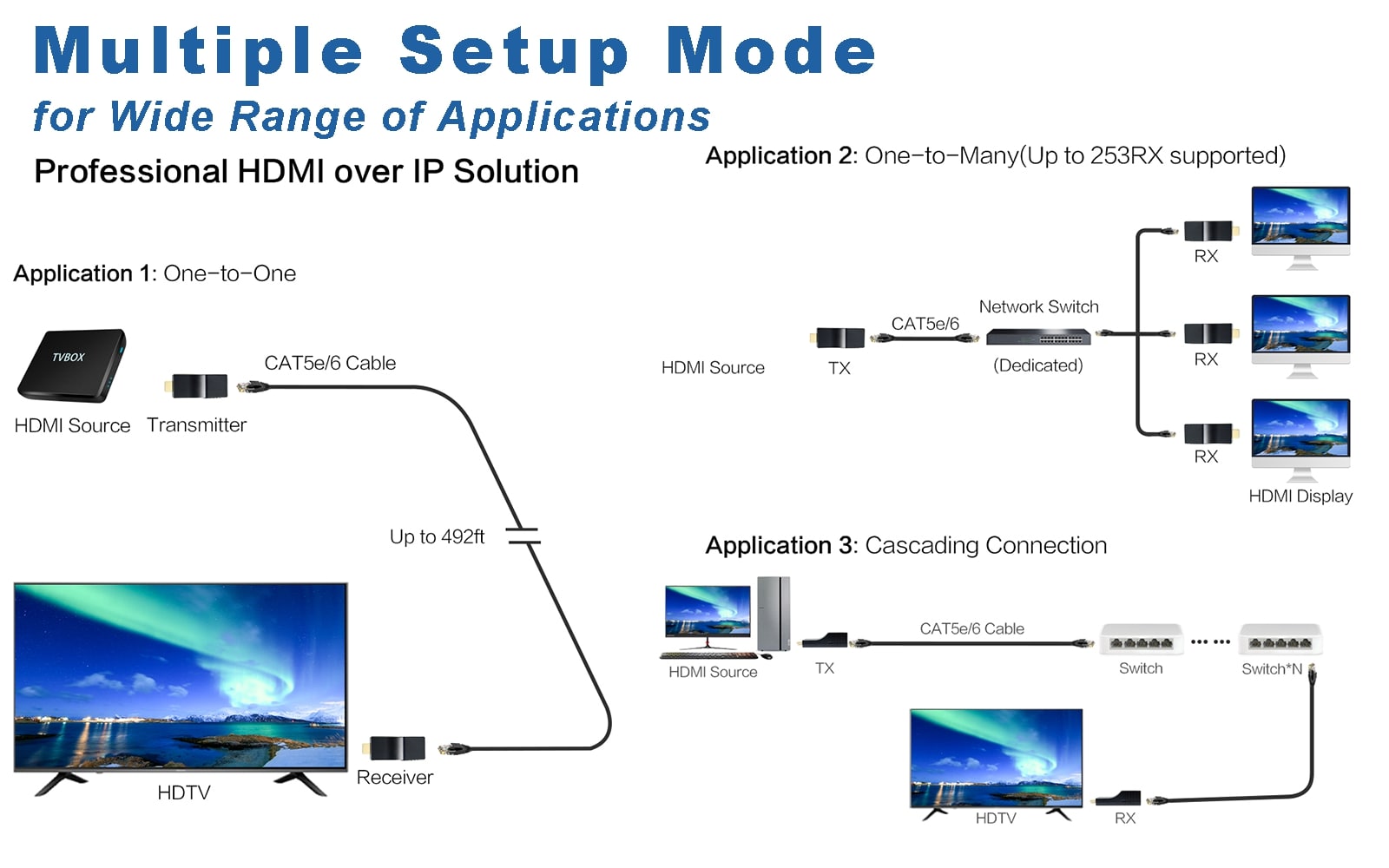

Transmission Latency as Less as 0.08s: HDMI signal long-distance transmission is achieved over twisted-pair cables in as less as 0.08s delay. Support 1-to-1 network cable direct connection with transmission range up to 492ft/150m. Support the TX transmitter and RX receivers to join the same LAN via a switch and perform video transmission over the LAN. As a HDMI over powerline extender, AV transmission can be set up over the exising power lines with a powerline adapter.

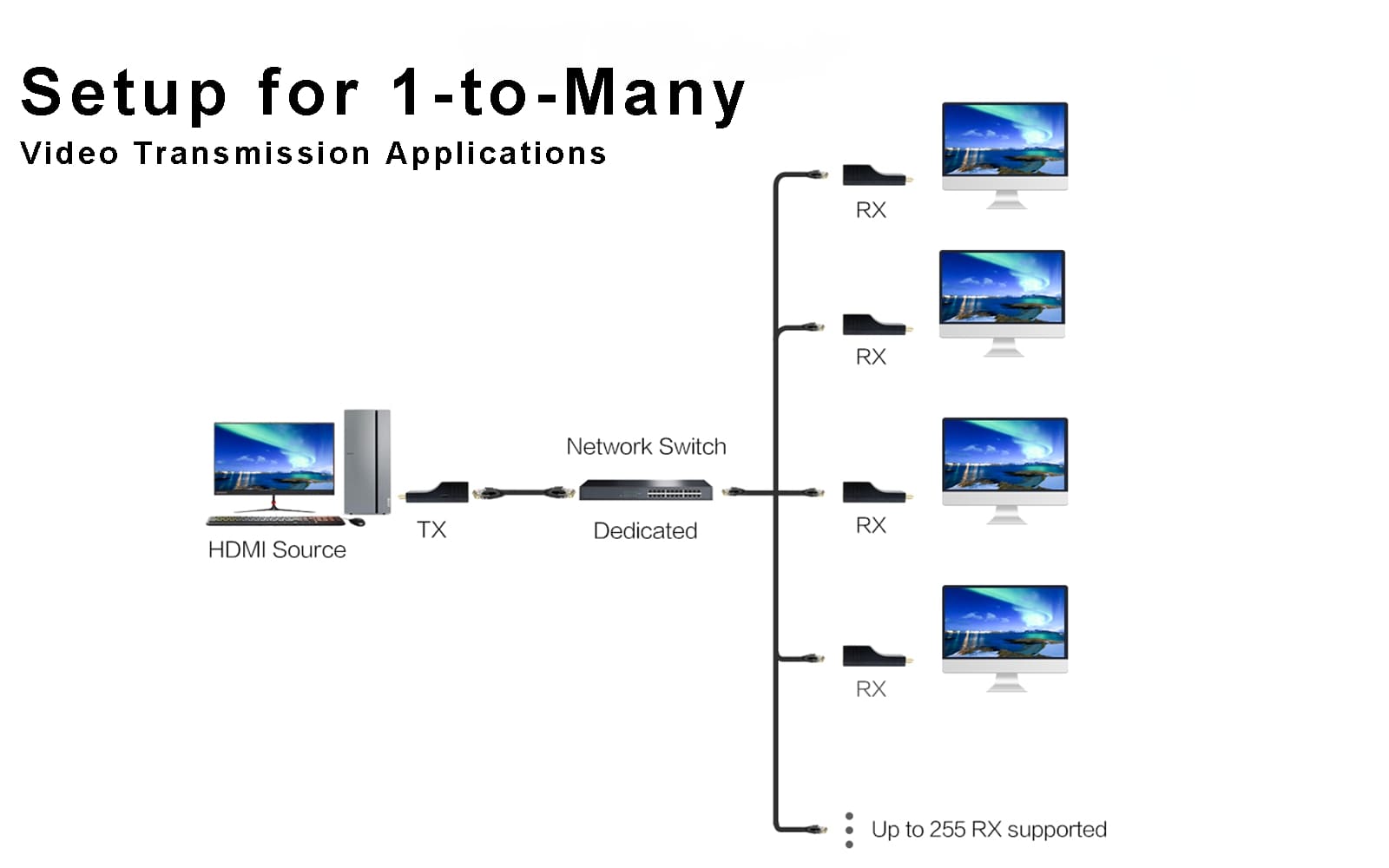

1-to-Many Video Broadcasting: Multiple RX receivers can be purchased separately to perform 1-to-many video broadcastting over the LAN. 1 TX transmitter supports up to 253 RX receivers(1-to-253 broadcasting).

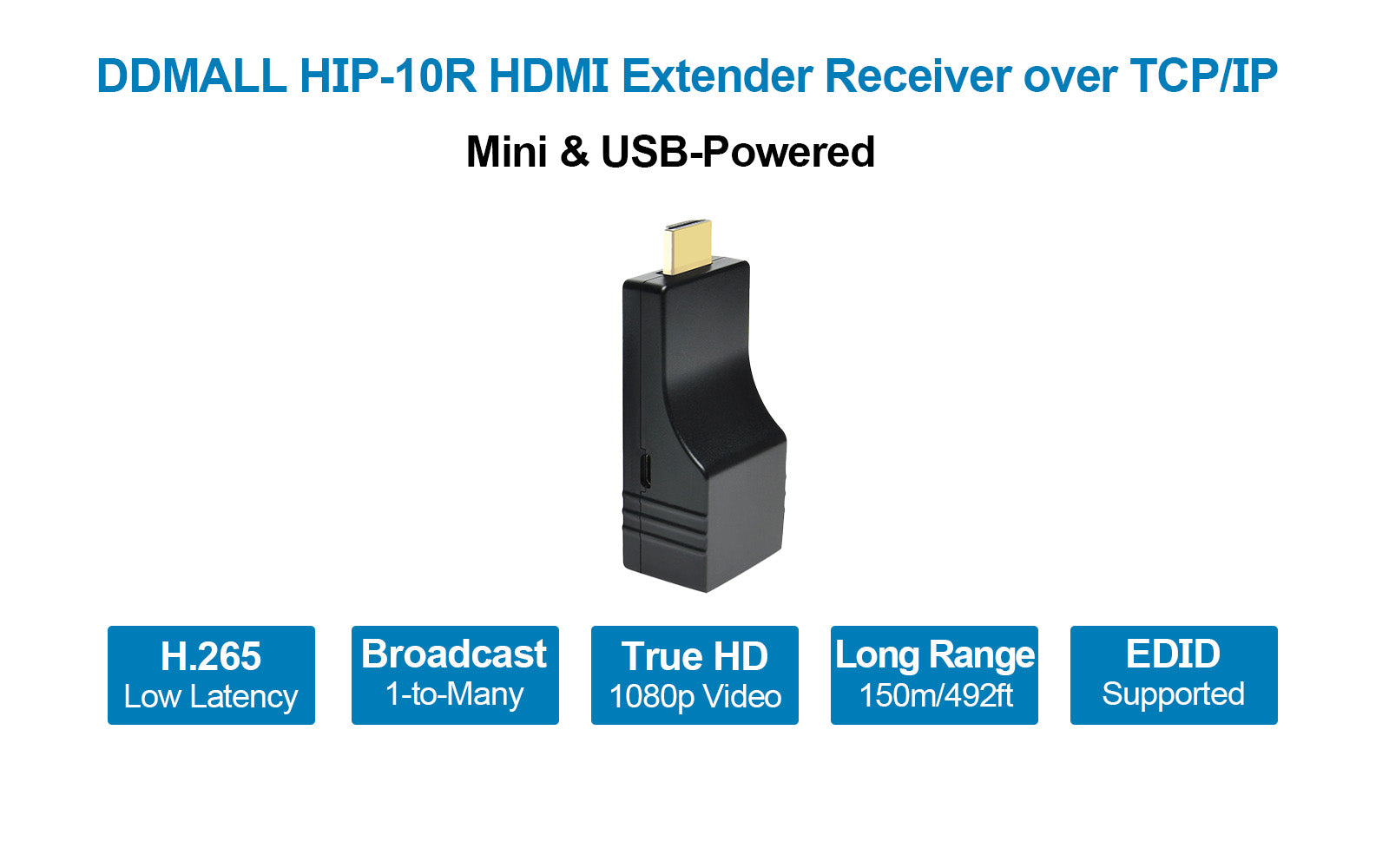

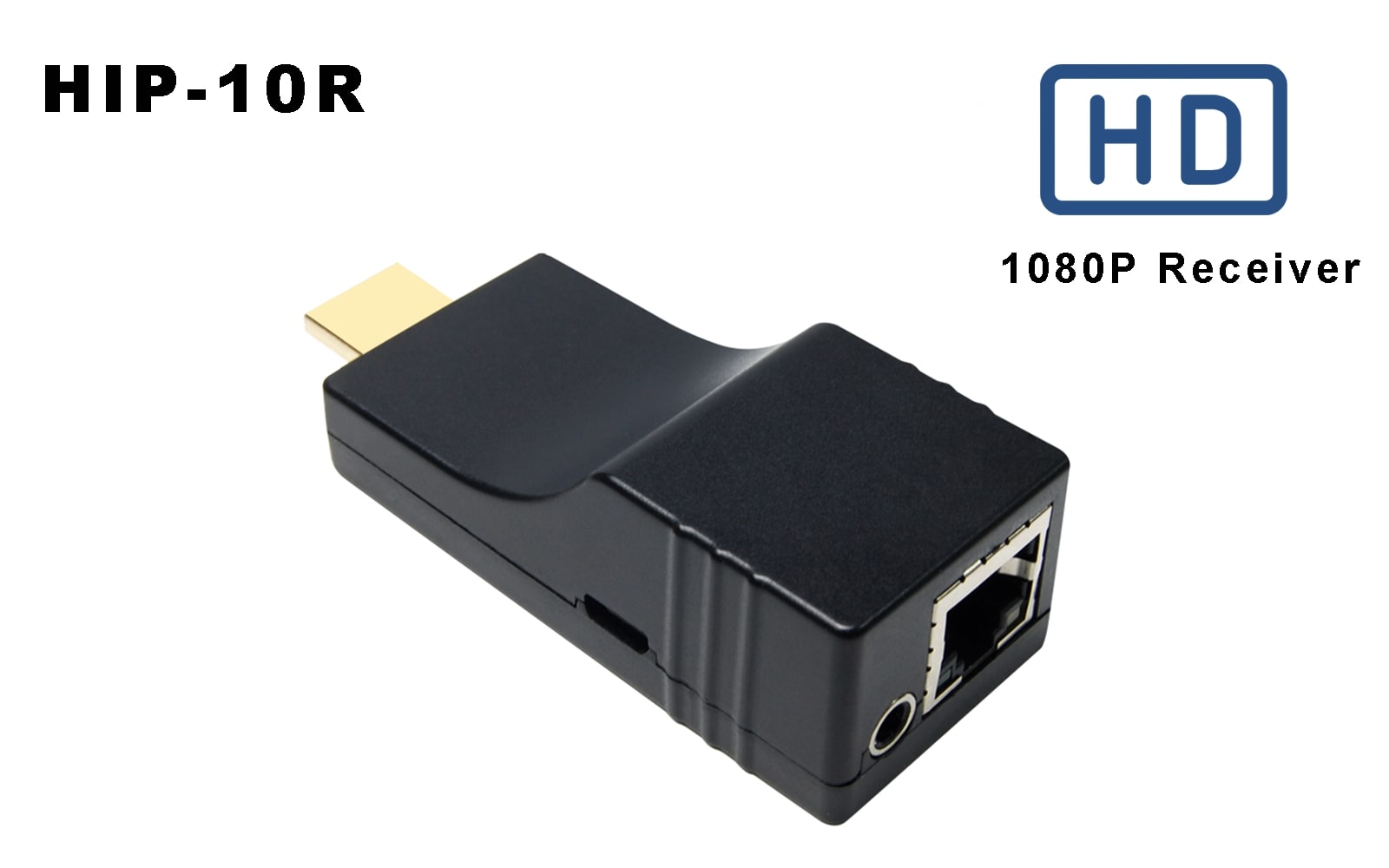

HIP-10R is the 2K HDMI extender receiver of HIP-10 with ultra-compact form factor. The HDMI over ethernet extender receiver is USB-powered and it accepts power from the USB port of display terminals. with HIP-10T, the HDMI receiver performs reliable video transmission solution in 1080P@60Hz with HEVC H.265 in as less as 0.08s delay. In 1-to-1 video transmission scenarios, the HDMI ethernet extender can be set up over single cat6 or cat7 with video transmission range up to 492ft/150m. In 1-to-Many(up to 253) video transmission mode, the TX transmitter and RX receivers are connected to the same switch over twisted-pair cables on the LAN to perform video transmission and broadcasting. Beyond that, as a HDMI over poweline video transmitter receiver, it can be set up on the existing power lines with the help of powerline adapter.
Set up with Powerline Adapter
Parameters
| Power Supply | DC 5V/1A(USB-Powered) | Power Consumption | 2.0W |
| Operate Temperature | -10℃~50℃ (14℉~122℉) | Operate Humidity | 10%-90%RH (non-condensing) |
| Network Mode | Static/DHCP | Work Mode | 1-to-1, Cascade, 1-to-many |
| Max, Transmission Range | 100m over Cat 6 cable | HDMI Input Resolution | 1080p@60/50/30Hz; 1080i@60/50Hz; 720p@60/50/30Hz |
| HDMI Output Resolution | 1080p@60Hz | HDMI Standard | HDMI 1.3, HDCP 1.2 |
| HDMI Connector | type-A male | Audio | Line in, Mic in, HDMI lpcm 2.0 |
| Transmission Protocol | IGMP | Dimension | 75mm(L)x32mm(W)x22mm(H) |
| Weight | 65g/pair | EDID |
Supported |
What's In The Box
1× HDMI Transmitter
1× HDMI Receiver
1× HDMI Male to Female Cable
1× HDMI Female to Female Adapter
2× 3M Double Sided Tape
1× Micro USB Power Cable
1× User Manual
Friendly Reminder
* For the best video quality and longer distance transfer, we recommend using high quality CAT5e/CAT6 cable.
* Please use unmanaged, dedicated network switch. Do not connect it to your standard routers.
