Overview
HD Transmission with196FT/60 Range: The HE-15IR HDMI video extender extends HDMI A/V signals to up to 196ft/60m in full HD 1920*1200@60Hz over one cat6/cat7 cable.
Zero Delay & Zero Loss: The HE-15IR HDMI transmitter receiver kit extends 1920*1200@60Hz video in zero delay without any loss of your video. It delivers your HD clear video in real time.
Plug and Play & IR Control: The HE-15IR HDMI extender kit over cat6 or cat7 can be easy set up. Both the TX transmitter and RX receiver are USB-powered. Plug and play. Support 20-60KHz wide-frequency IR control for easier management of your video transmission.
Multiple Audio Types Supported: The HE-15IR HDMI over cat extender kit support full range of audio types like Dobly TrueHD, DTS-HD Master Audio and LPCM7.1/DTS/Dobly-AC3/DSD.

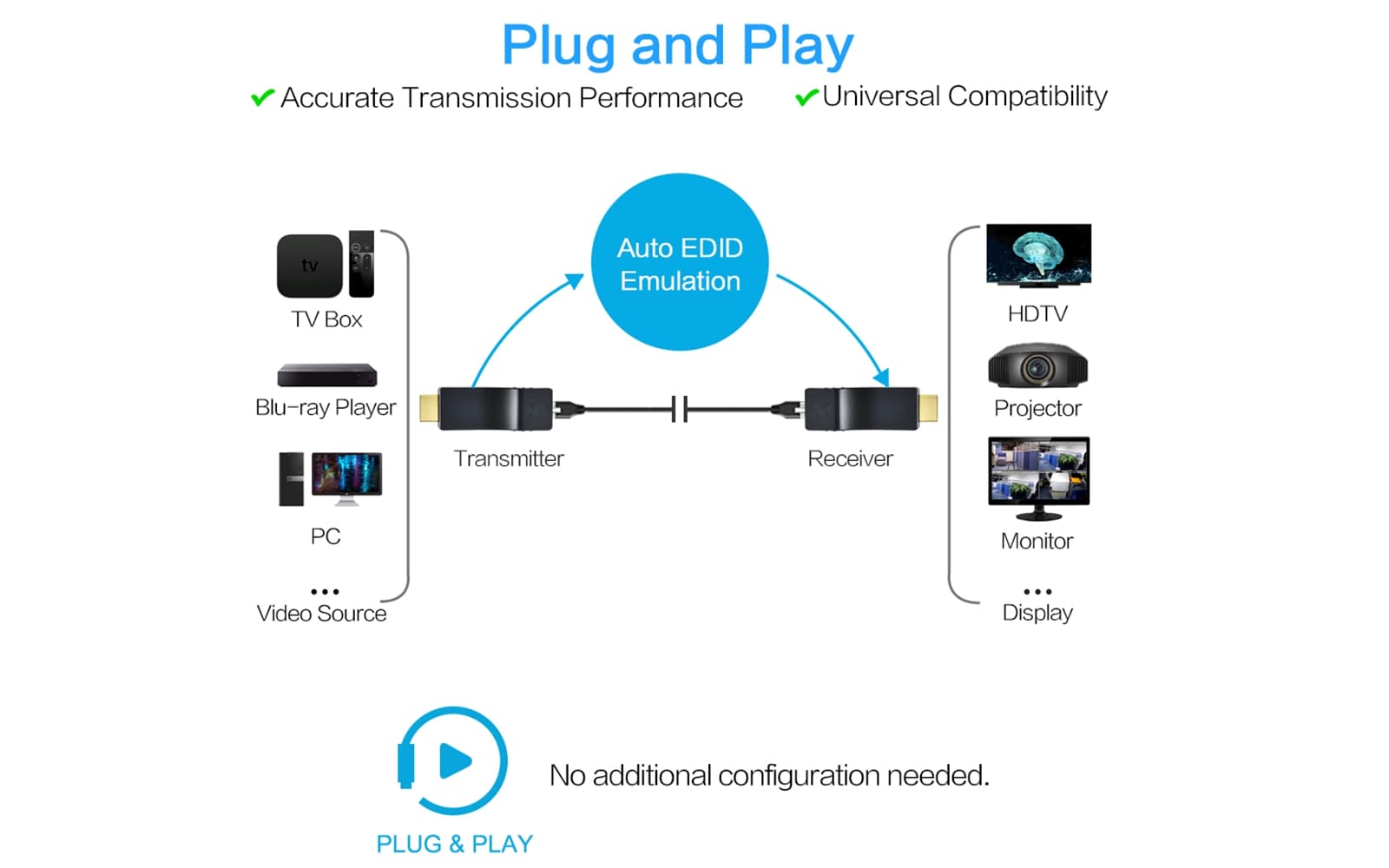

POC & EDID Supported: The HE-15IR HDMI extender kit supports POC so you only need to power the TX transmitter or the RX receiver. With built-in auto-EDID emulation technology, the HDMI video transmitter allows to copy EDID information for the EDID compliant displays to ensure accurate display performance.
The DDMALL HE-15IR HDMI extender kit extends video and audio from your HDMI source to a remote display with range up to 196ft/60m over a single cat6/cat7 cable. The transmitter and receiver pair allows full HD HDMI signal up to 1920*1200@60Hz to pass through with zero delay and zero compression without any signal loss. The HDMI IR video extender is USB-powered and supports POC for easily power suply. It supports IR control. Plug and play with setup-free.

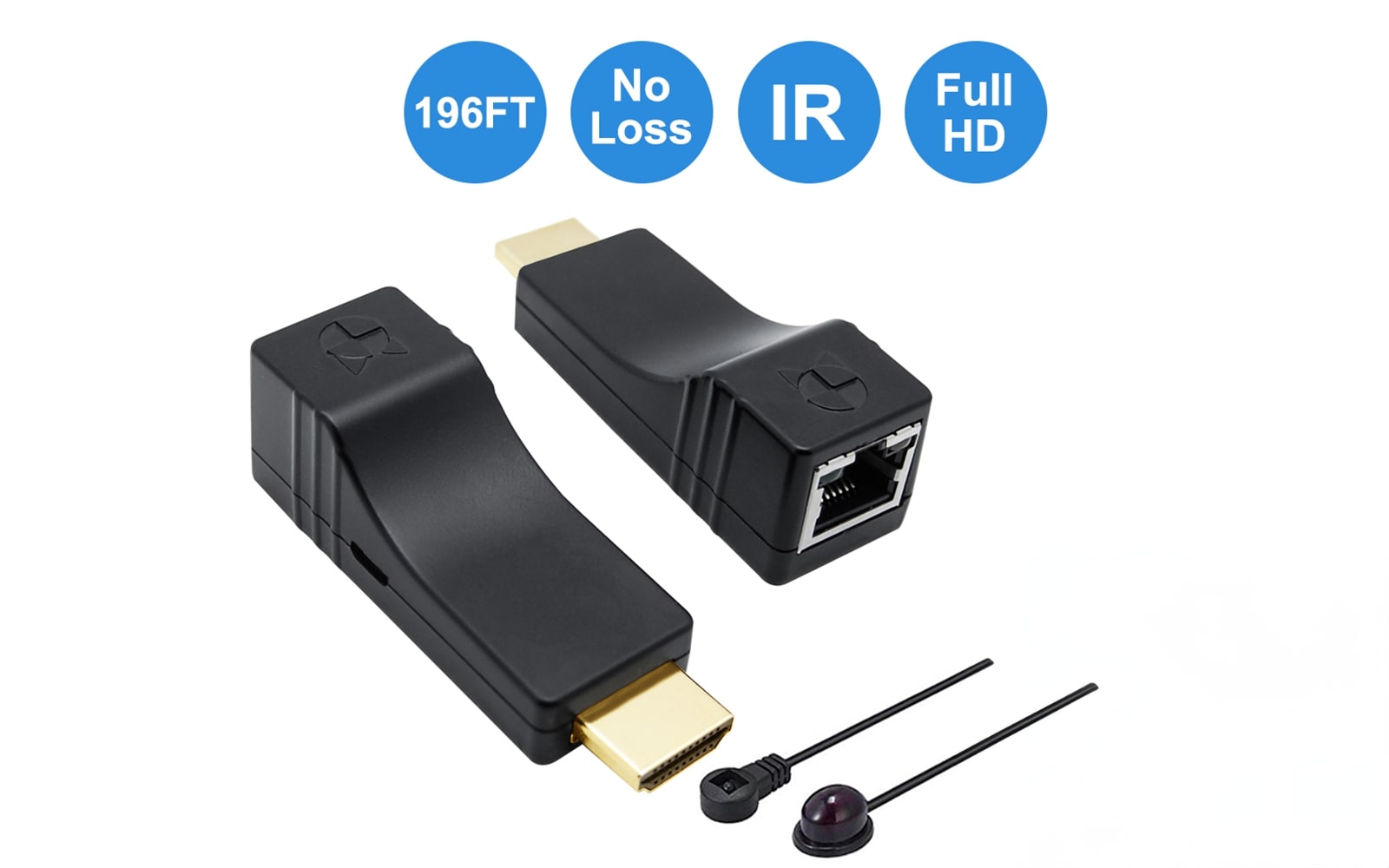

DDMALL 196ft 1080P HDMI Extender with IR Remote
Long Video Transmission Range

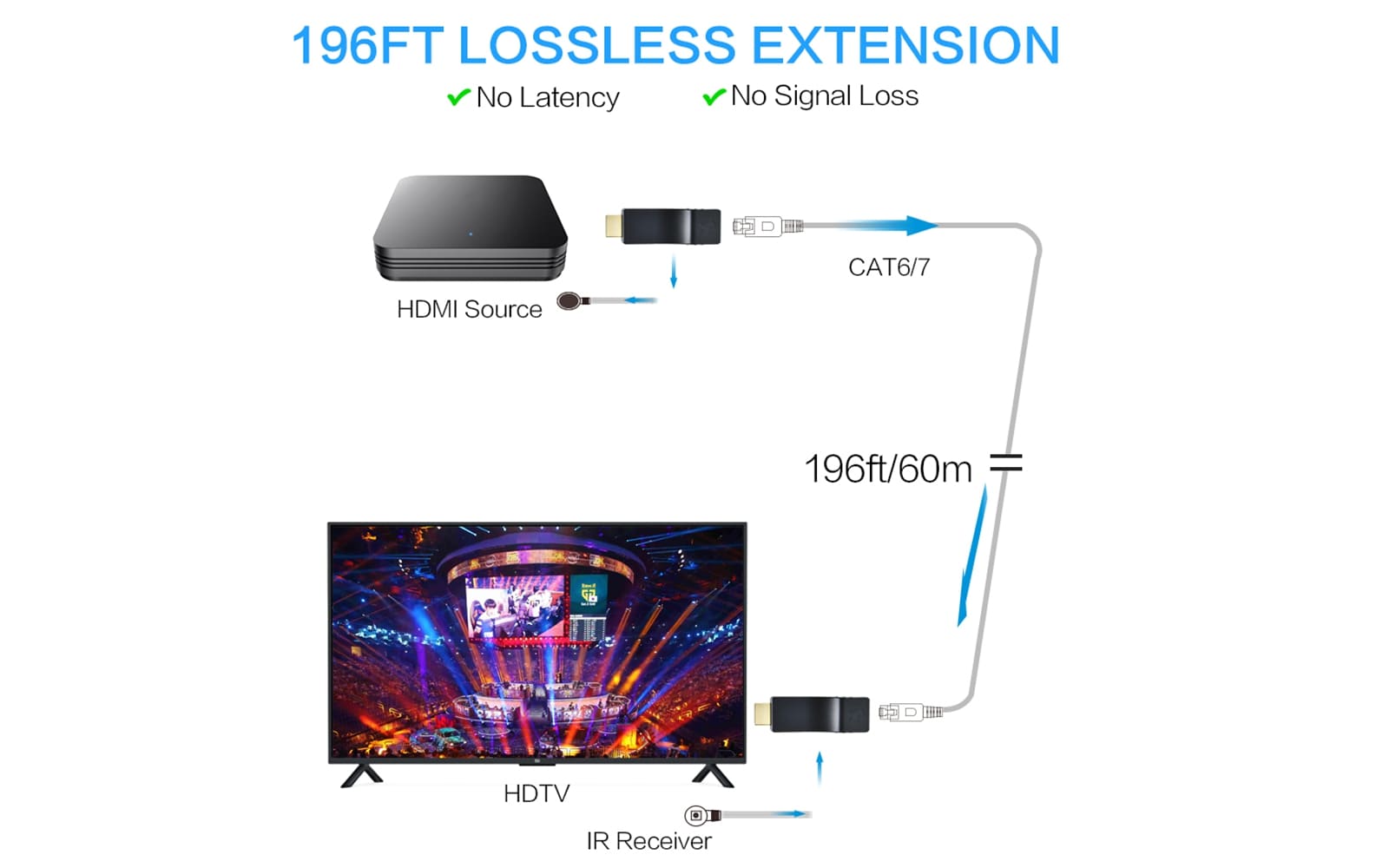

The DDMALL HE-15IR HDMI IR extender extends signal from a HDMI source to a display up to 196ft/60m in Full HD over a single CAT6/7 cable with zero signal loss in zero delay.

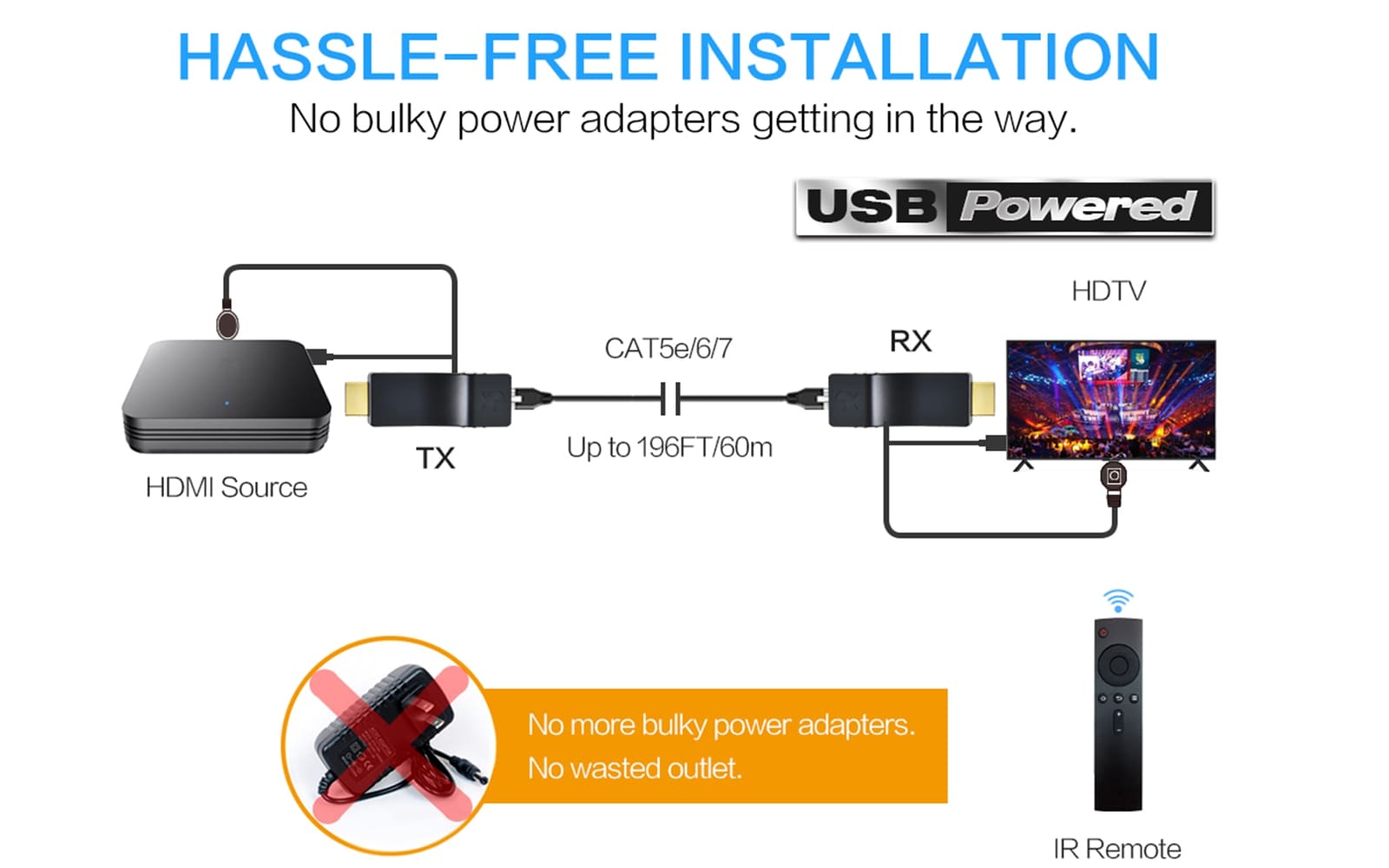

Easy Installation
Compact form factor makes the HDMI IR transmitter receiver kit easily to plug to your laptop, media player, projector without extra HDMI cable. The RX receiver can be hidden in the back of projector, TV and powered by the nearby USB port. No adapter is needed.
Key Features

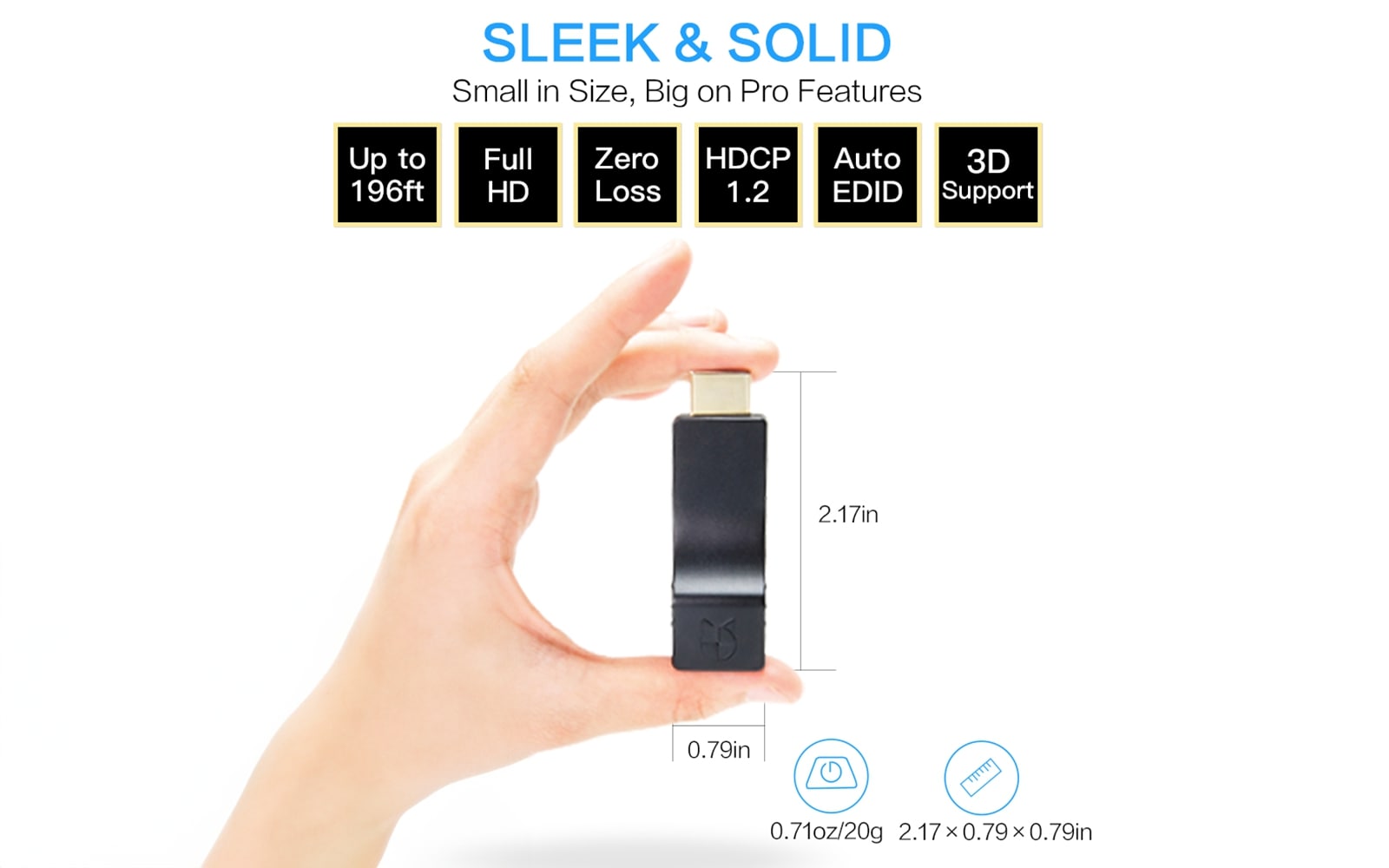

• Ultra-mini size and ultra-lightweight- super easy to install.
• Video transmission range is up to 196ft/60m in HD over a single CAT6/7 cable.
• Simply plug and play, and no setup is required.
• No signal loss with zero compression in real-time transmission.
• USB-powered. No power adapter is needed.
• Support 3D.
• All-in-one design. No extra HDMI cable is needed.
• Durable quality: support 24/7 working.
Specifications
• Extension Range: Max. 196FT/60m in full HD
• Max. Supported Resolution: 1920×1200@60Hz; support 3D
• HDMI 1.4 & HDCP 1.2 Compliant
• Power Consumption: 1.7W; support 24*7 working
• Support 20~60KHz wide frequency IR remote control
• Support full range of HDMI HD audio types like Dobly TrueHD, DTS-HD Master Audio, and LPCM7.1/DTS/Dobly-AC3/DSD
• Deep Color 36-bit
• Auto EDID Management
• Compatible with various devices, such as set-top boxes, blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.

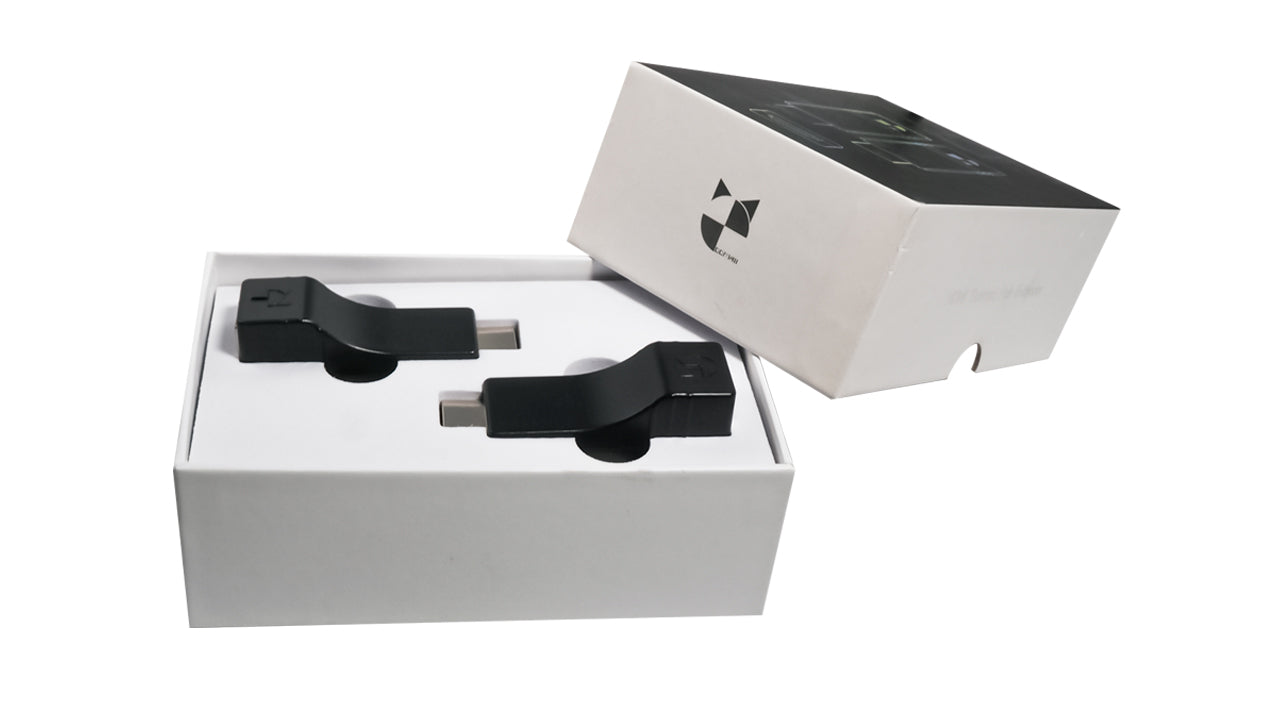

What's in the Package
• 1× HDMI Transmitter,
• 1× HDMI Receiver
• 1× IR Blaster, 1× IR Receiver
• 2× Micro USB to IR and Power Cables
• 1× User Manual
