Overview
HIPM: The HDMI over IP extender matrix with scattered HDMI transmitters and receivers conducts vide extension, distribution, switching, and broadcasting in LAN.
H.265 HDMI Transmitter Matrix: With built-in H.265 technology, video transmission can be conducted in nearly zero delay with HDMI input resolution up to 1080@60Hz and HDMI output up to 1080p.

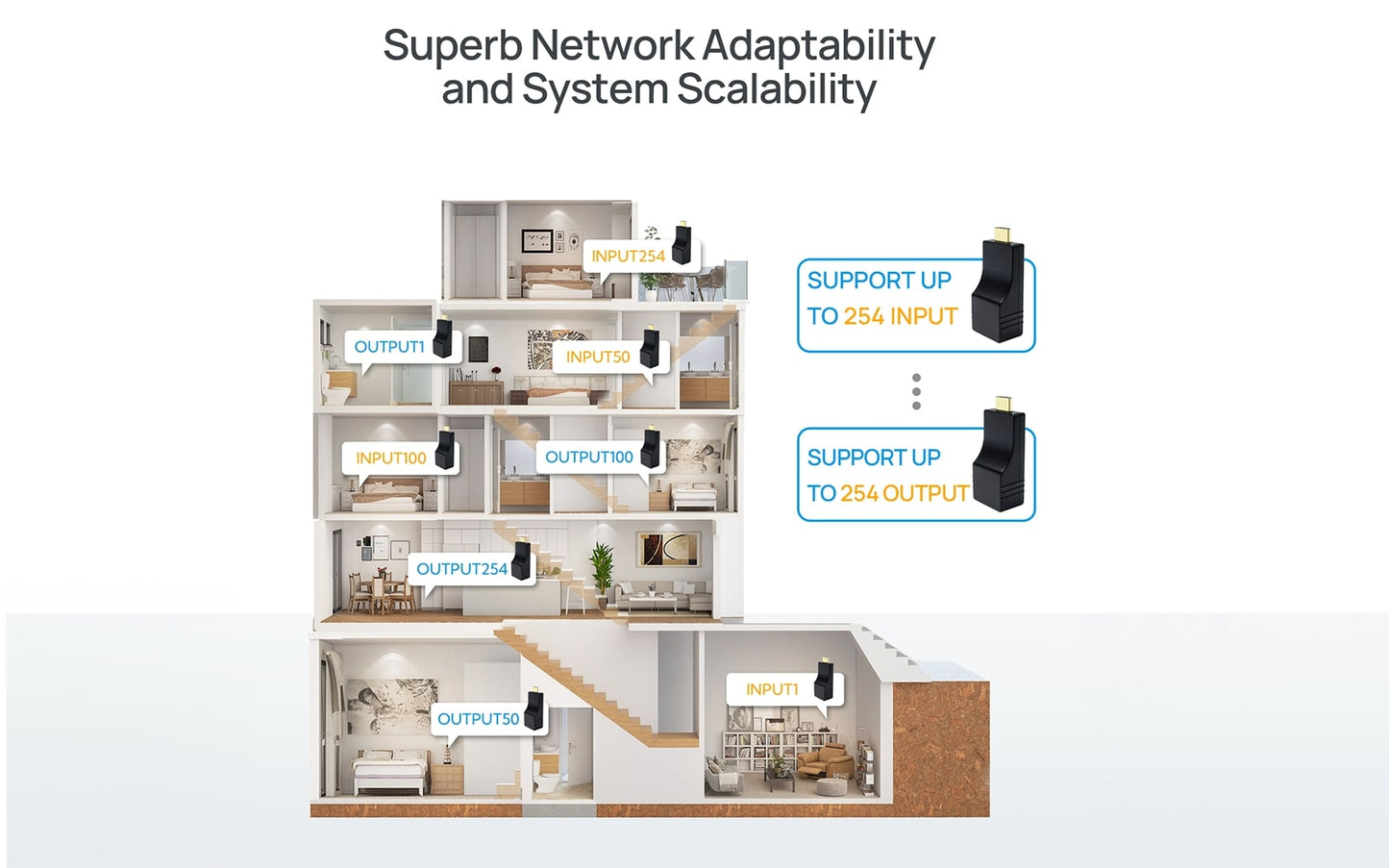

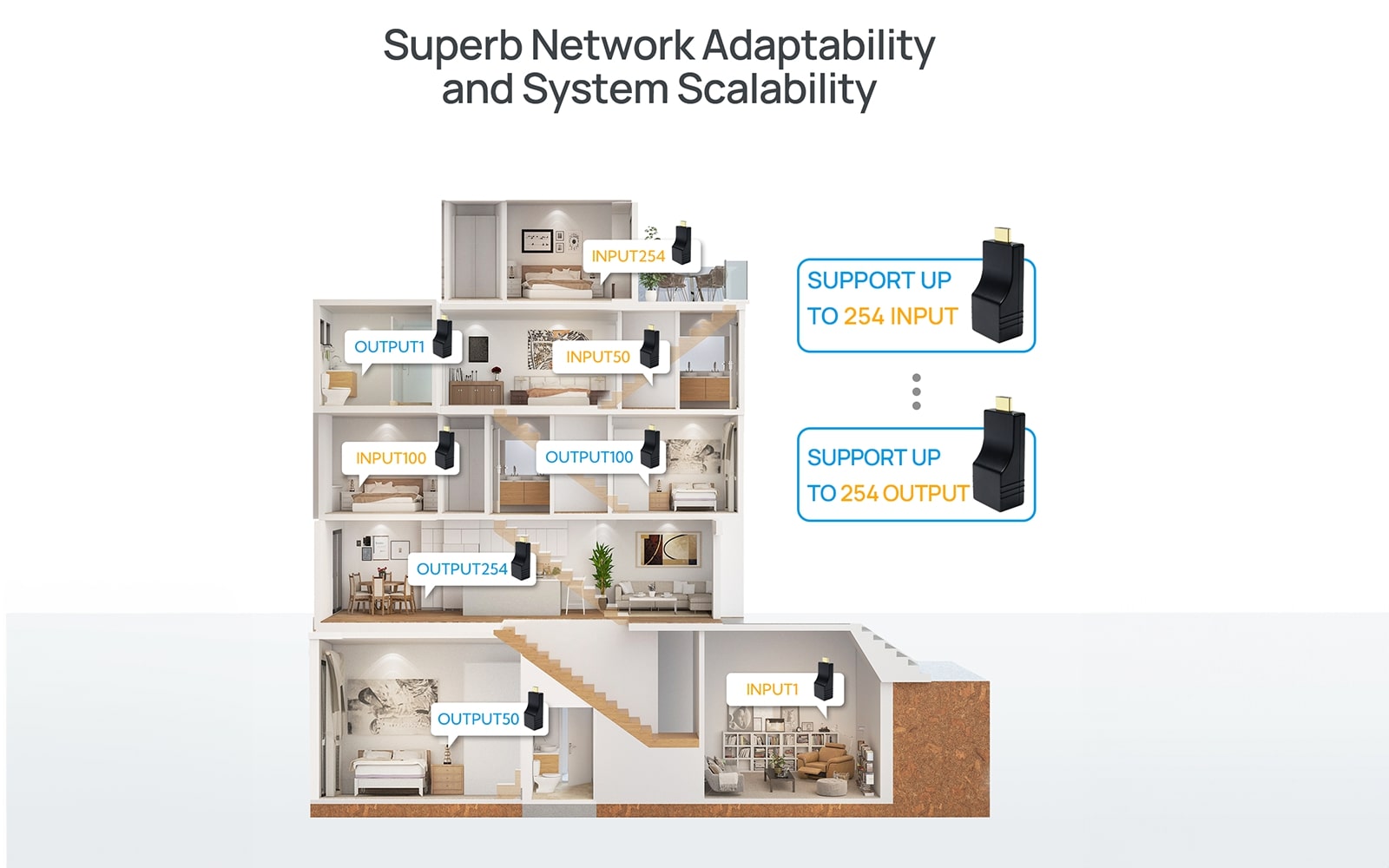

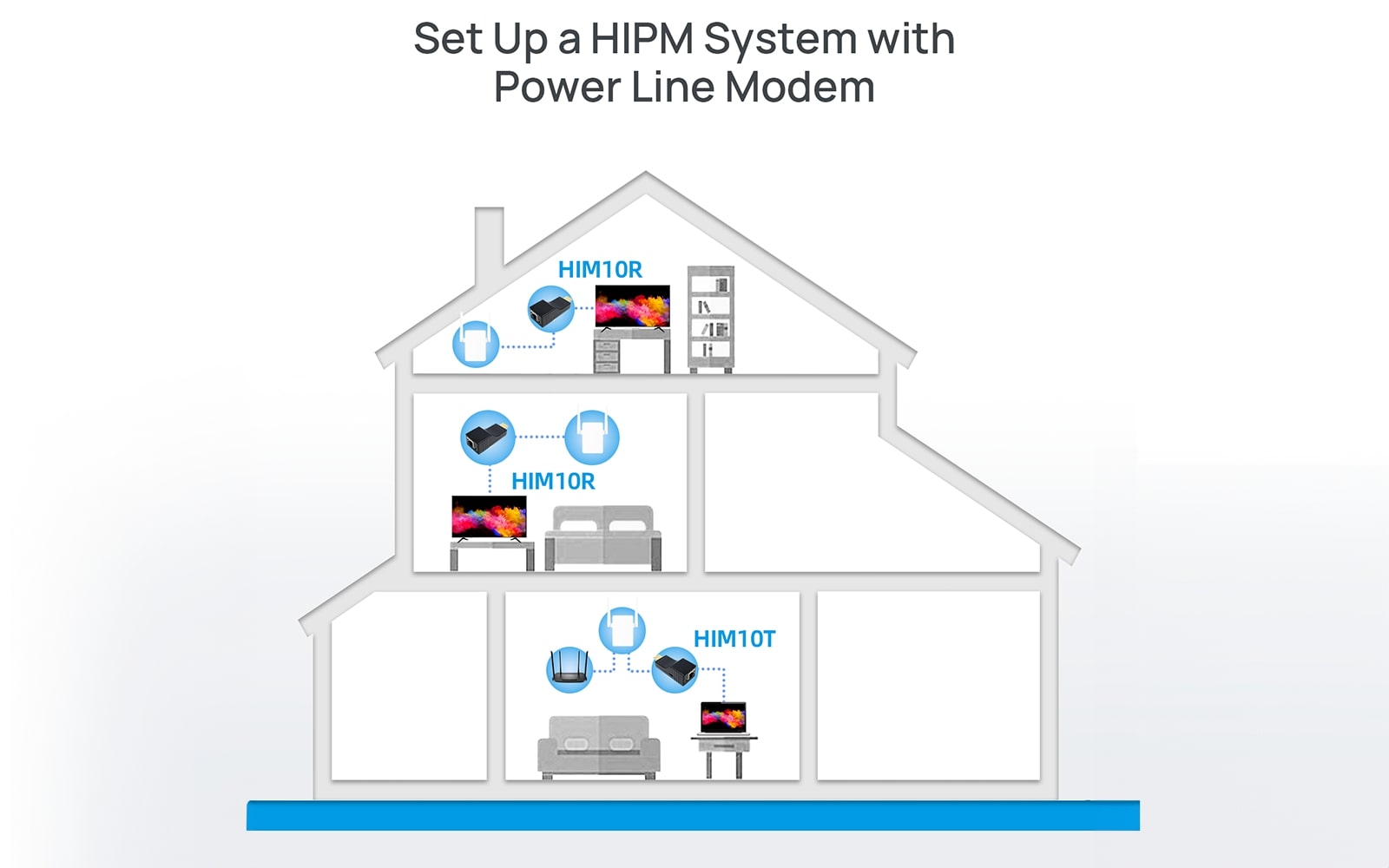

LAN-Based HDMI Video System: Each video system support up to 254 HIPM transmitters and up to HIPM 254 receivers in LAN with the help of switch or powline adapter. Users are granted the freedom of system expansion by adding the numbers of HDMI transmitters or receivers to perform 1-to-many, many-to-1, or many-to-many video distribution and broadcasting.

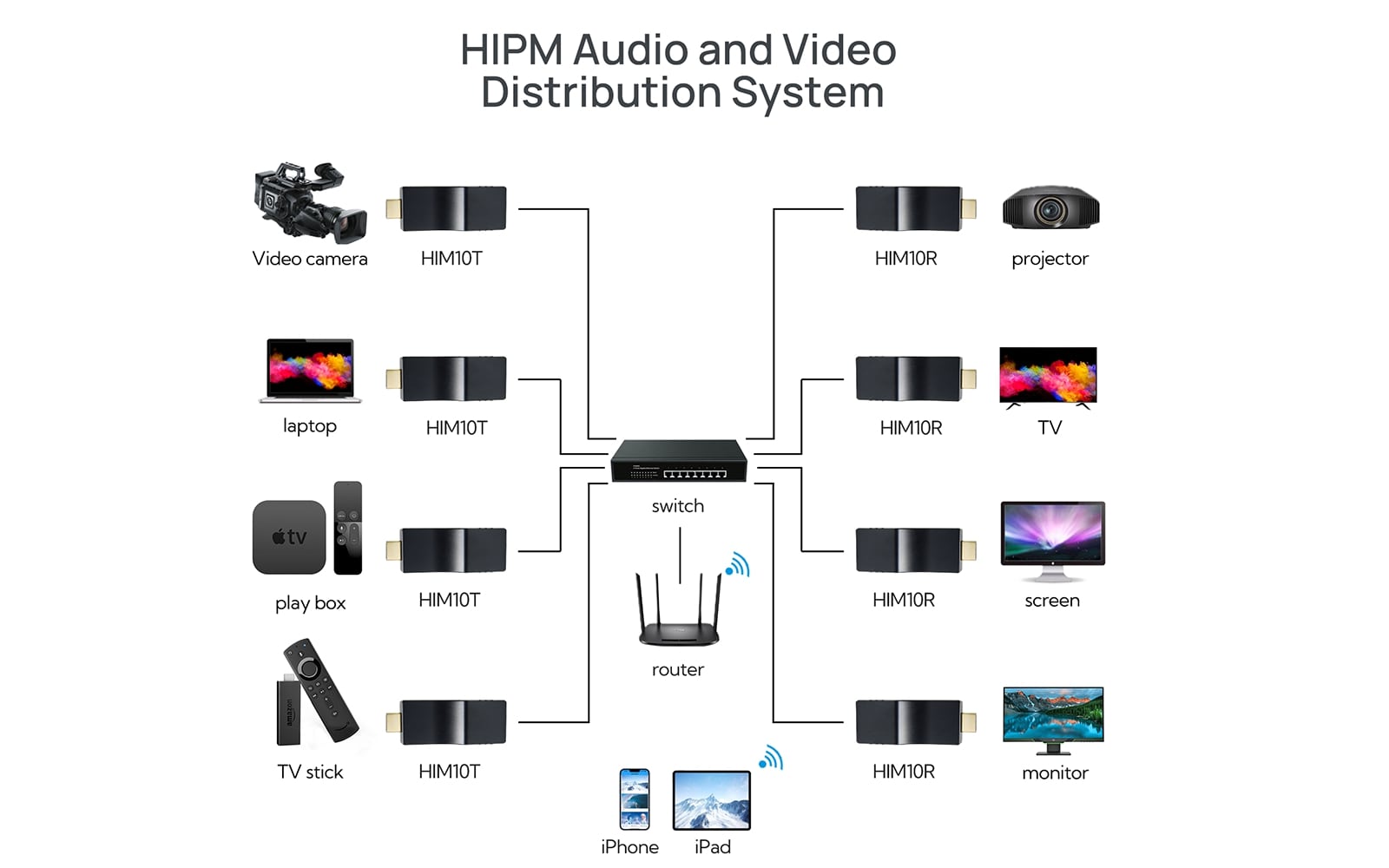

Easy System Setup: The TXs connect to signal sources such as computer, camcorder, set top box, HD players, NVR, DVD, game consoles, Blu-ray players etc. while the RXs connect to display terminals such as TV, monitor, projectors, multi-screens, large screens etc. All TXs and RXs interact and communicate with each other in LAN to transmit any A/V signal to any display terminal as you wish. USB-powered so each TX or RX can take power from the HDMI ports s directly or be powered by USB connection.
Easy System Management: The dedicated web UI/Device button/iOS APP helps users manage the video system in a unified manner. You can categorize the TXs and RXs, set permissions of different users for collaborative management of the video systems, preview and monitor the system via the APP, and switch any of the transmitter signals to any of the reciever monitors for display.

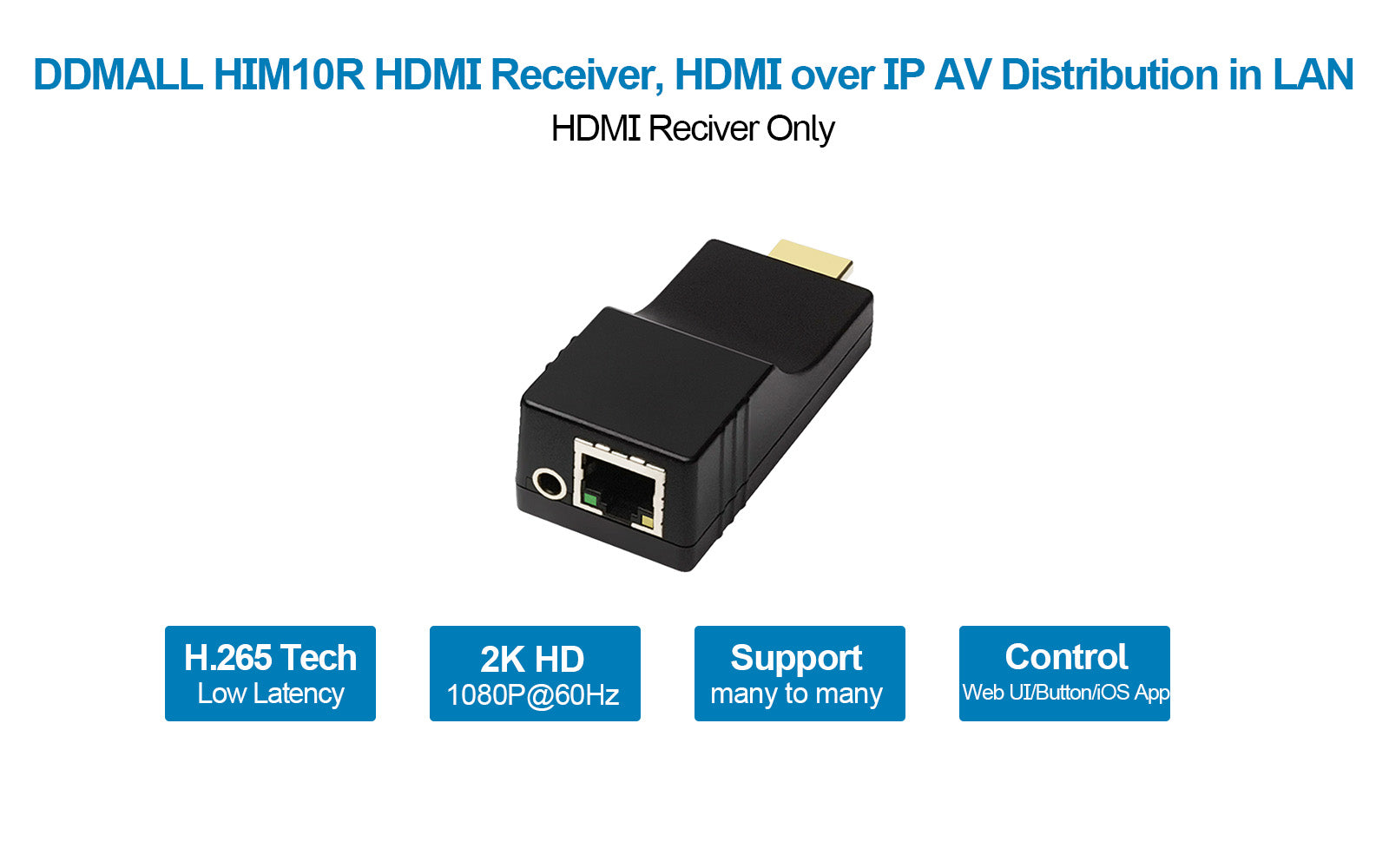

The HIM10 (HDMI over IP Matrix) is a LAN-based high flexible distributed HDMI audio video distribution system with stream media as the core. The H.265 extender matrix performs 2K audio video transmission, distribution and live broadcasting in LAN. Each HDMI extender matrix supports up to 254 transmitters and up to 254 receivers. Users can switch any TX signal to any RX receiver for display via device button/web UI/ios APP. This distributed HDMI over IP matrix switch is perfect for those applications that have scattering installation sites and need unified management of all the distributed AV systems.
Visible Video Preview
You can perform input and output video preview via iOS APP in a simple manner. You can drag and drop the videos to adjust the video sending and display relationship.
Group Management
A HIPM system can be categorized into multiple HIPM subsystems. Each subsystem can be managed as independent group.
Multi-user Sub-Authority Management
multiple users can collaboratively manage the HIPM system via permission setting.
Home Audio and Video Program Sharing
The HIPM system help you to integrate all HDMI AV devices such as laptops, iPads, play boxes, roku, amazon TV sticks etc. into same system for unified management. It can distribute any program source to the TV in each room for display and each room can also freely choose any program source for watching.
Reminder

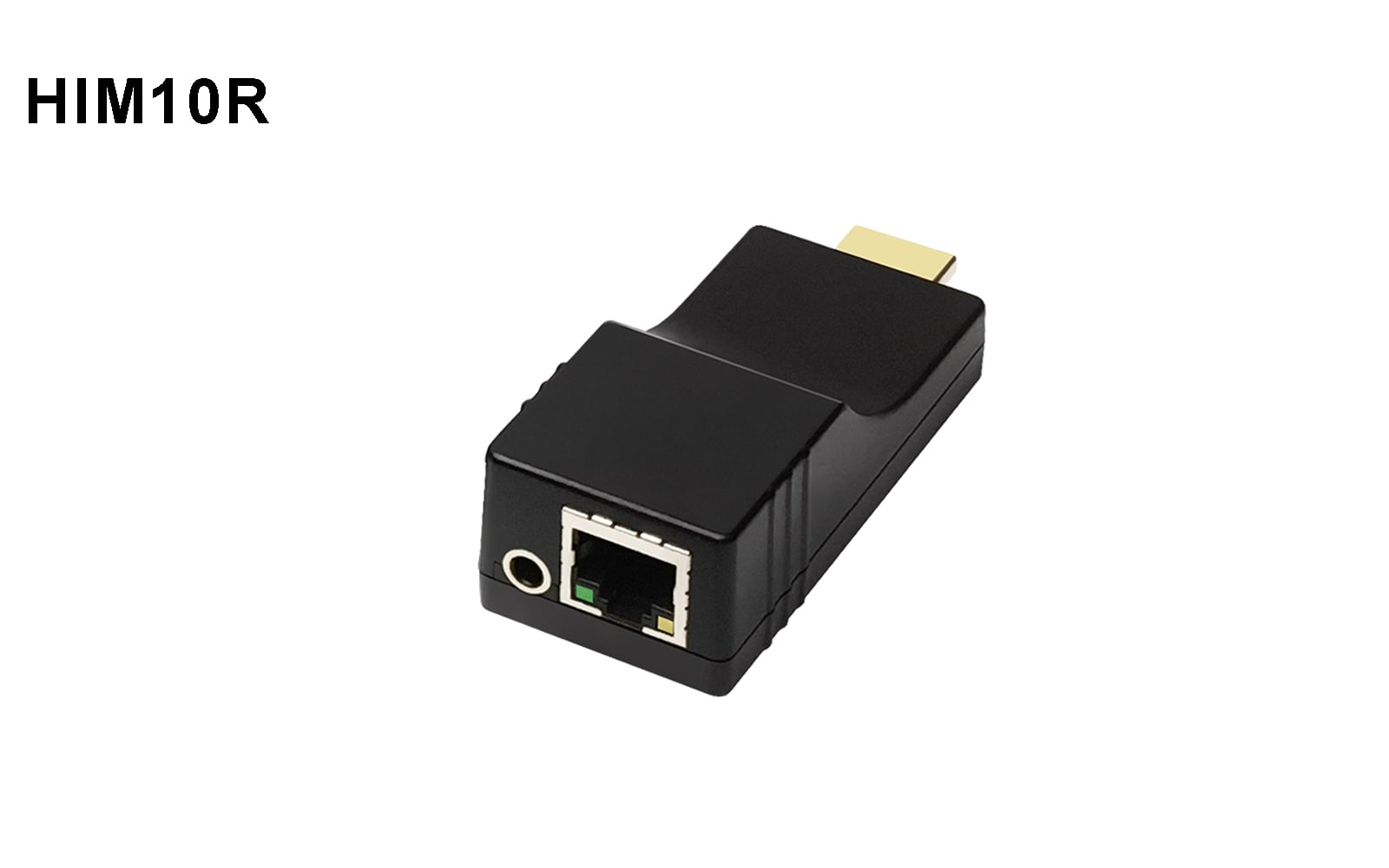

The HIPM is a HDMI over IP extender matrix system. You can add different styles of HIPM TXs and RXs to realize 2K or 4K video transmission and distribution. We list the parameters of HIM10T and HIM10R for example as follow. If you wish for a style with other functions, please contact us.
|
Description |
Transmitter (TX) |
Receiver (RX) |
|
Image |
|
|
|
Style |
HIM10T |
HIM10R |
|
Power Supply |
5V/1A USB-powered |
5V/1A USB-powered |
|
Power Consumption |
2.5W |
2.5W |
|
Work Temperature |
-10~50℃ （14~122℉） |
-10~50℃ （14~122℉） |
|
Storage Temperature |
-20~85℃ （-4~185℉） |
-20~85℃ （-4~185℉） |
|
Work Humidity |
10%- 90%RH (Non-condensing) |
10%- 90%RH (Non-condensing) |
|
Weight |
32g/0.07lbs |
32g/0.07lbs |
|
Dimension |
75*32*22mm/2.95*1.26*0.87” |
75*32*22mm/2.95*1.26*0.87” |
|
MTBF(mean time between failures) |
30,000h
|
30,000h
|
|
Singal Input |
HDMI 1.3 (HDCP1.4 compatible) |
HDMI 2.0 |
|
Input Resolution |
1080p@60Hz,1080p@50Hz,1080p@30Hz, 1080i@60Hz,1080i@50Hz, 1080i@30Hz ,720p@60Hz, 720p@50Hz |
/ |
|
Codec |
H.265 |
H.265 |
|
Output Resolution |
1280*720，1920*1080 |
4096×2160P@60/50/30/25/24Hz 3840×2160P@60/50/30/25/24Hz |
|
Audio Input |
HDMI, Mic in, Line in |
HDMI, line Out |
|
Audio Codec |
AAC |
AAC |
|
Audio Bitrate |
64kbps~256Kbps |
64kbps~256Kbps |
