Overview

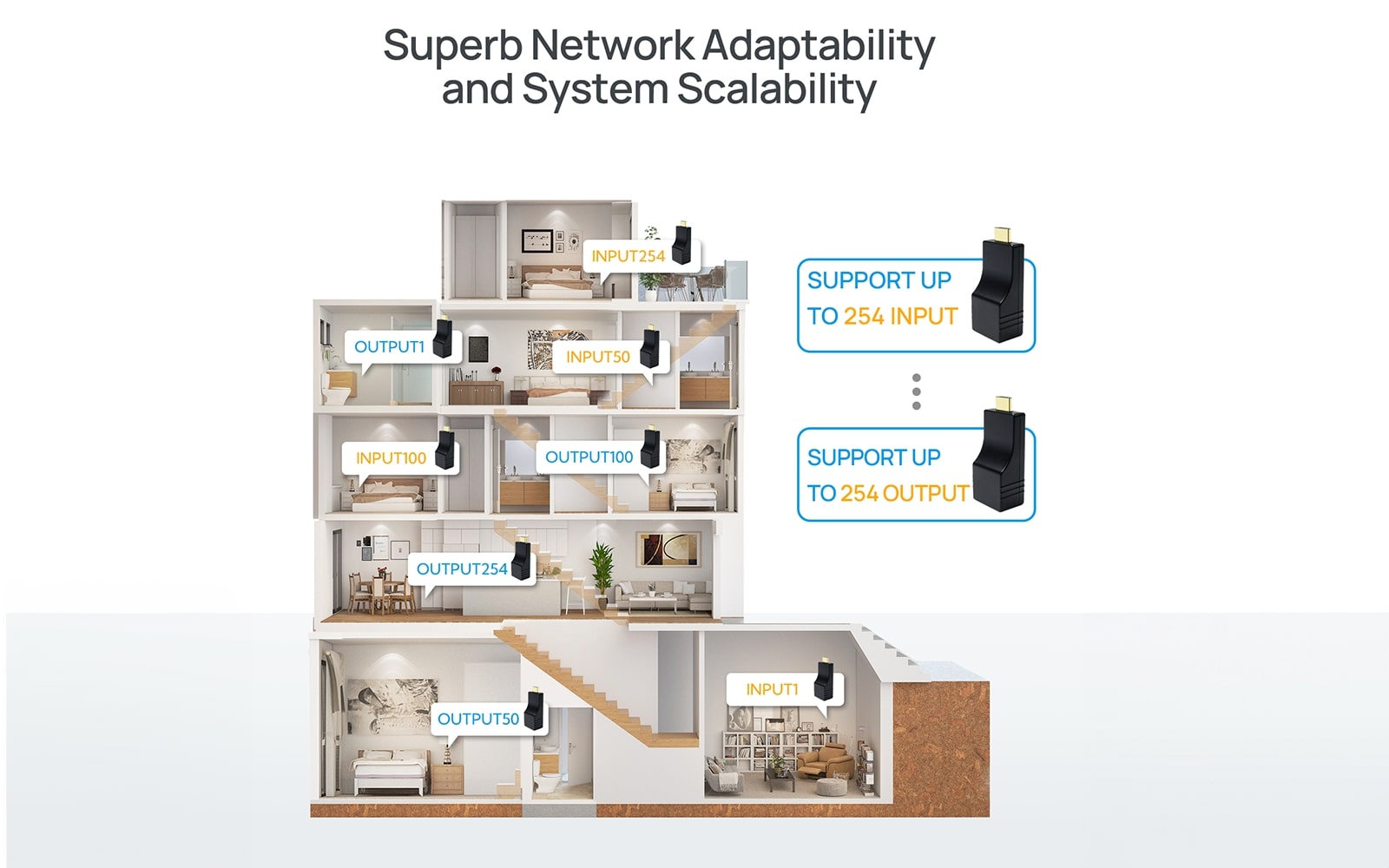

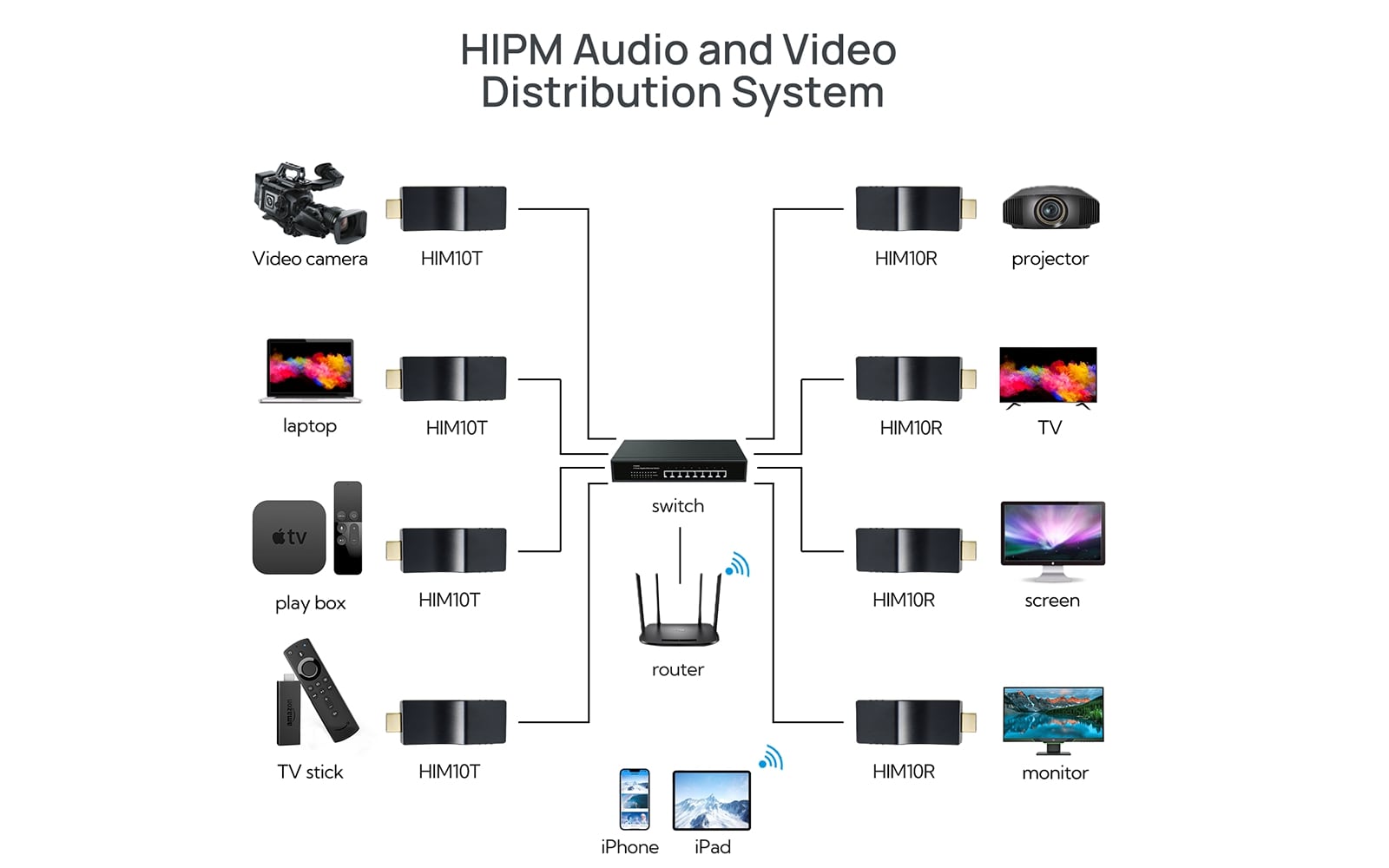

HIPM(HDMI over IP Matrix) is a LAN-based high flexible distributed HDMI audio video distribution system with stream media as the core. The H.265 extender matrix processes 2K or 4K audio video transmission, distribution and live broadcast based on LAN. The transmitter and receiver matrix is comprised of multiple TXs (up to 254) and RXs (up to 254). The TXs connect to signal sources such as computer, camcorder, set top box, HD players, NVR, DVD, game consoles, Blu-ray players etc. while the RXs connect to display terminals such as TV, monitor, projectors, multi-screens, large screens etc. All TXs and RXs interact and communicate with each other on LAN to transmit any A/V signal to any display terminal as you wish. with our HIPM switch matrix, you can easily transmit and distribute your video in an easy manner.
The HIPM (HDMI over IP Matrix) is a LAN-based high flexible distributed HDMI audio video distribution system with steam media as the core. The H.265 extender matrix performs 2K or 4K audio video transmission, distribution and live broadcast based on LAN with up to 254 transmitters and up to 254 receivers in the same HIPM system. Users can switch any TX signal to any RX receiver for display via device button/web UI/ios APP. This distributed HDMI over IP matrix switch is perfect for those applications that have scattering installation sites and need unified management of all the distributed AV systems.

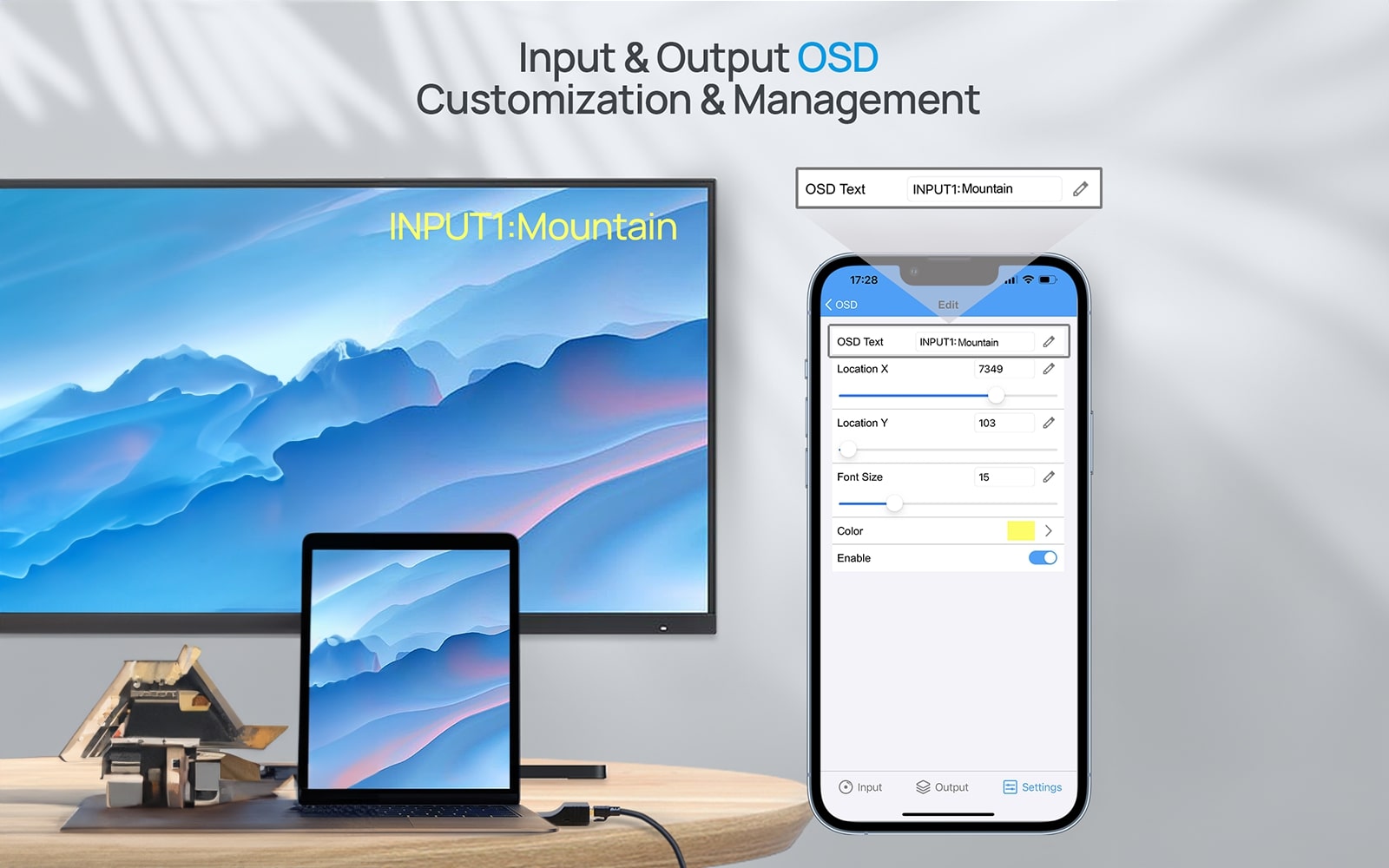

Visible Video Preview
You can perform input and output video preview via iOS APP in a simple manner.
Group Management
A HIPM system can be categorized into multiple HIPM subsystems. Each subsystem can be managed as independent group.
Multi-person Sub-Authority Management
multiple persons can collaboratively manage the HIPM system via permission setting.
Home Audio and Video Program Sharing
Integrate the program source devices such as laptops, iPads, play boxes, roku, amazon TV sticks etc. at home, and distribute any program source to the TV in each room for display and each room can also freely choose any program source for watching.

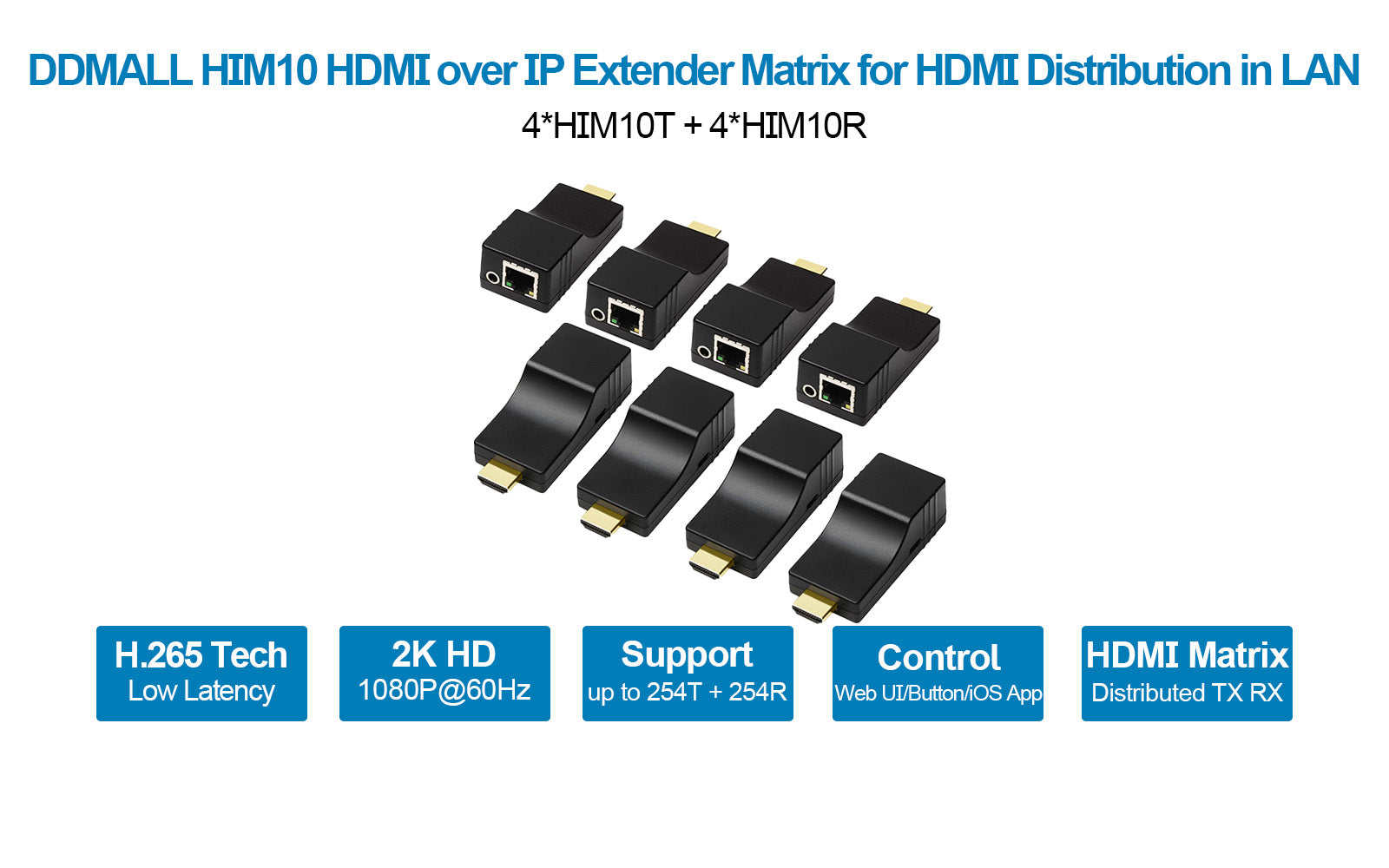

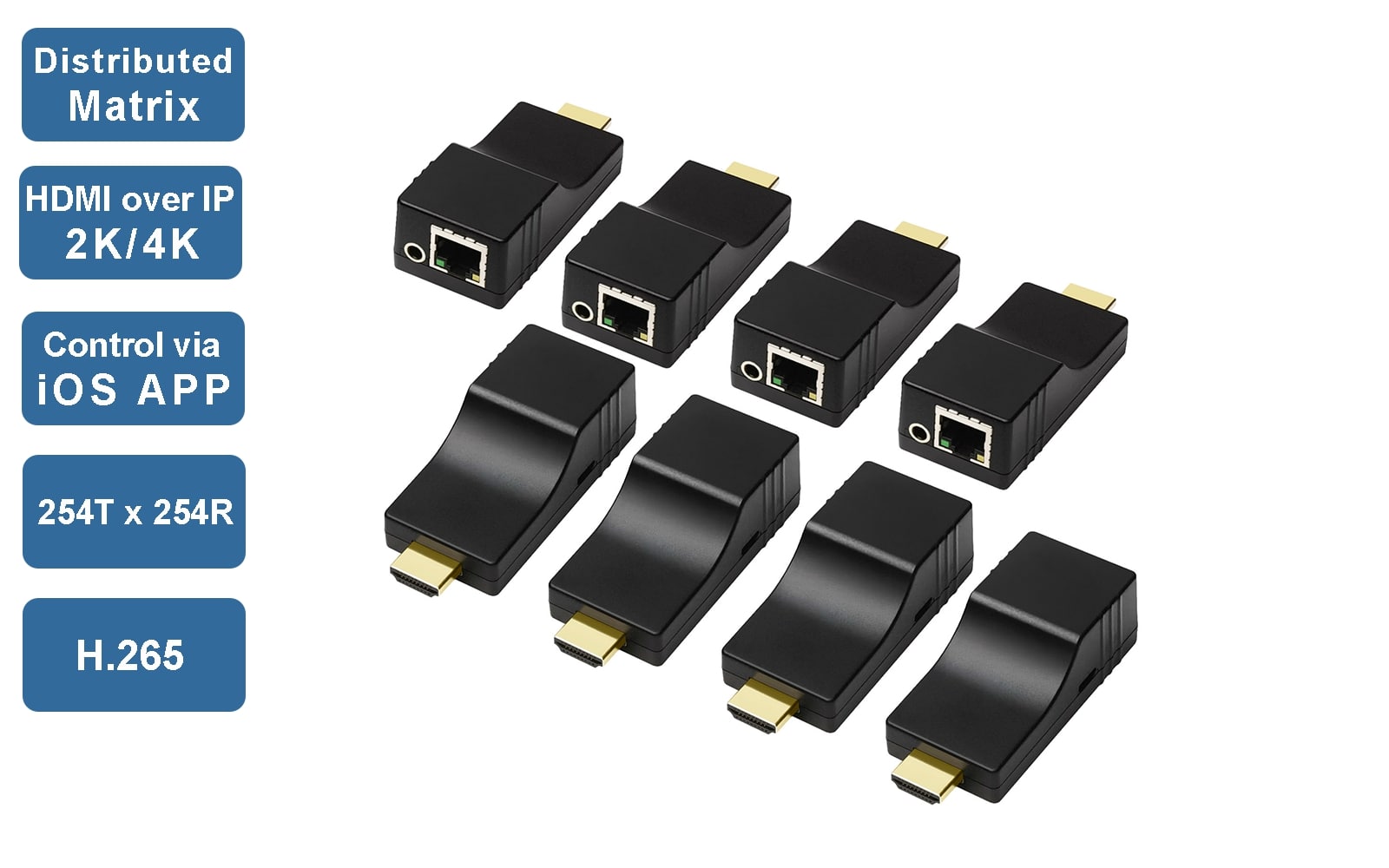

Packing List
4 * HIM10T
4 * HIM10R
8 * Micro USB cable
8 * HDMI male to female cable
8 * HDMI female to female adapter
8 * HDMI male to female adapter (90°)
Reminder
The HIPM is a HDMI video over IP matrix system, you can add different styles of HIPM TXs and RXs to realize 2K or 4K video transmission and distribution. We will list the parameters of HIM10T and HIM10R for example as follow. If you wish for a style with other functions, please contact us.
|
Description |
Transmitter (TX) |
Receiver (RX) |
|
Image |
|
|
|
Style |
HIM10T |
HIM10R |
|
Power Supply |
5V/1A USB-powered |
5V/1A USB-powered |
|
Power Consumption |
2.5W |
2.5W |
|
Work Temperature |
-10~50℃ （14~122℉） |
-10~50℃ （14~122℉） |
|
Storage Temperature |
-20~85℃ （-4~185℉） |
-20~85℃ （-4~185℉） |
|
Work Humidity |
10%- 90%RH (Non-condensing) |
10%- 90%RH (Non-condensing) |
|
Weight |
32g/0.07lbs |
32g/0.07lbs |
|
Dimension |
75*32*22mm/2.95*1.26*0.87” |
75*32*22mm/2.95*1.26*0.87” |
|
MTBF(mean time between failures) |
30,000h
|
30,000h
|
|
Singal Input |
HDMI 1.3 (HDCP1.4 compatible) |
HDMI 2.0 |
|
Input Resolution |
1080p@60Hz,1080p@50Hz,1080p@30Hz, 1080i@60Hz,1080i@50Hz, 1080i@30Hz ,720p@60Hz, 720p@50Hz |
/ |
|
Codec |
H.265 |
H.265 |
|
Output Resolution |
1280*720，1920*1080 |
4096×2160P@60/50/30/25/24Hz 3840×2160P@60/50/30/25/24Hz |
|
Audio Input |
HDMI, Mic in, Line in |
HDMI, line Out |
|
Audio Codec |
AAC |
AAC |
|
Audio Bitrate |
64kbps~256Kbps |
64kbps~256Kbps |
