Overview

Pure FPGA Hardware & Rack-Moutable: Built-in FPGA hardware technology, the AGT-M-4 edge blending processor features in 1U standard metal chassis, easy installation with industrial image blending capability.

HD Qaud-View: 1* Dual-Link input and 4* DVI outputs, the processor allows UHD signals sources passing through, and four images display in quad-view screen; with 4 outputs, it meets the applications for 4-channel projections.

Robust Image Processing: Arbitrary warp engine for geometry alignment, luminance overlay, automatic color balance adjustment, edge blending parameter customization, light leakage compensation etc., The edge blending processor secures your images perfect presentation on LCD/DLP/LED etc. widescreen.

3D Supported: Support both 2D and 3D format images passing through, with dedicated algorithm, the image processor automatically switch between 2D and 3D images for display.

More Features: Window resizing, positioning, panning, zooming, overlap, input source group management, RS232, panel control, IR remote control.

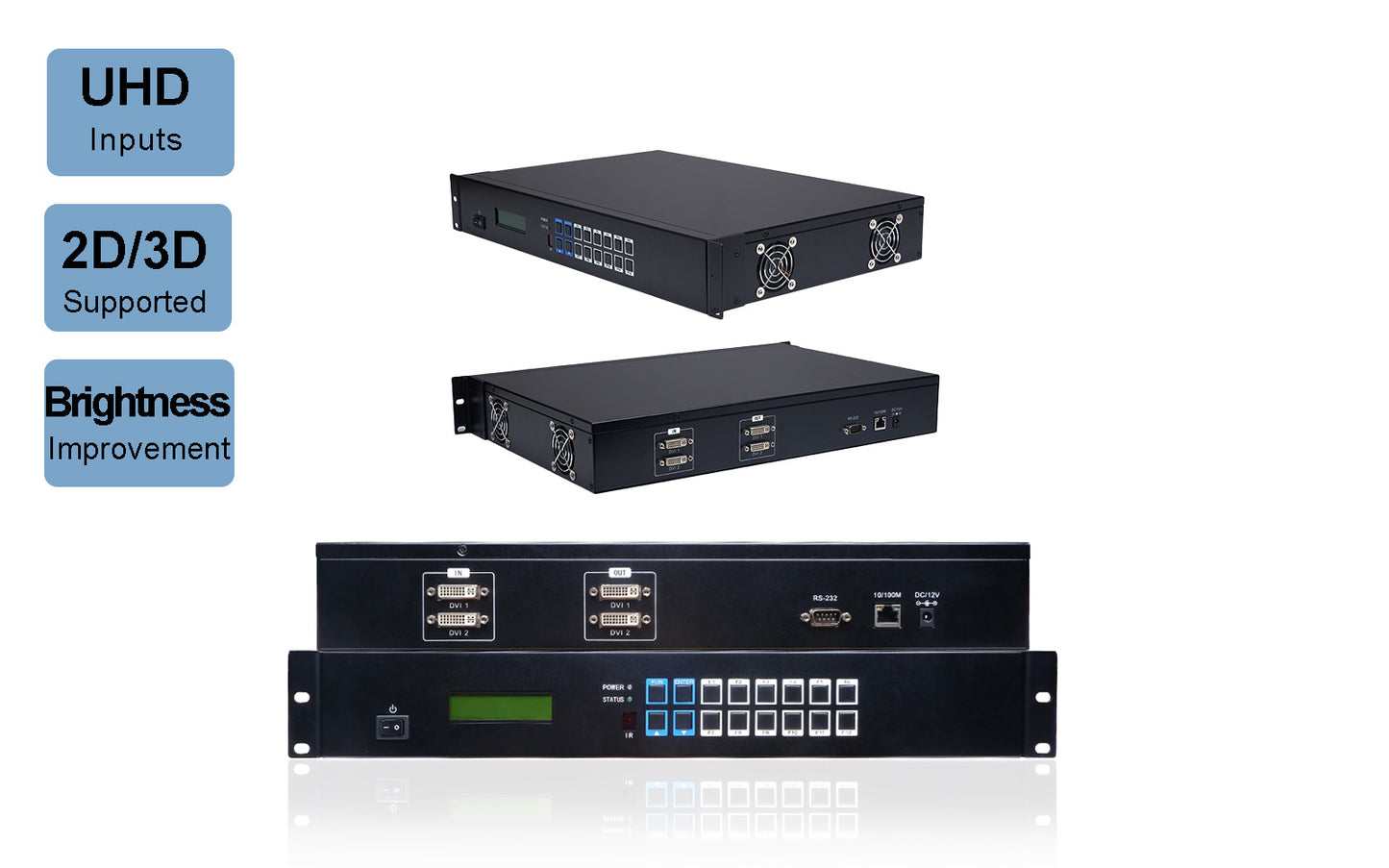

The AGT-M-4 edge blending processor adopts an integrated structure design in 1U rack-mountable metal chassis. With advanced FPGA technology, it empowers high reliability and powerful image processing ability like arbitrary geometry contents warping, luminance overlay, automatic color balance adjustment, edge blending parameter customization, light leakage compensation, etc.. Built-in 1* Dual-Link input and 4* DVI outputs, it enables UHD images passing through without any signal loss. It supports 3D, so arbitrary switching between 2D and 3D display can be realized. Compatible with 3D sources in various formats, users can can flexibly build active or passive 3D presentation to meet the quad-projection edge blending presentation on large screen.

  1) 1* Dual-Link UHD input, supports UHD 8K*1.2K, 4K*2K, 4K*1.2K and customized resolution input of graphics card

  2) 4* DVI outputs, support up to 1920*1200@60Hz

  3) 1* RS232 control point

  4) 1* network port control point

  5) Power interface

  6) Panel button, one-click to recall previous saved display scenes

  7) IR receiver, pair with IR remote control to save and recall the display scene.

UHD Input Makes Image More Vivid

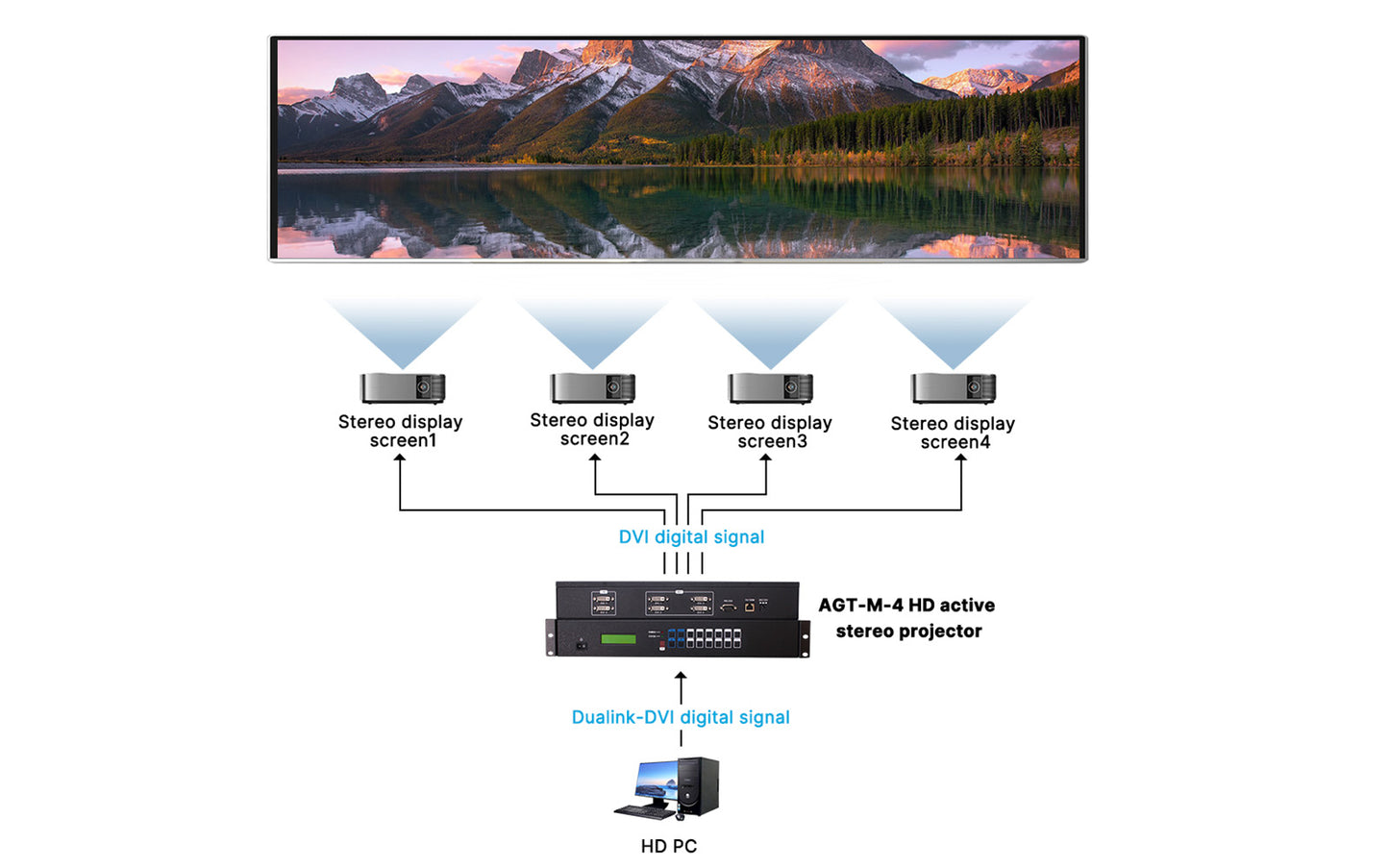

The Dual-Link input interface supports 8K*1.2K, 4K*2K, 4K*1.2K UHD input and graphic card customized resolution input according to the pixel requirements of the output screen, such as the realization of point-to-point UHD display of four projections in 7680*1200 (or 3840*2160) without losing any pixel. Compatible with point-to-point UHD display of Triple-channel projection in 5760*1200Hz. For the application of dual-channel projection, the AGT-M-2 is an ideal choose to realize the presentation of point-to-point UHD display of dual-projection screens in 3840*2160.

3D Presentation Presents Image in Realism

The AGT-M-4 comes with a variety of 3D source processing algorithms, which can realize active or passive stereo presentation of 3D source in various formats, such as Side-by-side 3D format, Top-and-bottom 3D format, 3D Vision Stereo format, etc., and supports a variety of stereo resolution input, such as 1280*720@120Hz, 1280*800@120Hz, 1920*1080@120Hz, 2560*720@120Hz, 2560*800@120Hz, etc., easily build a 3D cinema system and provide users with immersive realistic of being on the scene.

Dual-projection brightness Overlay, Double-brightness Effect

Support dual-projector luminance overlay to achieve the brightness double effect of the projection screen, especially perfect for the environment with strong light, providing a presentation system with high brightness and high quality display effect.

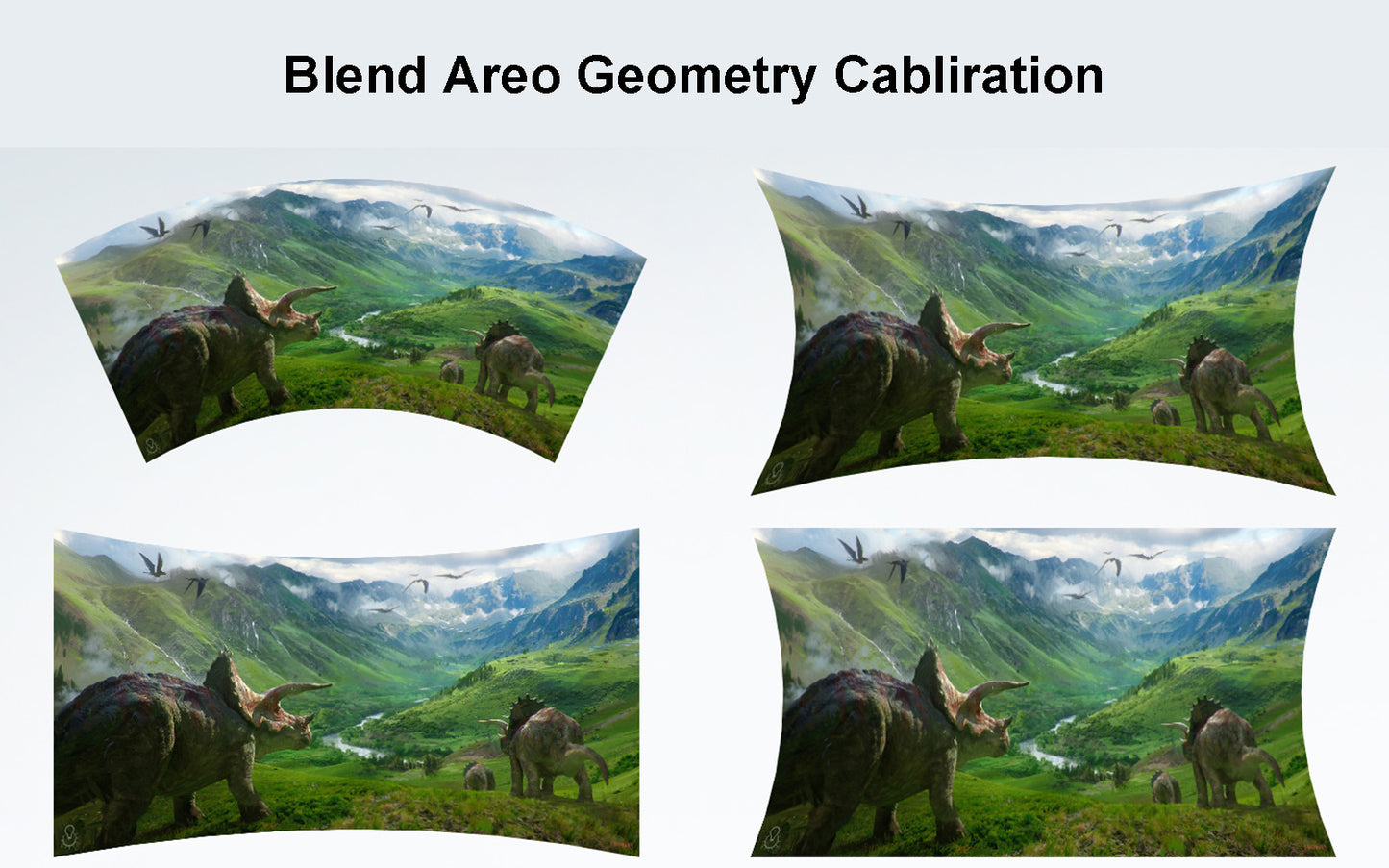

Geometry Cabliration for Image Blending Error Correction

The AGT-M-4 blending processor enables image warping on different screen shapes, allowing geometric, non-geometric, regular, and irregular deformation of images in various resolutions, and correcting geometric errors in presentation. Meanwhile, different image screen shape can be saved as scene for fast call to realize the dynamic changes of various graphics.

Dedicated Algorithm Secures Image Presentation Effect

Using advanced fusion algorithm, it can compensate and improve the light leakage caused by various types of projection hardware such as DLP, LCD, LPT, LCOS, LED, etc., eliminating the light leakage in the edge blend and non-edge blend area for perfect presentation effect. Meanwhile, it supports debugging of the projector in high-brightness modes such as standard/dynamic, which minimizes the loss of brightness, makes the image display brighter, clearer, and more reproducible, giving users the best visual experience.

Storage & Recall Display Scenes with One Key

Support multi-data storage and recall, which can store 2D, left and right 3D, top and bottom 3D, passive 3D and other scene data simultaneously, and recall the scene data through the front panel button of the chassis or IR remote control quickly to realize the arbitrary switching of the display scenes.

Easy System Debugging

Using the guided graphical interface debugging software, the display debugging of projection fusion can be carried out through the adjustment of the software interface graphics, it supports the automatic debugging function of the edge blend area, and engineers can easily realize the debugging and setting of the fusion presentation system.

General Parameters

Other Models

Model	AGT-M-4	AGT-M-2	AGT-KT	AGT-IT
Input Interface	1* Dual-link	1* Dual-link	1* 4K HDMI 1* Dual-link	1* 4K HDMI 1* Dual-link
Output Interface	4* DVI	2* DVI	2* DVI	4* DVI
Resolution of Input 1	/	/	Support 4K*2K、4K*1K UHD and 2K HD Input up to 3840*2160@30Hz	Support 4K*2K、4K*1K UHD and 2K HD Input up to 3840*2160@30Hz
Resolution of Input 2	Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card. Typical applications: Point-to-point display of Quad projections 7680*1200、3840*2160 Point-to-point display of Triple projections 5760*1200	Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card. Typical applications: Point-to-point display of Dual projections 3840*1200	Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card. Typical applications: Point-to-point display of Dual projections 3840*1200	Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card. Typical applications: Point-to-point display of Quad projections 7680*1200、3840*2160 Point-to-point display of Triple projections 5760*1200

[Purchase Reminder]

For diffenerent application scenarios, almost DDMALL display processors need to be customized based on customer’s requirements. We would recommend you to contact us and tell us your using scenario or required technical parameters before order.

Meanwhile, technical background is a must to perform test and commissiong of DDMALL display processors. If you are not technical enough, we will recommend you to check in with us. Professional technical guide and free training will be offered to tackle the problems occured in your processing.

In the future, DDMALL will recruit a oversea expert team focusing on technical support and field installation services in local markets. If you are a technical stuff, who are willing to accept technical training for DDMALL products and are dedicated to provide professional technical service in your market, please contact us.
