Overview

Compact & Low-Power Wifi Encoder: Mini size and ultra lightweight, and the power consumption is only 3.4W; the encoder is powered by USB connection to the signal source or a mobile power bank without power adapter.

Ultra-HD Video Streaming: Support up to 2160p@30Hz HDMI input, 2160p@30Hz HDMI loop out in zero delay, and up to 2160p@30Hz streaming output at video bit rate up to 64Mbps with H.264 or H.265 compression. This HDMI encoder secures your video in 4K quality everywhere.

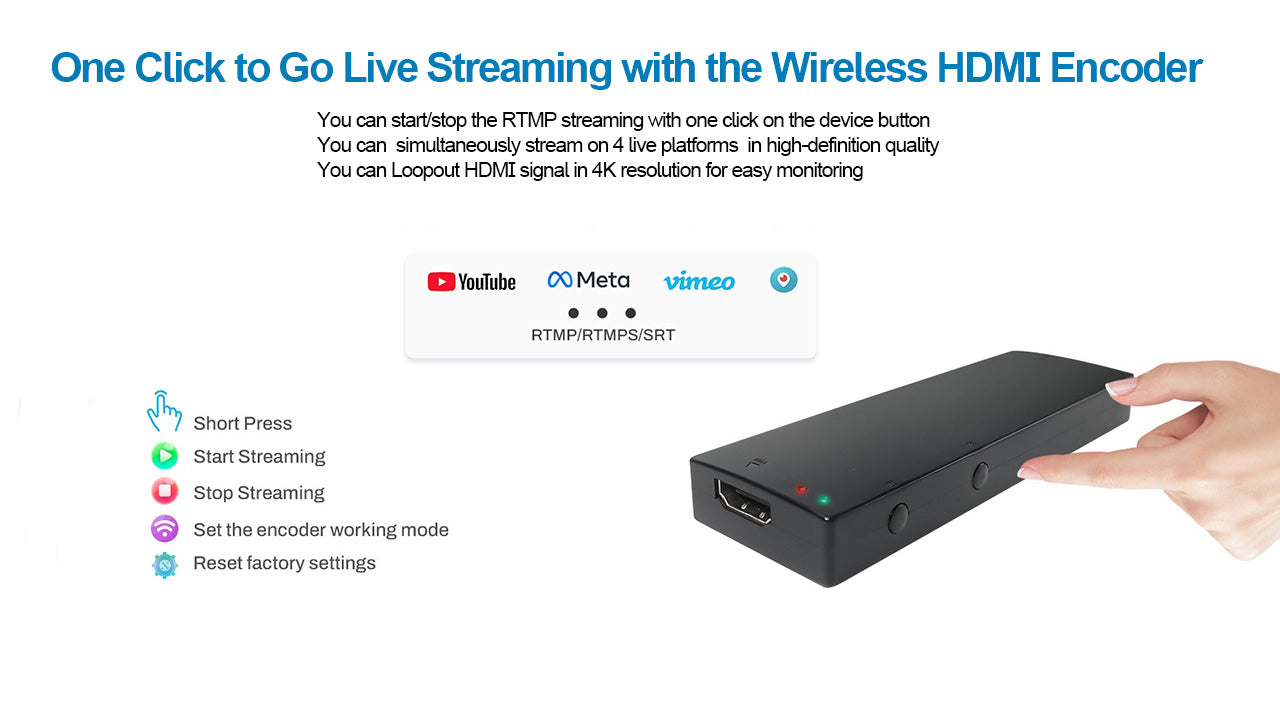

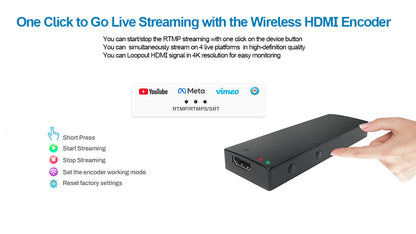

Live with One Click on the 4K Encoder: This streaming encoder allows user to start or stop streaming with one click on the encoder button. It empowers multistreaming function that it can push streams to 4 live platforms simultaneously in 1080p@60Hz at high video bitrate. You can live on YouTube, Facebook, Twitch, Wowza, Dacast, etc.

Device Function Button Customization: The IP encoder has two buttons, You can press any of them to start/stop RTMP streaming, switch AP mode, or reset factory settings; You can also empower the button/buttons with new functions from web UI such as start/stop SRT streaming/RTSP streaming/OSD setting etc.

Quality Wi-Fi6 for Stronger Network Connection: Built-in dual-Wifi 6 antenna to secure the stable and high-quality wireless network connection.

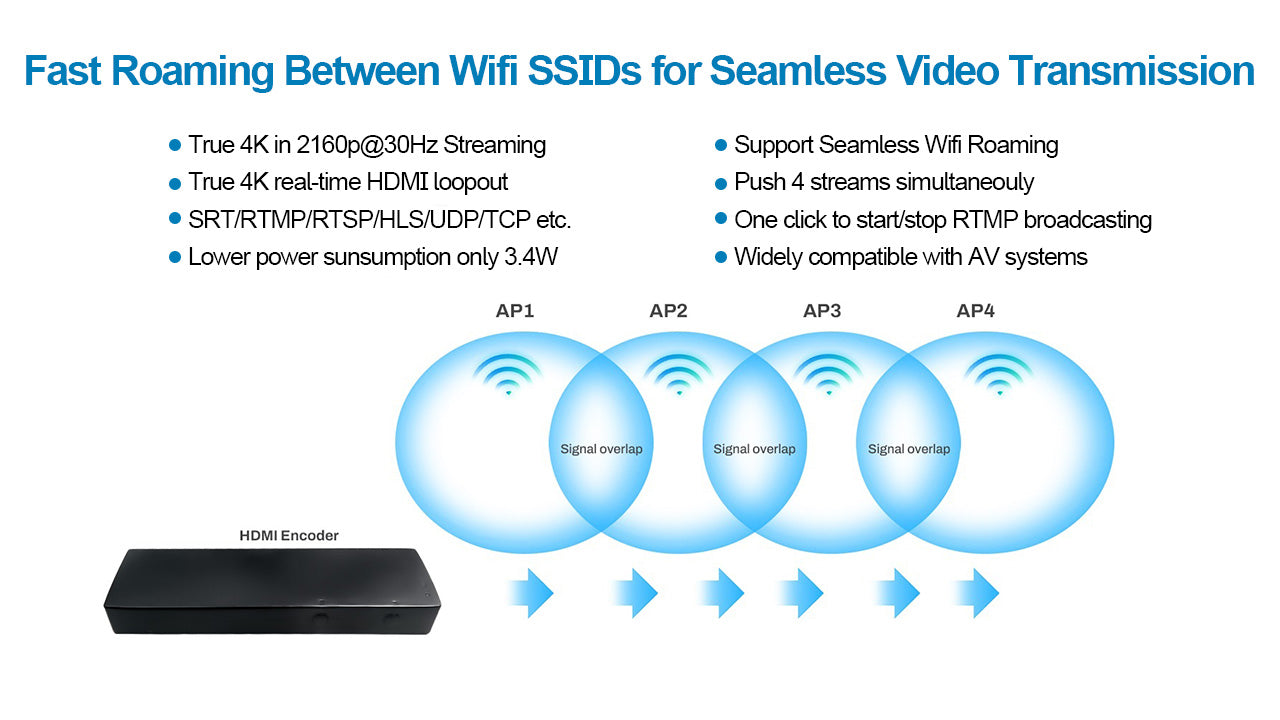

Wifi Roaming HDMI Encoder: This wireless HDMI encoder supports fast Wifi roaming. The Wifi router and Wifi repeaters are set up in the same LAN. The encoder automatically detects and switches to the AP with strongest signal without interrupting the video transmission.

More Functions: Real-time OSD setting; Stream video preview from web UI. Video output bit rate up to 64M in 4K with HEVC. Support protocols like SRT, HLS, RTMP, RTMPS, RTSP, RTP, TCP, UDP, Multicast, Unicast, etc.

Introduction

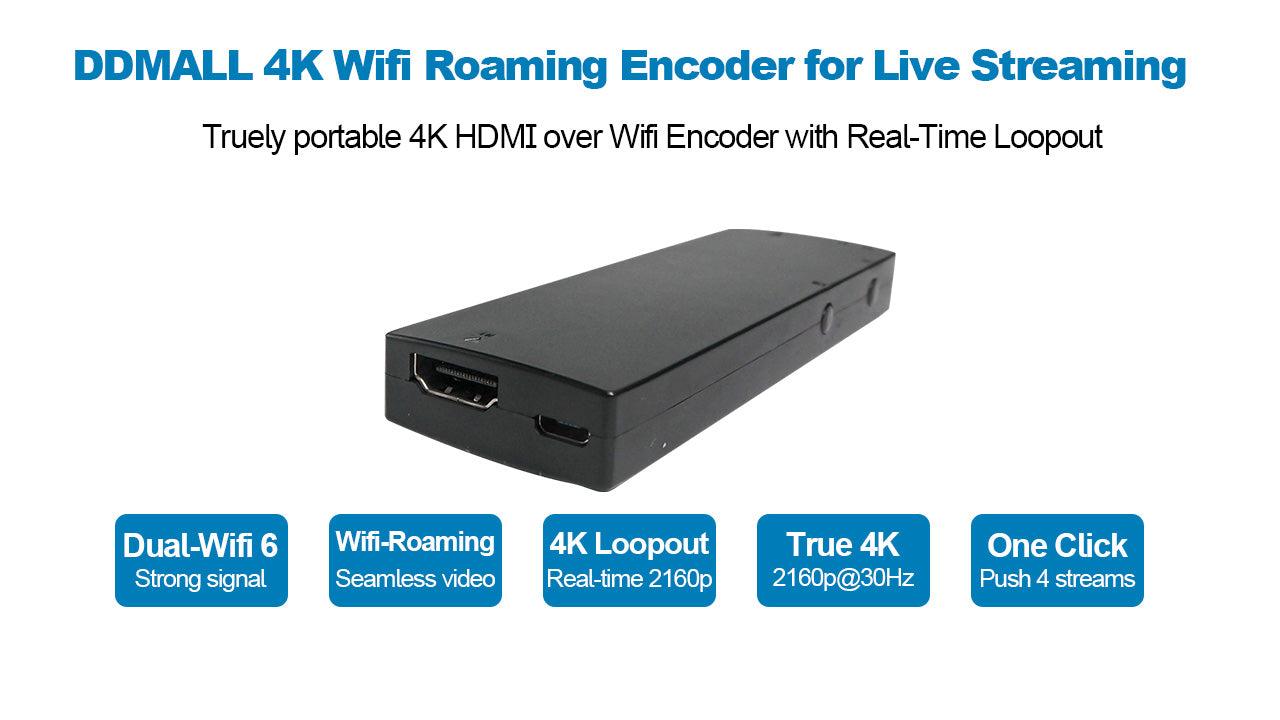

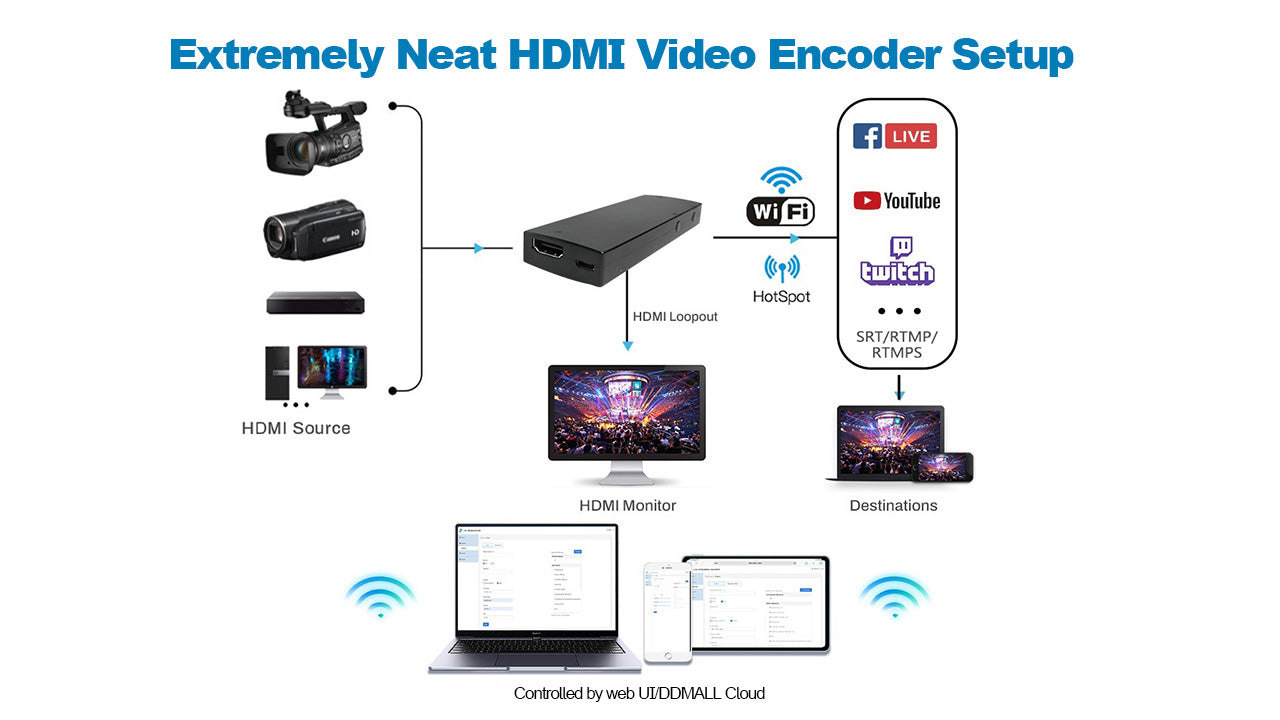

The HEC-20 is a wireless, compact, and energy-efficient HDMI encoder consuming only 3.4W and being powered by USB connection. It enables live streaming in 4K@30Hz and one channel of 4K zero-delay HDMI loop out, achieving crystal-clear video at video bit rate up to 64Mbps using HEVC/AVC compression. Users can easily start/stop streaming with a single click on the device button, conveniently adjust the OSD settings, and preview the video stream in real-time through embedded web UI. The wireless encoder supports simultaneously streaming on up to 4 platforms (YouTube, Facebook, Twitch, etc.) in 1080p@60Hz with different protocols SRT, HLS, RTMP, or RTMPS. With built-in dual-WiFi 6 antenna, the wireless streaming encoder has more stable network connection. Moreover, this wireless HDMI encoder supports fast Wifi roaming. All Wifi routers and Wifi repeaters （Router and repeaters must support Wifi roaming protocols) are set with same SSID and password. The encoder automatically detects and switches to the AP with strongest signal without interrupting the video transmission.

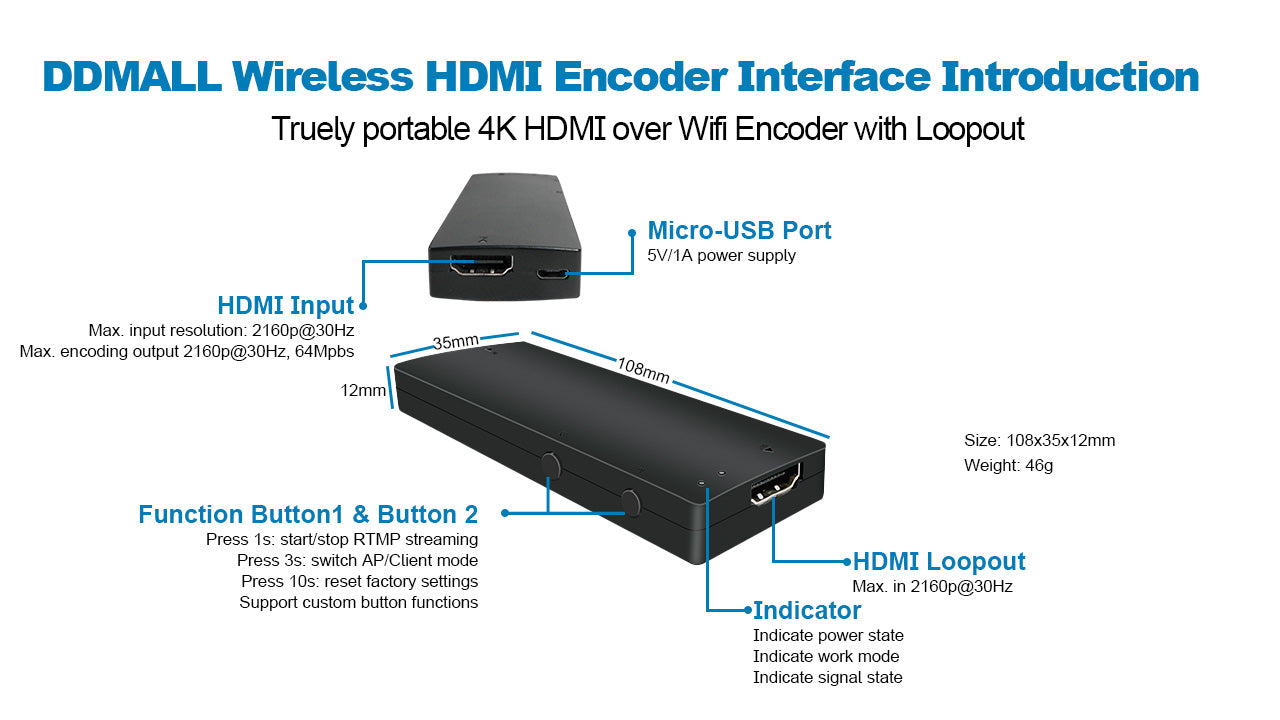

Hardware Appearance

HDMI In: HDMI 1.4A, HDMI input up to 2160p@30Hz;

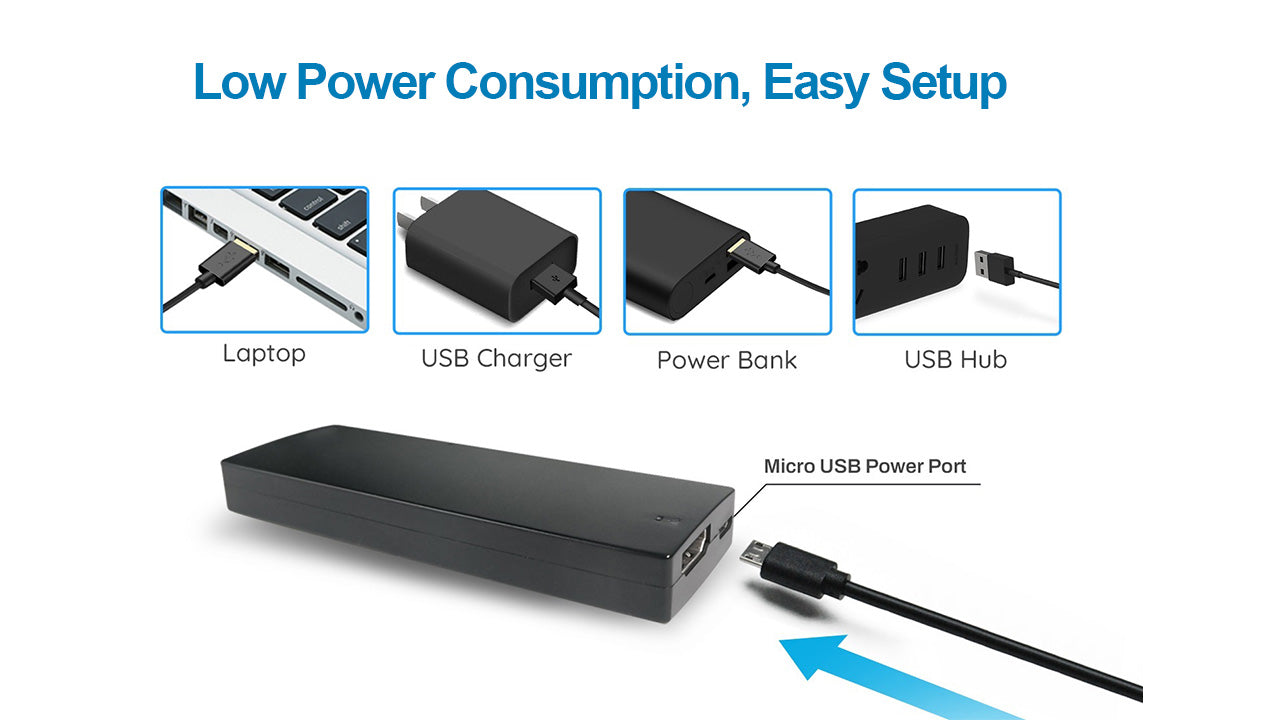

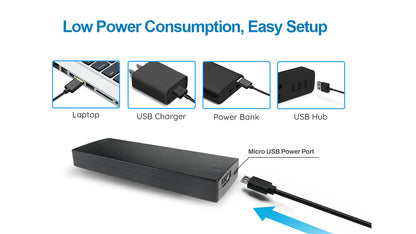

Micro USB Port:  Powered by USB connection to the signal source or a power bank;

Set Button: Switch the encoder work mode; One-click start/stop streaming in real-time; Long press to reset factory settings;

LED Indicators: Indicate the power condition and the encoding status;

Alternate Button: Wait to add more functions

HDMI Out: HDMI 1.4A, encoding output & zero-delay local loop-out up to 2160p@30Hz;

Key Features

Streaming on the go: Extremely compact: 108x35x12mm(L*W*H) and low power consumption: 3.4W. It can be conveniently powered with USB connection to the signal source or a mobile power bank. With its easy installation and flexible streaming capabilities, this encoder provides a seamless solution for live streaming anywhere you go.

Crystal-Clear Streams &  Real-Time Local Loop Out: Wtih HEVC/AVC codec, the video encoder enables UHD video passing through with impressive features. It handles up to 4K@30Hz HDMI input, delivers 4K@30Hz encoding output at video bit rate up to 64Mbps, and offers 4K@30Hz zero-delay HDMI loop out. This ensures that your video is securely transmitted in 4K quality, providing an exceptional viewing experience to your audiences.

Dual Wi-Fi 6 for Better Streaming Experience: Equipped with high-quality dual-WiFi 6 antenna, the 4k streaming encoder enables more efficient wireless network connection, securing your video experience, providng more stable streaming solution.

Parameters
