Overview

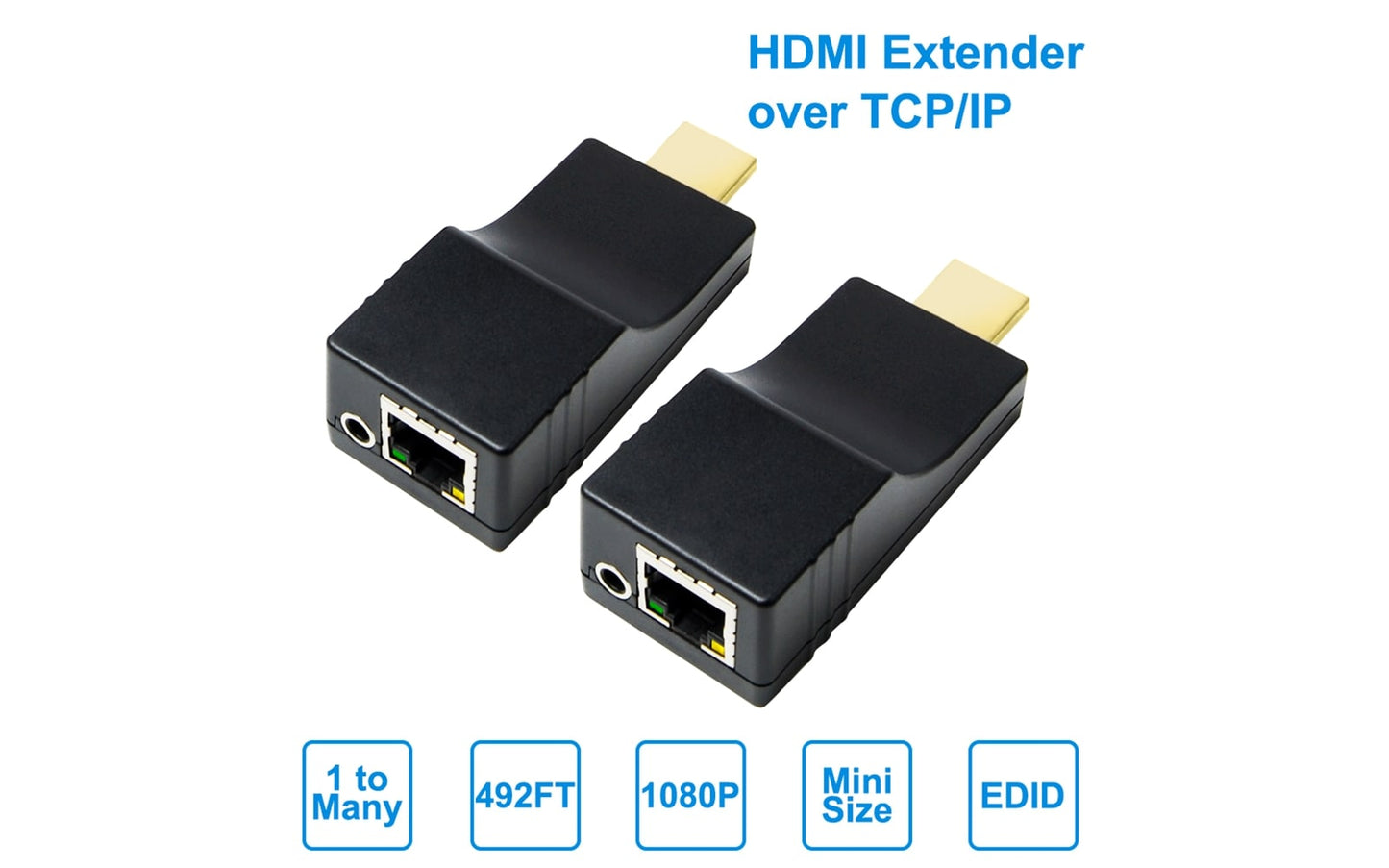

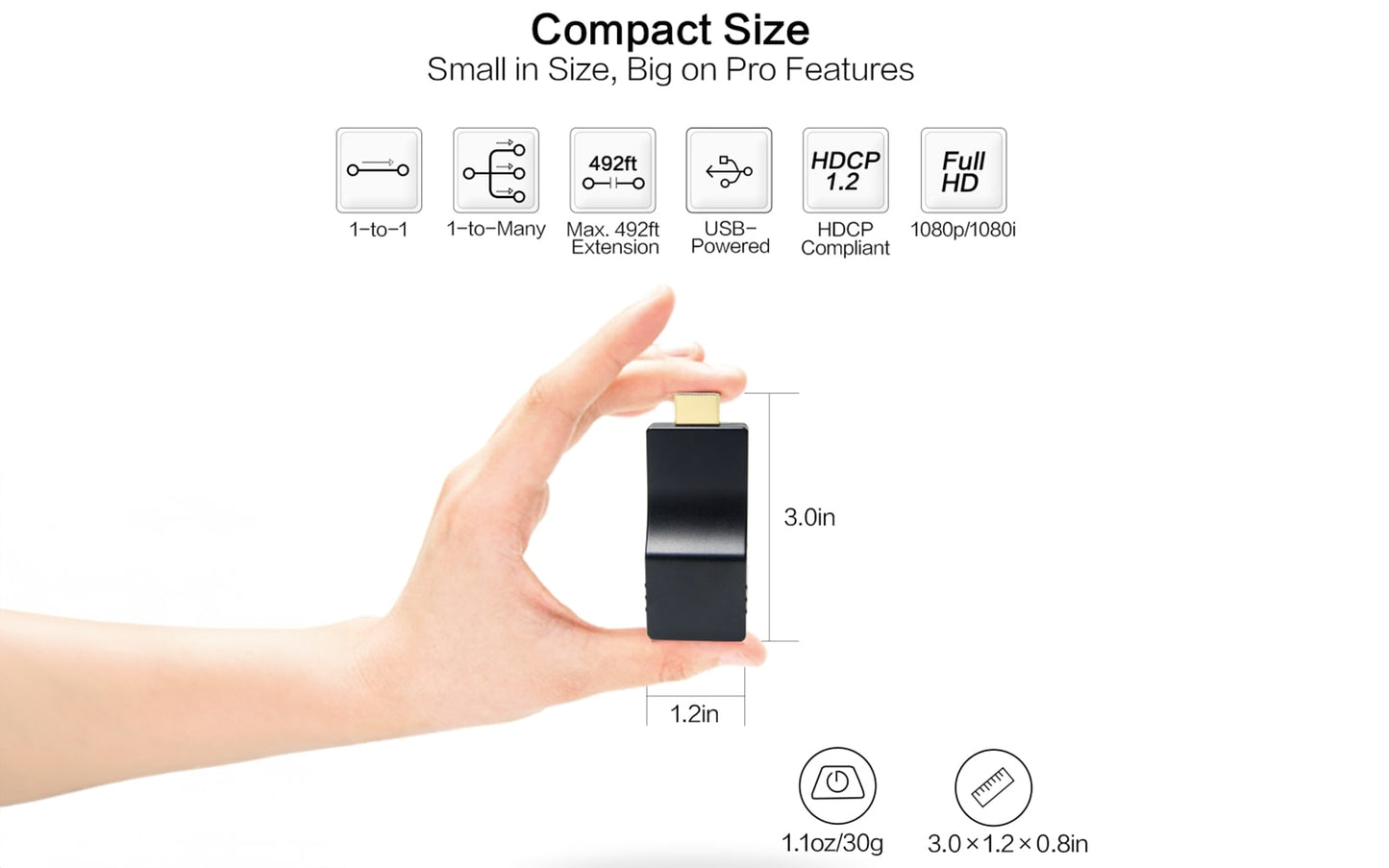

Portable HDMI Transmitter Receiver over TCP/IP: Ultra-mini(75x32x22mm) and ultra-lightweight(32g). The HDMI IP extender is ideal for video transmission and broadcasting systems in LAN.
Energy-Efficient & USB-Powered: Ultra-low power consumption(2.0W). The HDMI extender is powered by USB connection. Easy to install; plug and play.
H.265 Encoding Technology: Adopt H.265 HEVC codec technology to achieve IP video transmission with HDMI input and output up to 1080P@60Hz respectively with clear, smooth image quality in high-color reproduction.

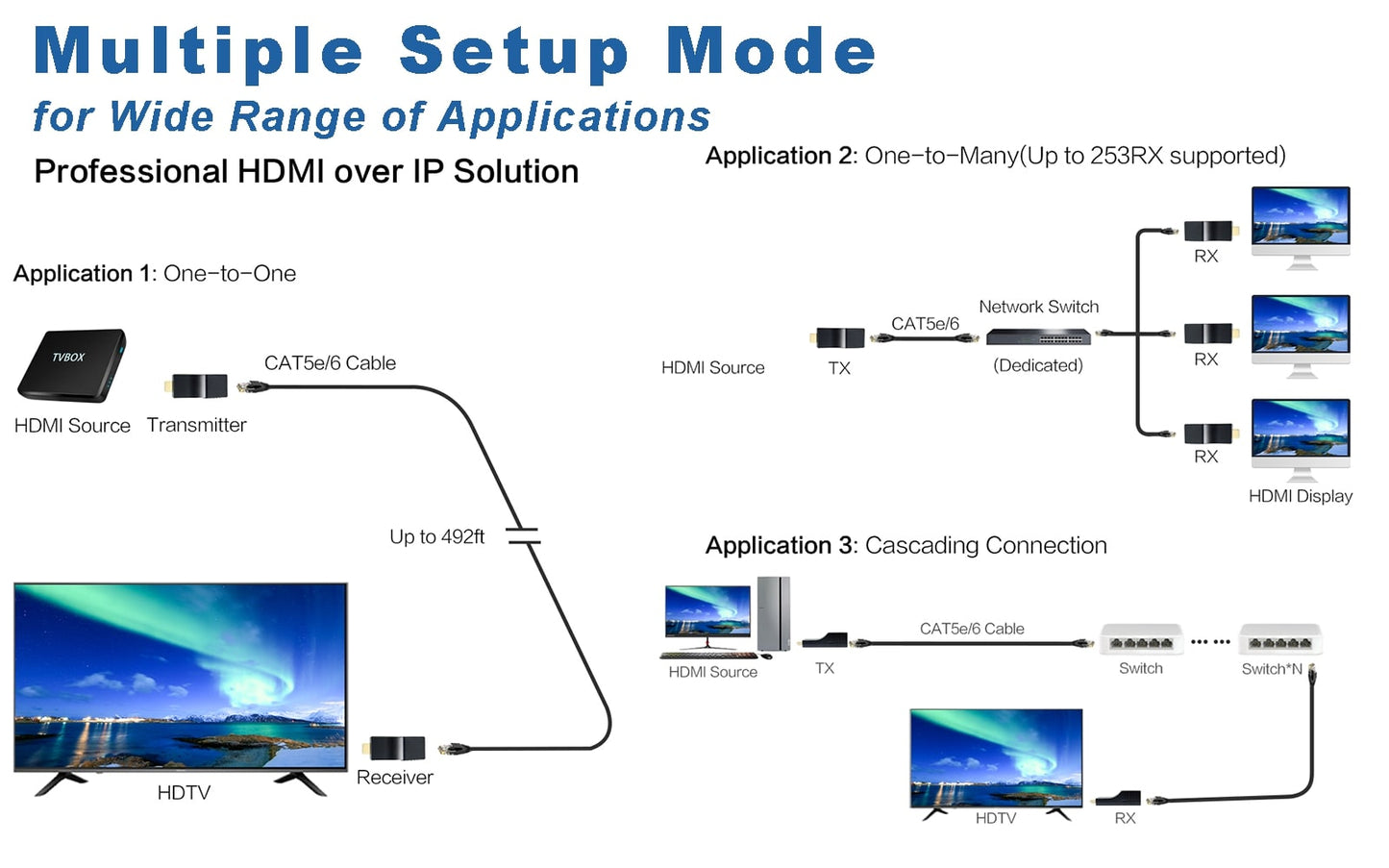

Transmission Latency as Less as 0.08s: The latency of long-haul video transmission over twisted-pair cables is as less as 80ms only in 1-to-1 direct connection mode, and the transmission range of 1-to-1 Ethernet cable direct connection is up to 492ft/150m. In 1-to-many applications, the TX transmitter and RX receivers join the same video system with dedicated switch or powerline adapter to perform video broadcasting in LAN.
1-to-Many Video Broadcasting: Multiple RX receivers can be purchased separately to perform 1-to-many video broadcastting over LAN. 1 TX transmitter supports up to 253 RX receivers(1-to-253 broadcasting).

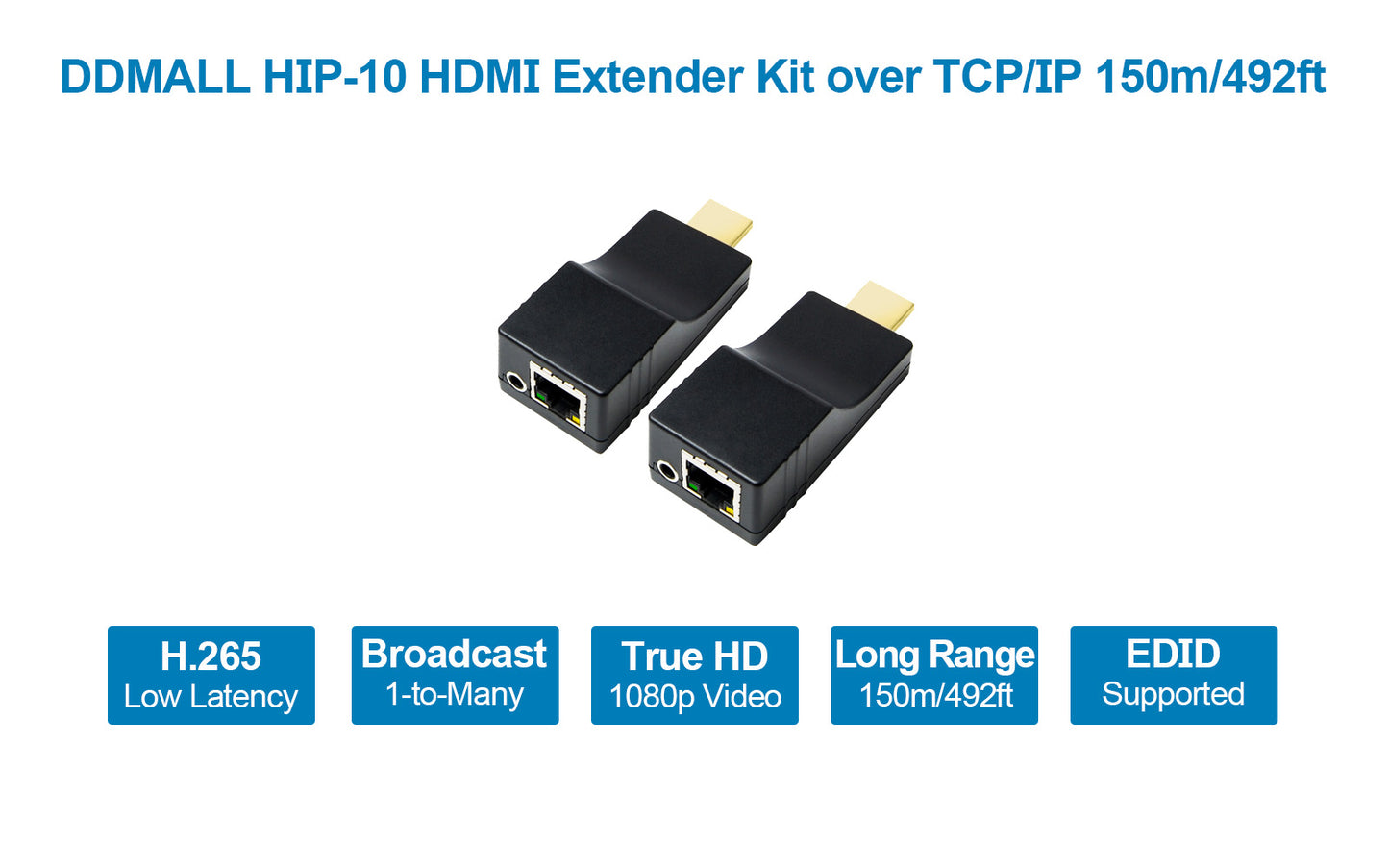

The HIP-10 is a portable 2K HDMI transmitter receiver kit over TCP/IP With H.265 technology. The HDMI extender kit is USB-powered so it accepts power from the USB port of HDMI signal sources and the display terminals respectively. Plug and play. It performs reliable video transmission in 1080P@60Hz with HEVC H.265. In 1-to-1 direct connection mode, video transmission latency is as less as 0.08s and transmission range is up to 492ft/150m over a single cat6 or cat7 cable. In 1-to-many(up to 253) broadcasting applications, the transmitter and receivers connect to same switch to perform video broadcasting in LAN. Beyond that, as a HDMI over poweline video extender kit, it can be set up on the existing powerlines with the help of the powerline adapter.
USB-powered & Easy Setup
The HIP-10 HDMI extender is with HDMI type-A male connecter so you can plug the TX transmitter and RX receivers into your signal source and display terminals directly, and power the TX and RX by USB connection easily. Plug and play, ideal for projection system, home theatres, digital signage and more.
Cost-Effective 1-to-Many Solution
The HIP-10 HDMI IP transmitter allows you to broadcast a single TX Transmitter to up to 253 RX Receivers through a dedicated switch in LAN. No drilling holes and screws are needed while the TX and RXs are set up on your existing powerlines with the help of powerline adapter. Save your total cost of video system setup.
Crystal Clear HD Video Quality
This mini HDMI extender over IP uses advanced H.265/HEVC codec for image processing. It secures your 1080P@60Hz from the sources to destinations. You can sit with ease and enjoy your crystal clear high-quality HD video anywhere there is HIP-10 video transmission system.
Audio Embedding and Extraction
Transmitter (TX) - Audio embedding
Support external 3.5mm audio and HDMI audio input. You can switch between the native HDMI audio and the external 3.5mm audio source input (supports Line in/Mic in) by pressing the 'Reset' button on the TX.
Receiver (RX) - Audio Extraction
The Receiver can repeat audio embedded in HDMI source and also extract it to a separate 3.5mm audio output, which allows you to connect it to a 3.5mm audio device, such as stereo sound system or desktop speaker for additional audio output.

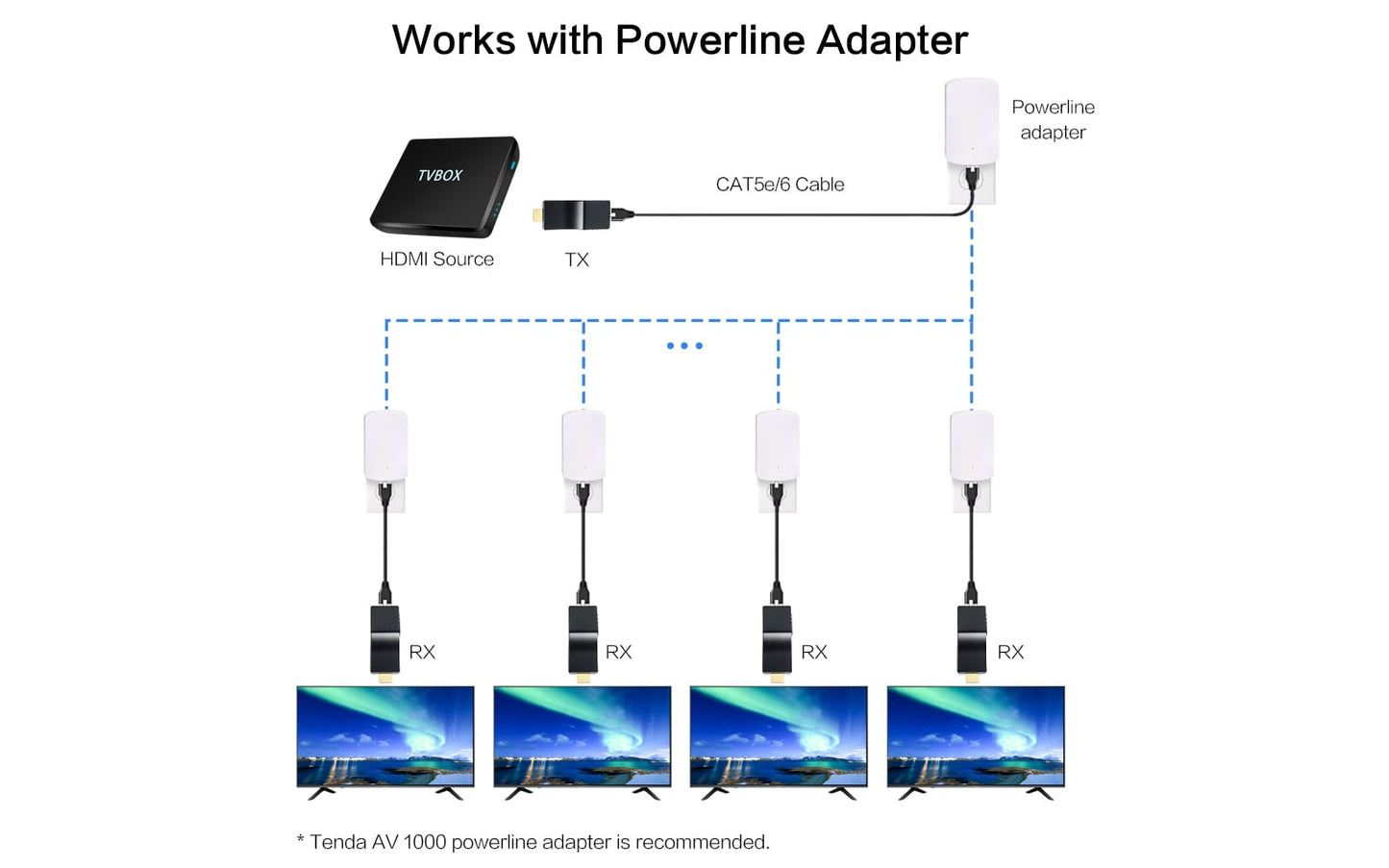

Set Up with Powline Adapter
Are you still struggling with the cable wiring for your setup of your video broadcasting system? DDMALL HIP-10 free you from the additional infrastructure building. You can set up our HDMI over IP extender over your exist powerlines with the help of powerline adapter. Then, you are ease with everything! Compatible with various devices, such as set-top boxes, blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.
Specifications
| Power Supply | DC 5V/1A(USB-Powered) | Power Consumption | 2.0W |
| Operate Temperature | -10℃~50℃ (14℉~122℉) | Operate Humidity | 10%-90%RH (non-condensing) |
| Network Mode | Static/DHCP | Work Mode | 1-to-1, Cascade, 1-to-many |
| Max, Transmission Range | 100m over Cat 6 cable | HDMI Input Resolution | 1080p@60/50/30Hz; 1080i@60/50Hz; 720p@60/50/30Hz |
| HDMI Output Resolution | 1080p@60Hz | HDMI Standard | HDMI 1.3, HDCP 1.2 |
| HDMI Connector | type-A male | Audio | Line in, Mic in, HDMI lpcm 2.0 |
| Transmission Protocol | IGMP | Dimension | 75mm(L)x32mm(W)x22mm(H) |
| Weight | 65g/pair | EDID |
Supported |
What's in the Box
• 1× HDMI Transmitter, 1× HDMI Receiver
• 2× HDMI Male to Female Cable
• 2× HDMI Female to Female Adapter
• 2× Micro USB Power Cable
• 2× 3M Double Sided Tape
• 1× User Manual
Reminder: Please use an unmanaged, dedicated network switch for network setup with multiple receivers.
