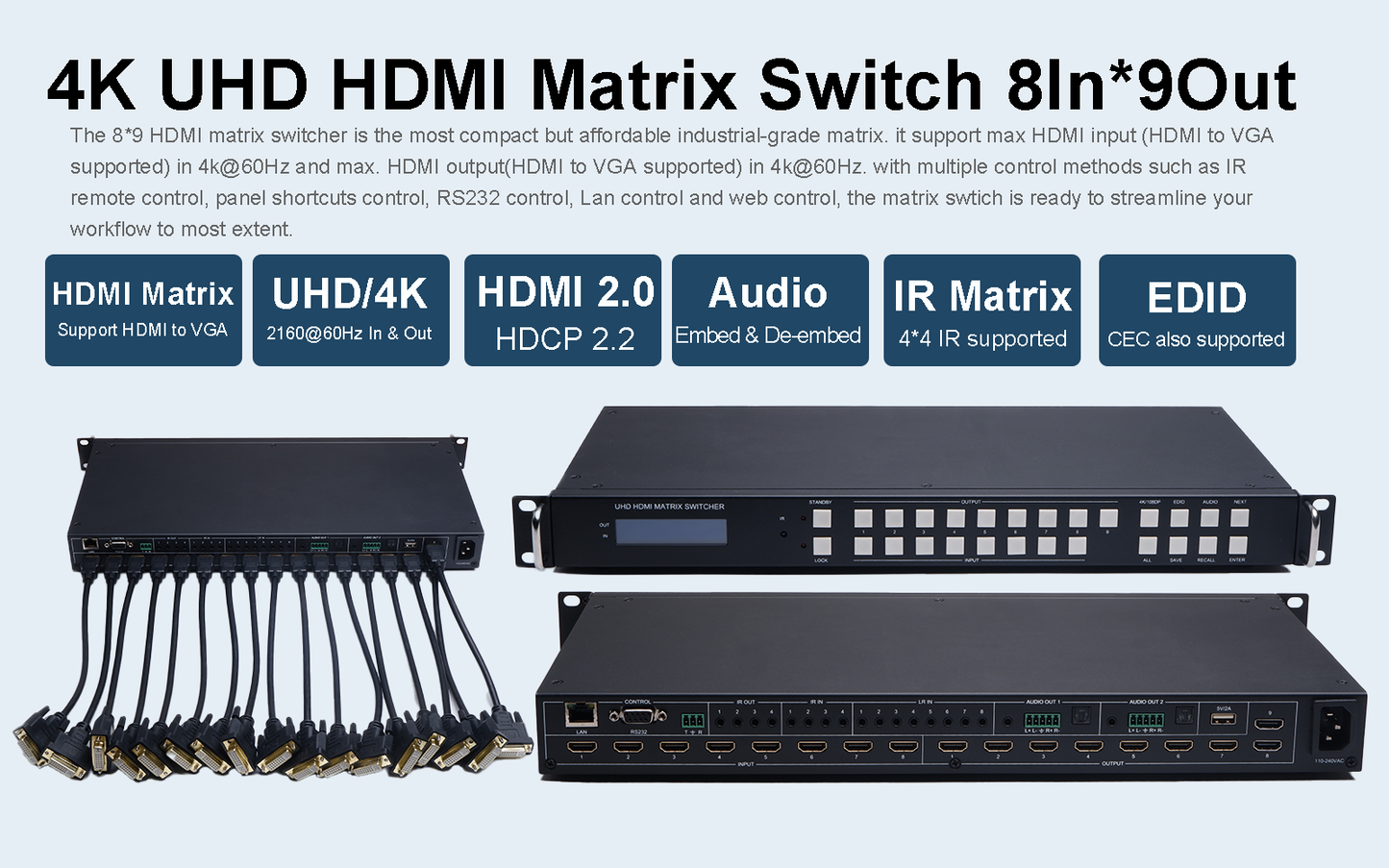

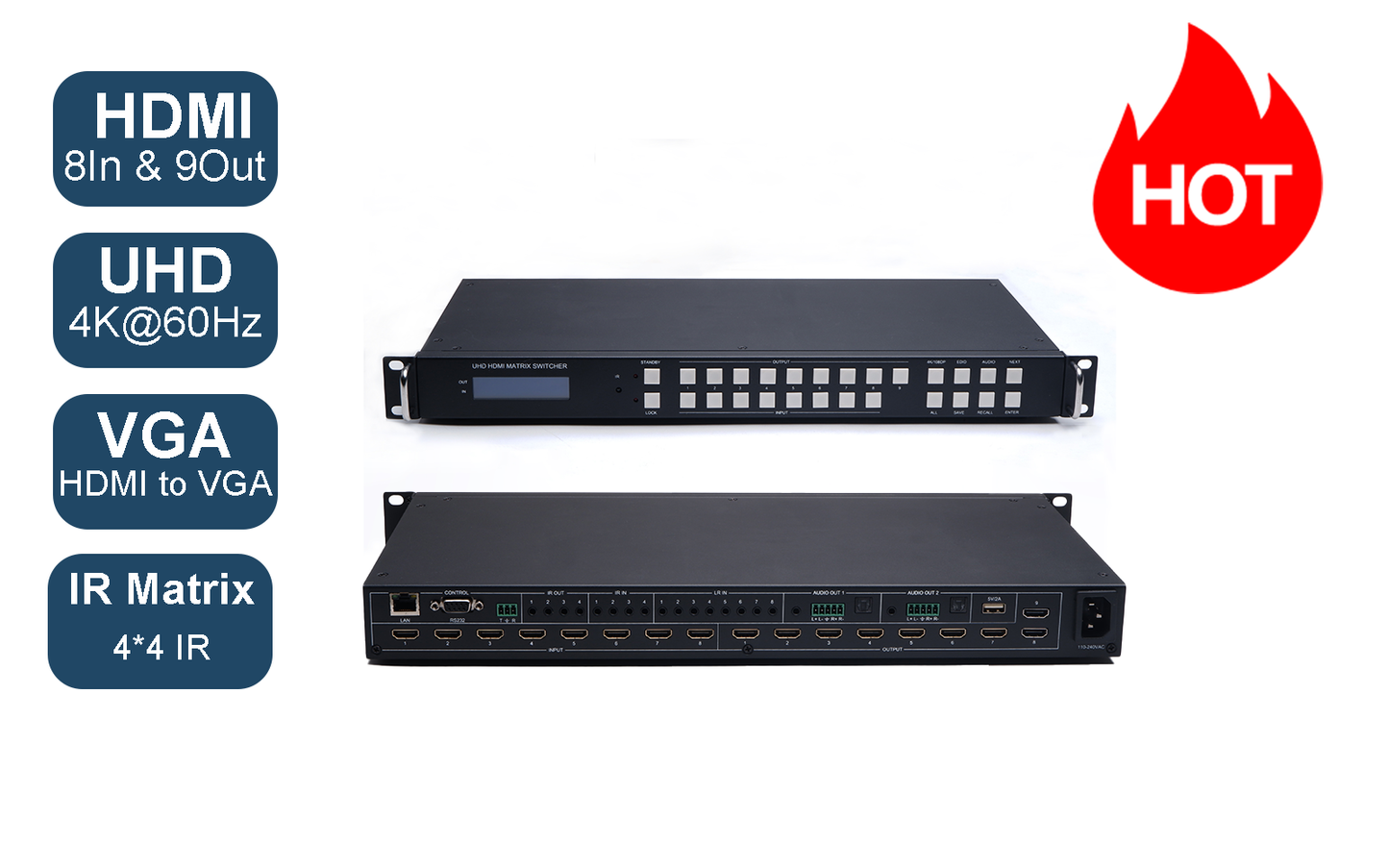

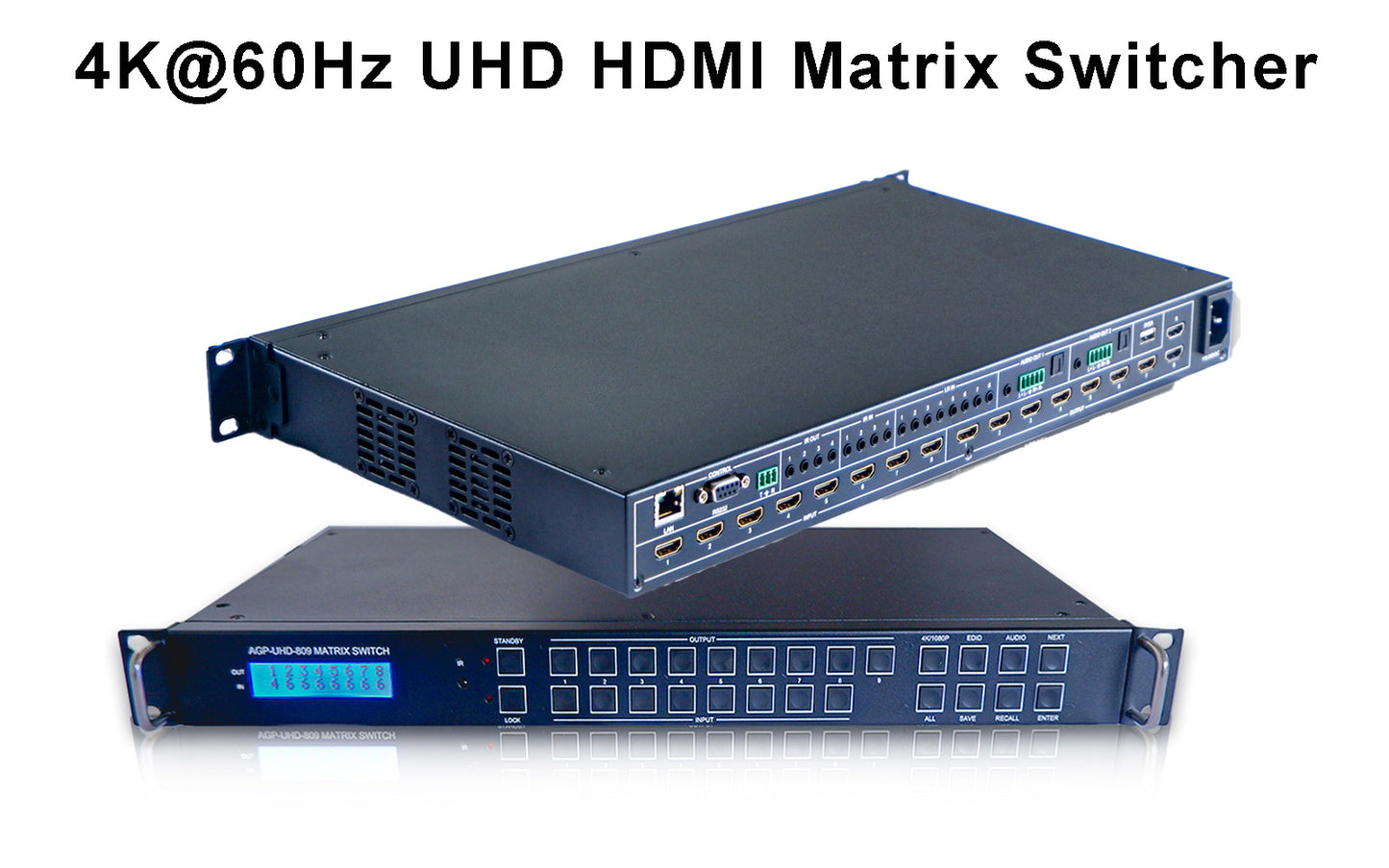

Overview

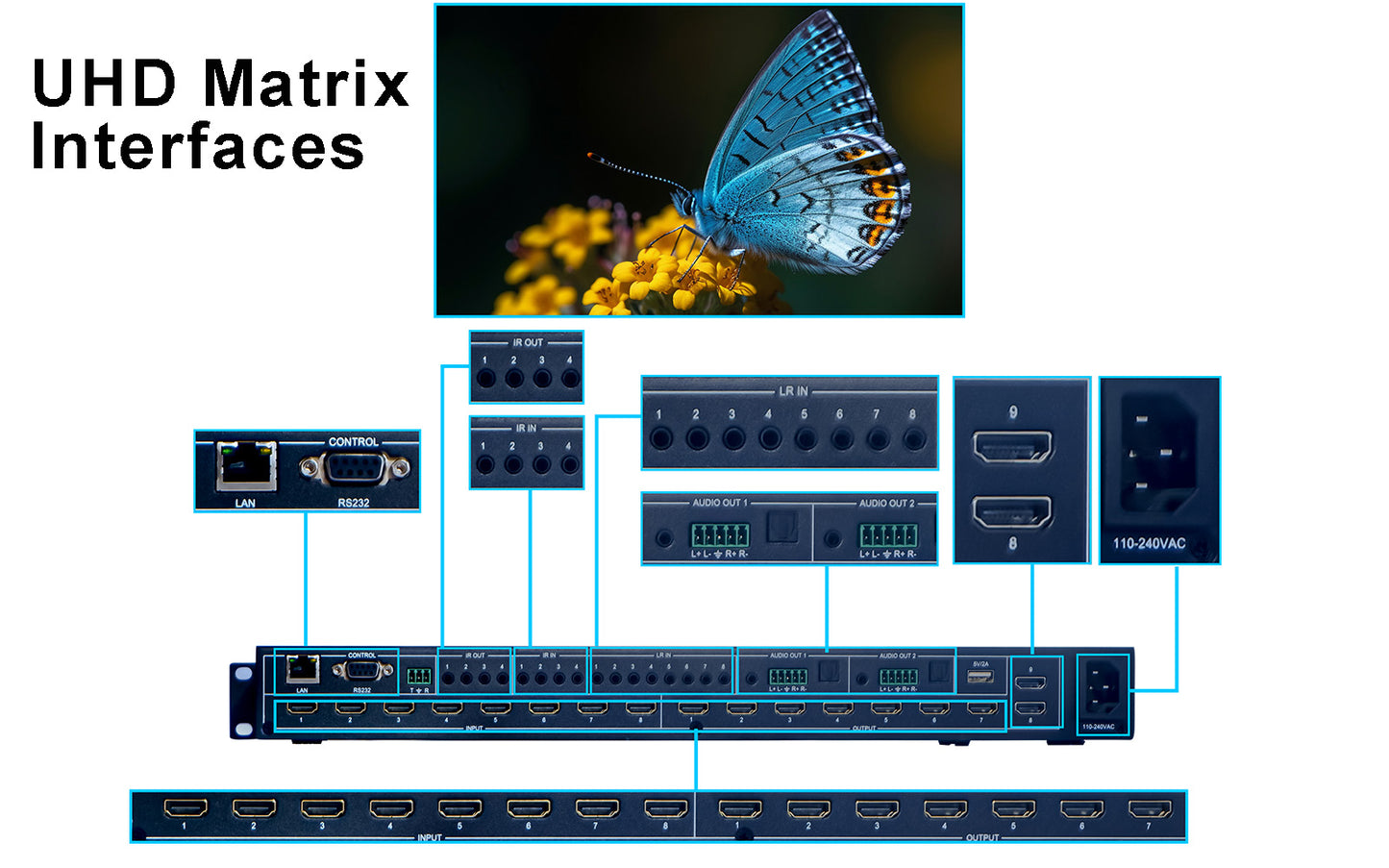

True UHD HDMI Matrix: HDMI 2.0 (HDCP 2.2); max. 8 HDMI inputs in 4k@60Hz and max. 9 HDMI outputs in 4K@60Hz without compromizing on the switching performance. support downscaling for display. Support 2K upscale to 4K for display. Support 8*3.5mm audio inputs. Support 2*audio outputs(3.5mm audio and LR audio supported)
HDMI to GVA Supported: with HDMI to VGA converter or cable, the HDMI matrix allows VGA signals pass through in ultra high-definiation.
Audio Embedding & De-embedding: the 4K HDMI matrix switcher allows to extract audio and embed external 3.5mm LR audio for output.
IR Matrix: support 4*4 IR matrix to perform IR remote control.
Multiple Control Methods: The matrix supports front panel control, IR remote control, RS232 control, Ethernet/Web control.
More Features: HDCP2.0, HDCP2.2, EDID, CED supported; video preview supported; 4K-HANDLE(4K/1080P supported); IR remote control, panel control, RS232/485 control, Web UI control.
Key Features
- HDMI 2.0; HDCP2.0, HDCP 2.2. 8*HDMI inputs, 8*3.5mm audio inputs.
- 9*HDMI outputs and 2*audio outputs(3.5mm audio and lR audio supported); support customize output resolution and format.
- Input and output resolution up to 3840x2160@24/30/60Hz or 4096x2160@24/30/60Hz;
- HDMI audio extract
- External LR audio embedded on HDMI stream is supported. with built-in audio volume module to adjust the output audio volume.
- IR matrix (Only IN1-4 and OUT 1-4)
- EDID management
- CED management
- Chroma sampling 4:4:4, 4:4:2, 4:2:0.
- support 4K-HANDLE (4k/1080p) to match different displayers.
- Support output preview setting, always show the last valid picture.

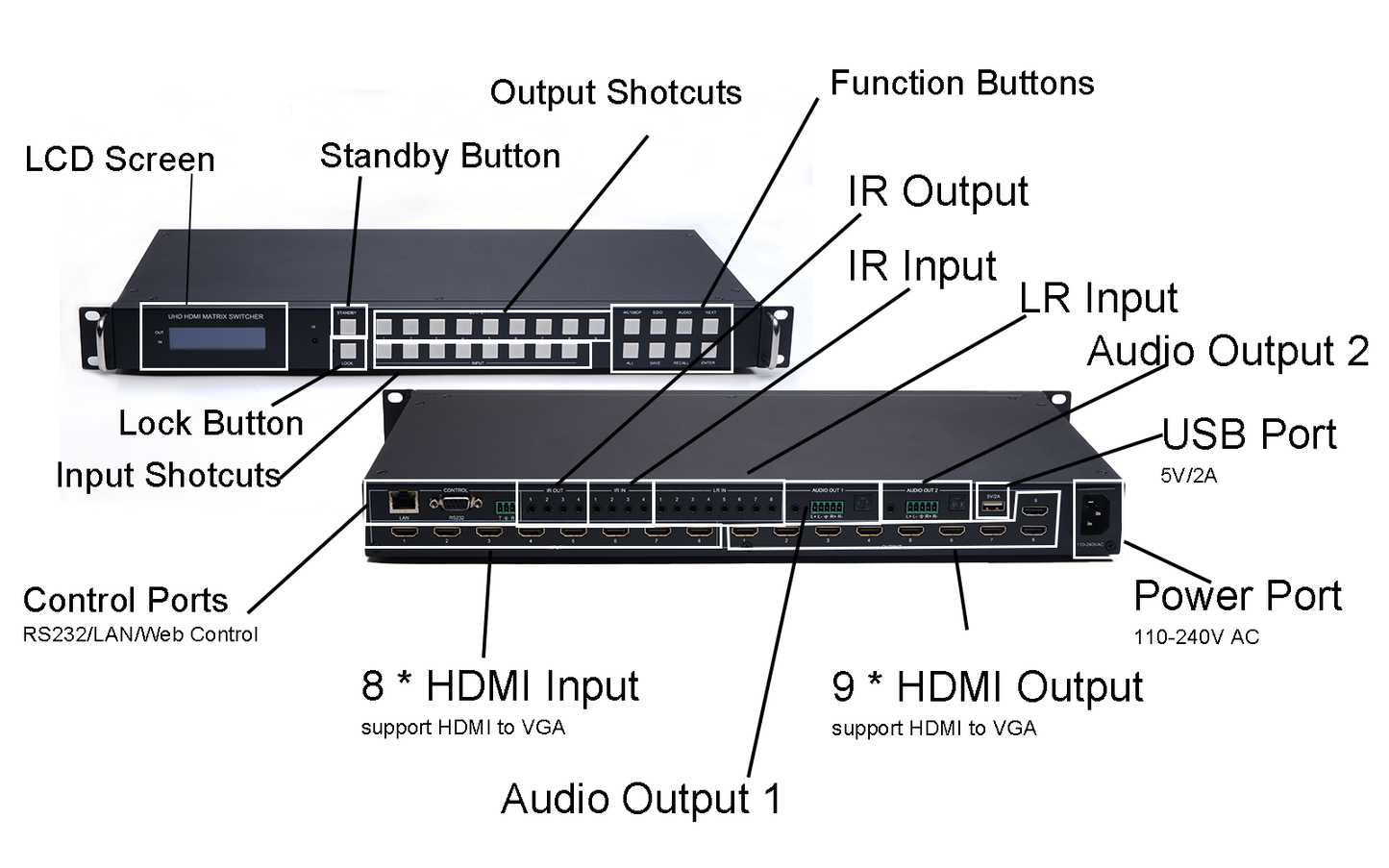

- Front panel/IR remote/RS232/Ethernet web UI control
Secure Your Image Presentation in UHD
With resolution clear transmission technology, the matrix switcher supports 4K*2K point-to-point display losslessly without compression. Buit-in scaler function to automatically upscale 2K resolution to 4K for display. It also support quad-window display in HD resolution.
UHD Image Display in Pixel-to-Pixel
With advance video wall processing technogy, the HDMI matrix switcher enables UHD image full-screen display on video walls without dropping any frame. It also allows images quad-view in HD. Users are granted with the freedom of zooming/enlarging any window on the video wall to emphasize on the most important information.
Parameters
- Interface: HDMI-A
- HDMI standard: HDMI 2.0, HDCP 2.2
- Max. resolution: 2160P@60Hz
- Bandwidth: 18Gbps
- HDMI amplitude: T.M.D.S +/- 0.4Vpp
- Differential impedance: 100+/- 15ohm
- Baud rate: 9600, data bit: 8, stop bit: 1, no parity checking
- Ethernet: IE10.0+, HTML5
- Max power consumption: 60W, 110-240V AC
- Size: 43x30x4.4cm
- Weight: 5kgs
- Operating temperature: 0-40 celcius degrees
- Storage temperature: -20-70 celcius degrees
- Humidity: 10%-50%
