Overview

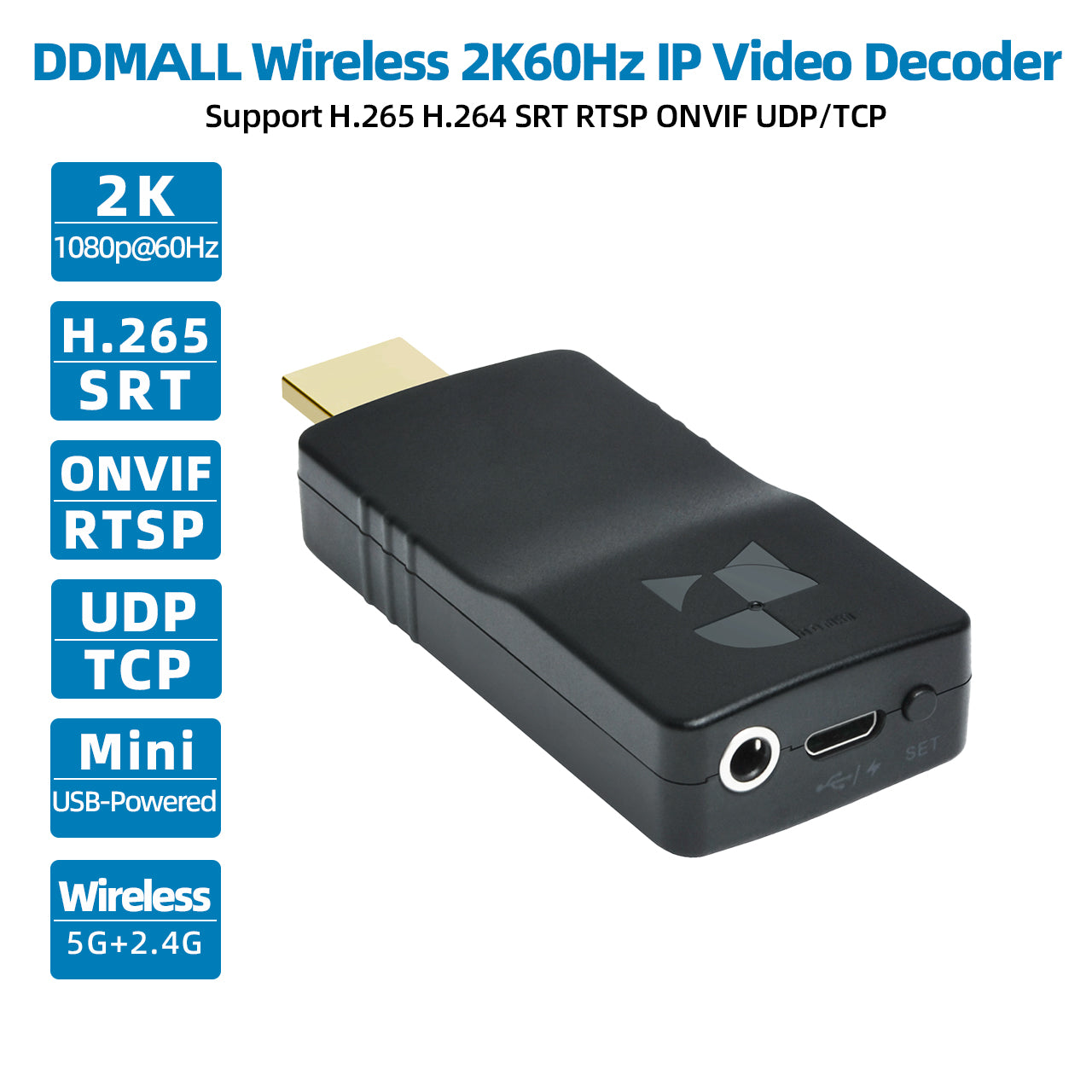

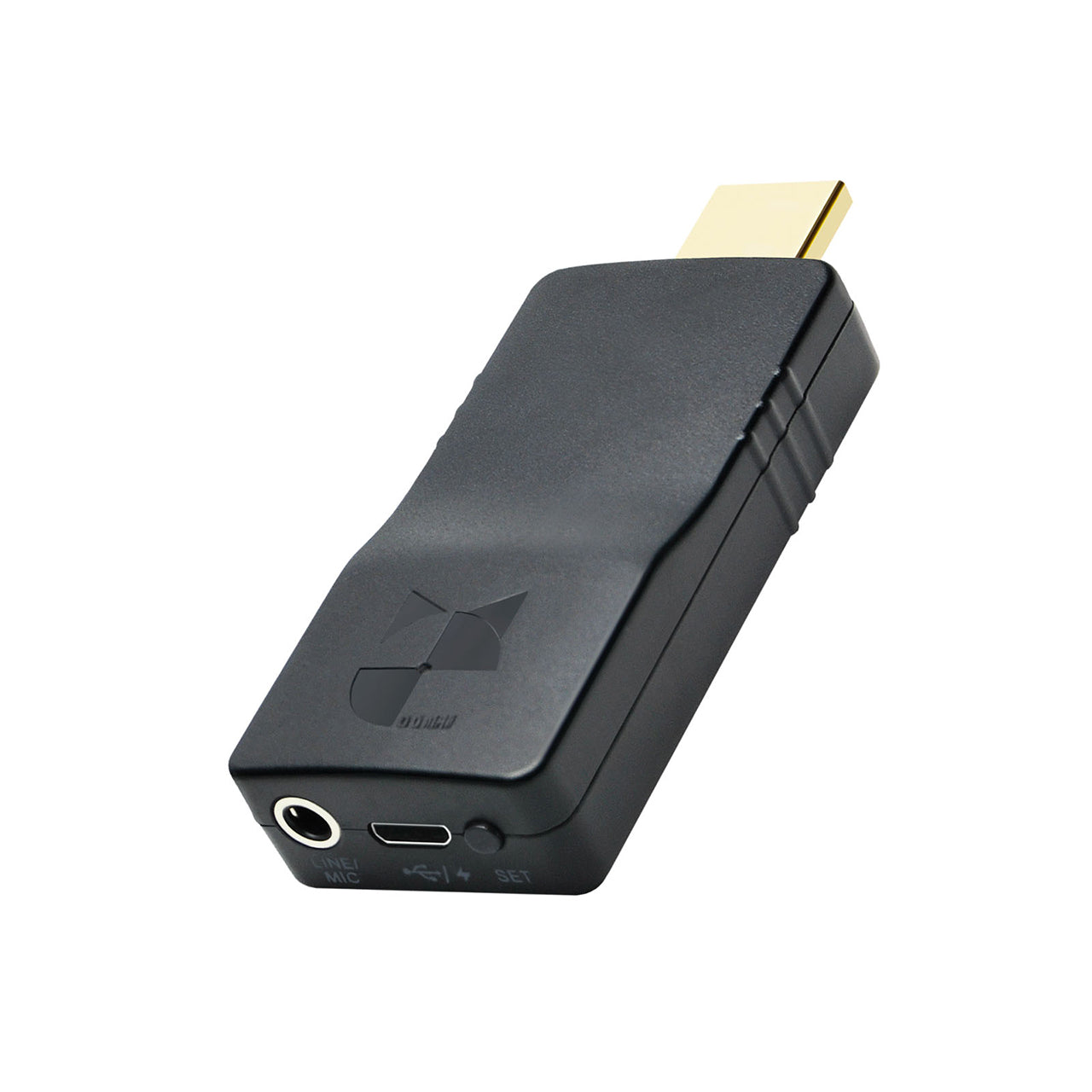

HDD-10W: 2K Wireless HDMI Video Decoder, Mini SRT Decoder

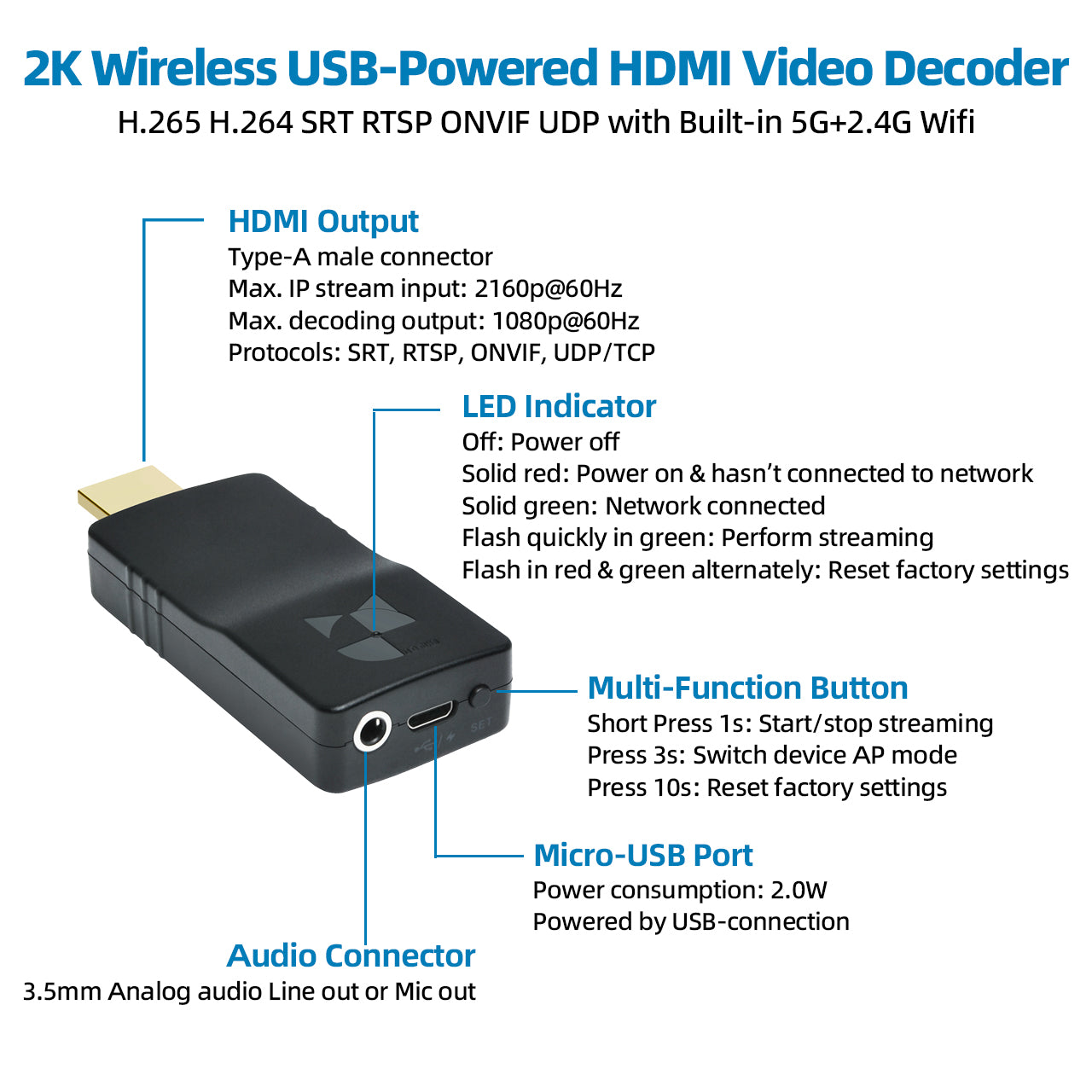

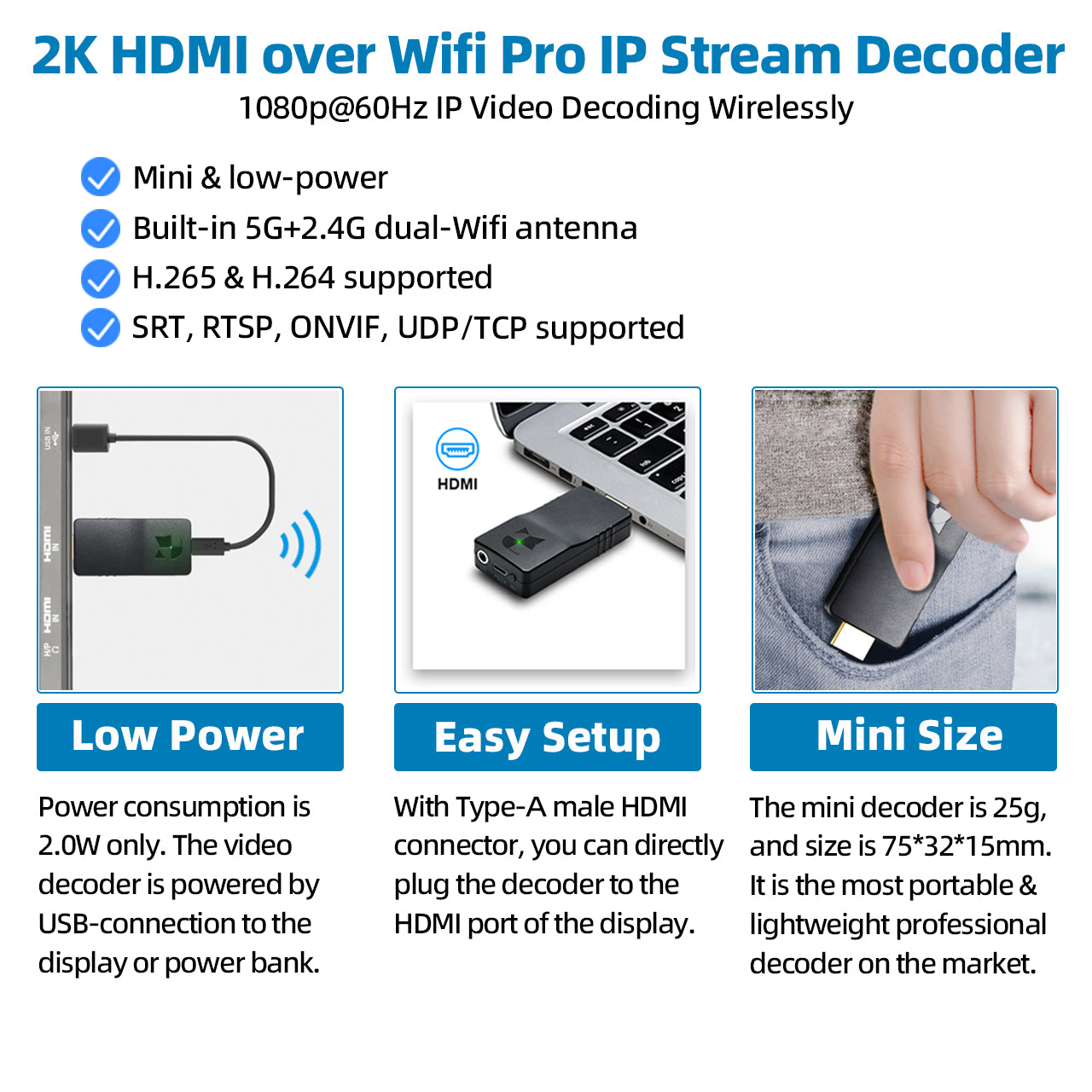

Mini & Low Power IP Decoder: 75x32x15mm/25g & low power consumption with USB-Powered. Type-A Male HDMI connector. Easy installation and setup.
True HD Wireless SRT Decoder: SRT supported to offer secure, reliable and low-latency end-to-end IP stream decoding by pairing with DDMALL or third-party SRT encoders.
High-Quality Video: Resolution is up to 2K, decoding and HDMI output up to 1080p@60Hz at high bitrate with H.265/HEVC & H.264/AVC compression.
Camera Decoder: Support SRT, ONVIF, RTSP, UDP, and TCP protocolS. Professional and portable hardware IP decoding solution for IP cameras or NVRs.
5G+2.4G Dual-Band Wi-Fi: Built-in 5G+2.4G high-performance Wifi antennas provides reliable wireless network connectivity.
The HDD-10W is one of DDMALL portable HDMI video decoders featuring in mini size(75x32x15mm/25g) and low power consumption. The HDMI decoder is USB-powered. It supports to decode up to 1080P@60Hz video and HDMI output up to 1080P@60Hz at high bitrate with built-in H.265/HEVC & H.264/AVC SRT, ONVIF, RTSP, or UDP protocol. It is a SRT decoder to perform secure, reliable, and low latency full HD video when pairing with DDMALL SRT encoders or third-party SRT encoders. The IP decoder offers a portable & wireless decoding solution to decode IP cameras, NVR devices, and network streams. Integrate the HDMI decoder into your IPTV system, surveillance system, video distribution system, broadcast system, and more to perform reliable decoding.
Wireless SRT Decoder!
 |
 |
 |
True HD SRT Video Decoder |
Easy USB-Powered |
Online Upgrading |
| Portable design 2K high-definition SRT streaming decoder secures your video from packet loss and jittering even over unpredicable networks. | Power it by a USB cable then you are on the go with ease. No fear of power shortage as it will get enough juice with USB-connection. | HEVC/H.265, AVC/H.264 compression. decode and output in up to 1080p@60Hz. Firmware is upgradable to add new features. |
Dedicated "Wireless" Streamline Your Video System
As the most mini hardware decoder on the market with functions density, the HDD-10W is confident to process IP streaming decoding on your network wirelessly. Forget network cables and power adapter, the wreless HDMI decoder will amaze you how neat and easy to set it up on your network wirelessly. Worry about the video transmission performance? Ho man, just take care of your wireless router. If it can provide enough juice for network connectivity, the HDD-10W will decode your fulll HD video at high bitrates. Immersively experience the smooth and crisp video quality.
 |
 |

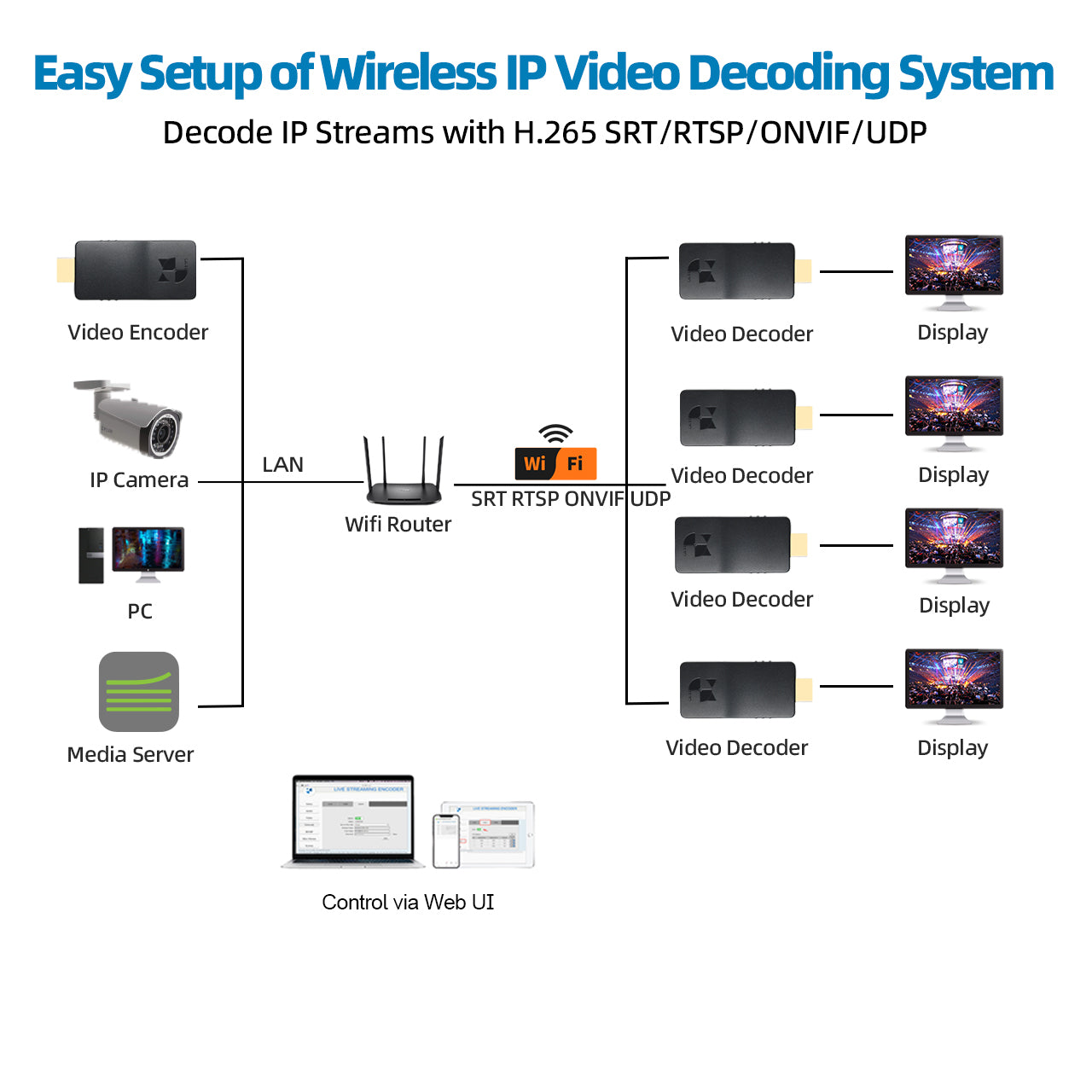

| Diagram to show setup of HDMI decoder in your video system. | Diagram to show easy installation and wide capatibility |
Specifications
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature |
-20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 25g/0.055lbs |
| Product Dimension | 75x32x15mm/2.95x1.26x0.59in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP, TCP, | Supported Output Resolution |
1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz, |
| Supported Stream Input Resolution |
1920*1080p@60/30Hz, 1280*720p@60/30Hz, |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Level | BaseLine, Main, High |
| Control Method |
Web UI |
Default AP Mode IP | 192.168.2.250 |
What's In the Package
*1× HDD-10W HDMI Decoder
*1×HDMI Male to Female Cable
*1×Micro USB Power Cable
*1 x Quick Installation Manual
*1 x Warranty Card
