Overview

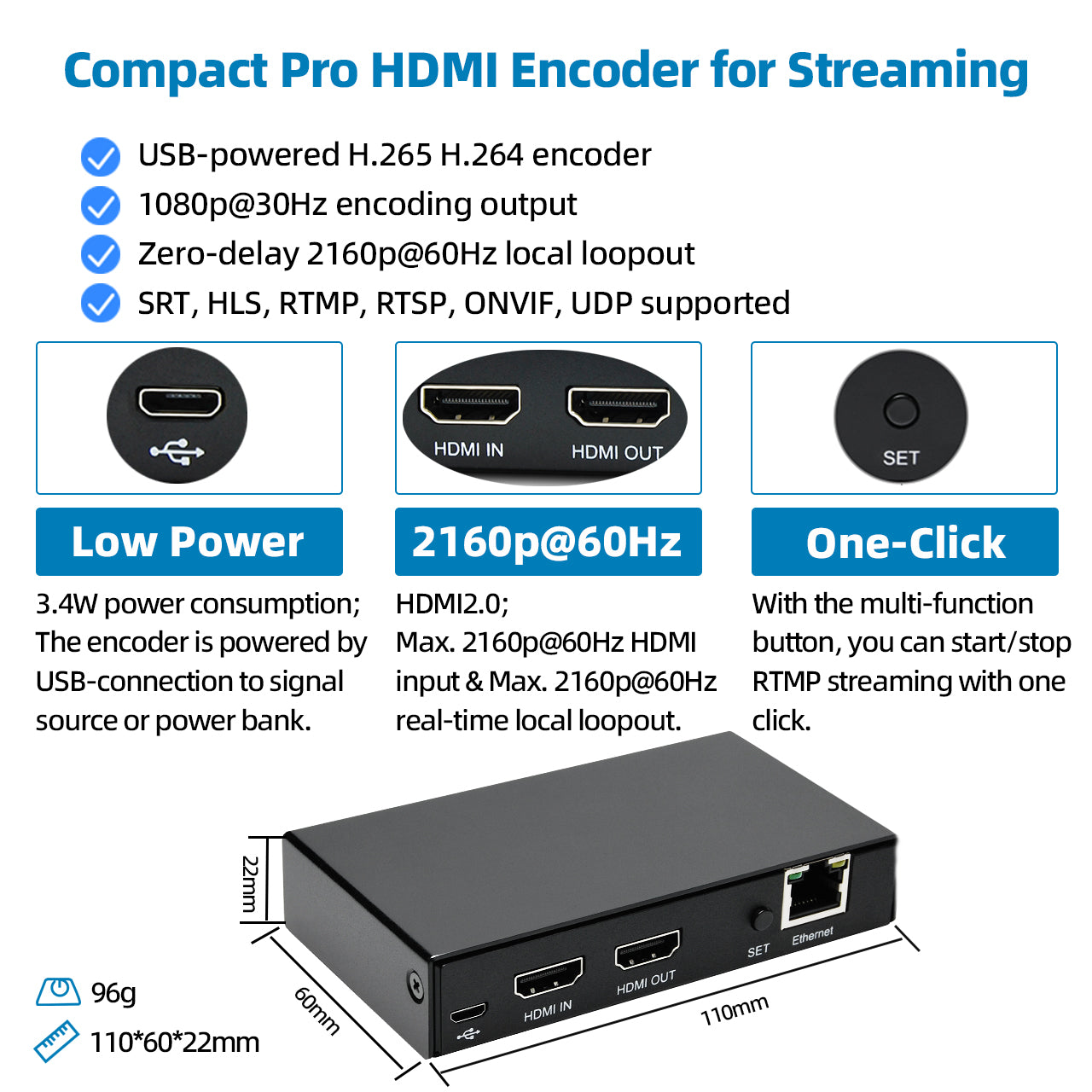

Energy-Efficient & USB-Powered: Ultra low power consumption (only 3.4W); the live streaming encoder accepts power from USB port of signal source or mobile power bank with power adapter-free.
4K60Hz HDMI Input & Loopout: HDMI inputs up to 4K@60Hz; 4K video local loopout in up to 4K@60Hz with zero delay. Stream outputs at up to 16Mbps in 1080p with H.265 or H.264 SRT, HLS, RTMP/RTMPS, RTSP, RTP, TCP, UDP, Multicast, Unicast etc.;

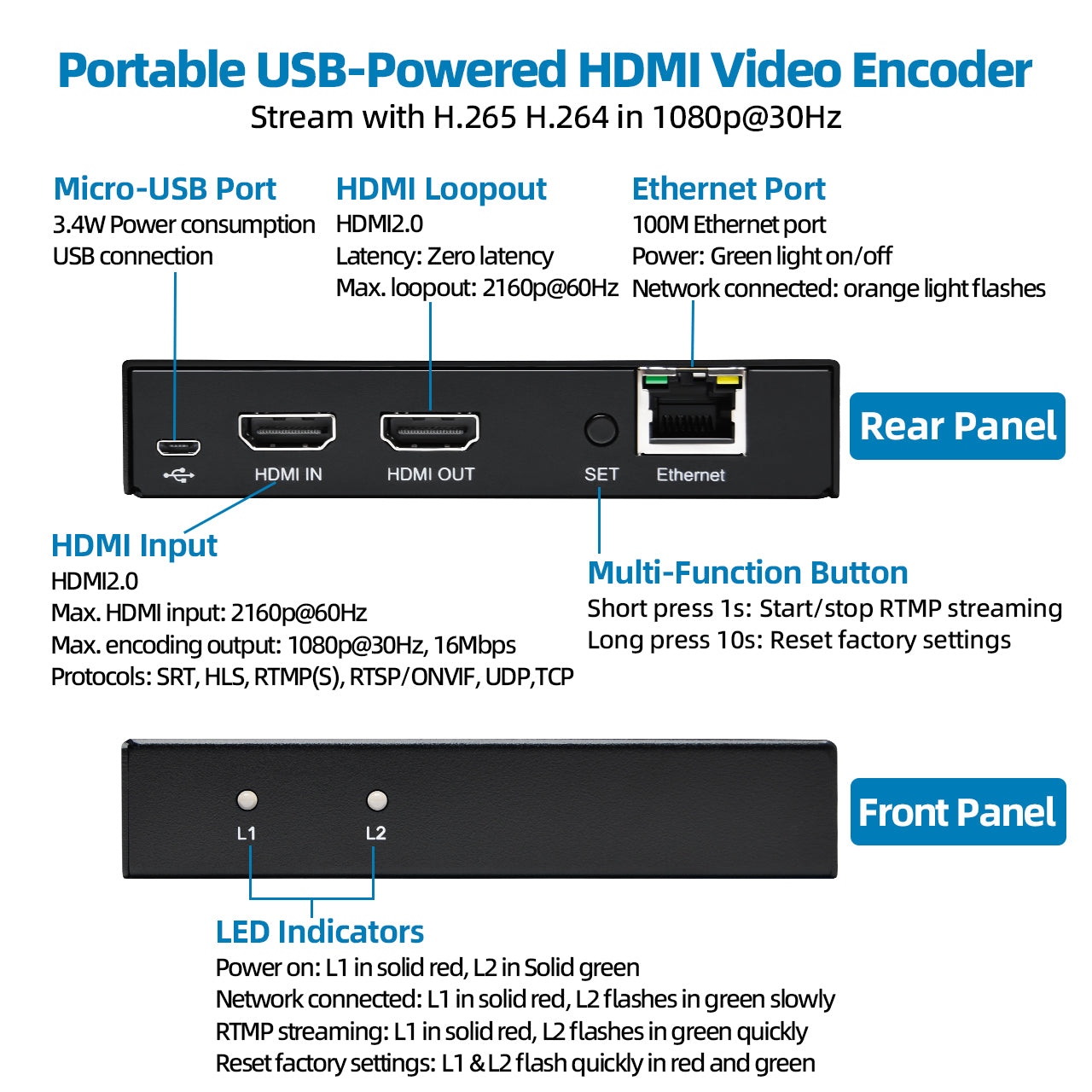

One-Click to Go Live: Support one-click to start or stop live streaming by pressing the set button on the HDMI IP encoder; it is vital to instantly start/stop the streaming at any time in many live broadcast events.
Remote Control & Stream on Internet: Support DDNS; you can easily control the HDMI encoder through domain remotely in public Internet and set up video transmission without any third-party live platform getting involved.
Stream Live on Multiple Platforms: The live video encoder allows users to simultaneously go live on 4 platforms with RTMP, RTMPS, or SRT protocol; compatible with YouTube, Facebook, Twitch, Dacast, Microsoft stream, wowza, IPTV and more
NTP Sync & Clock OSD: The HEV-10 supports NTP time sync with a simple setting; You can also add time as an OSD label at any position in the screen. So that you can stay tuned with your streaming video.
SRT Encoder

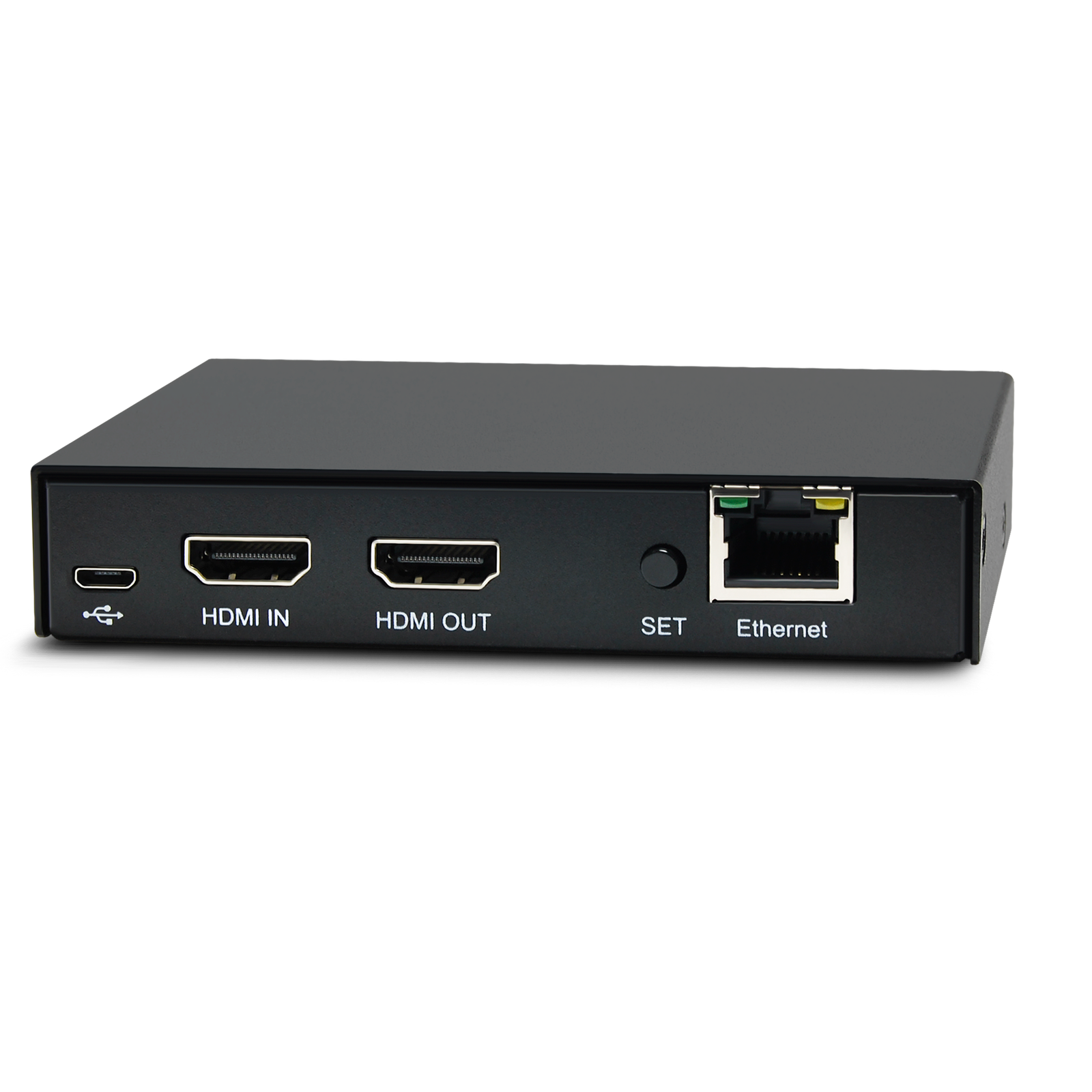

The HEV-10 is compact in size and a USB-powered encoder. The live streaming encoder delivers secure, reliable and high-quality low latency video with HEVC/H.265 or AVC/H.264 SRT protocol. No matter how bad your network condition is, say "no" to packet loss, jitter and fluctuating bandwidth.

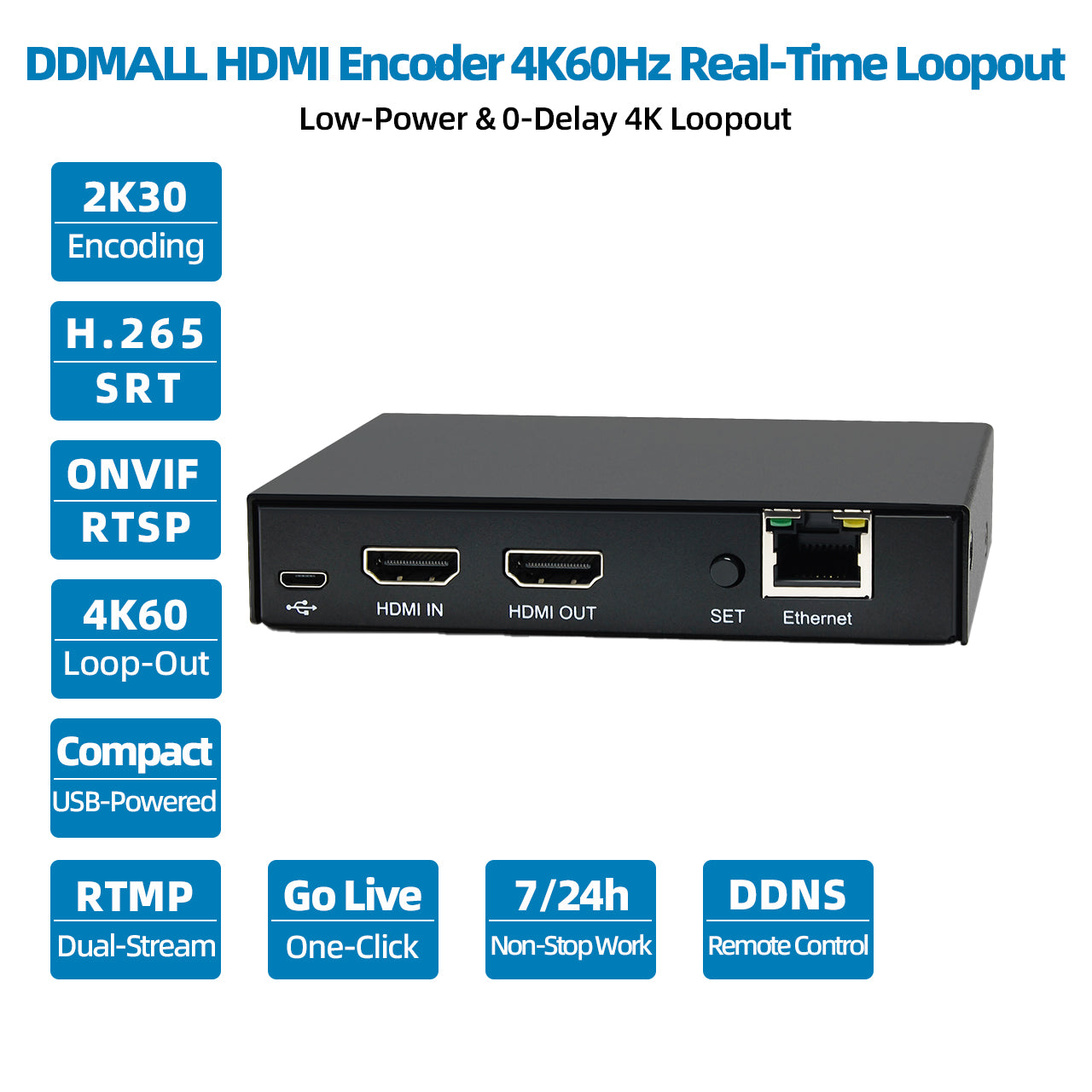

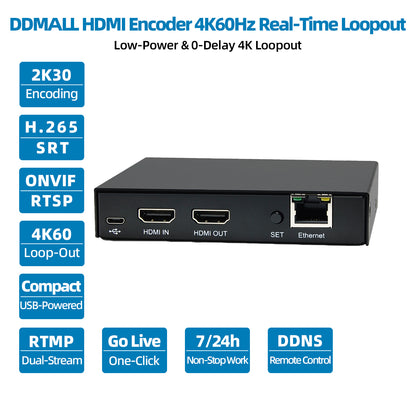

True 4K HDMI Input and Local Loopout

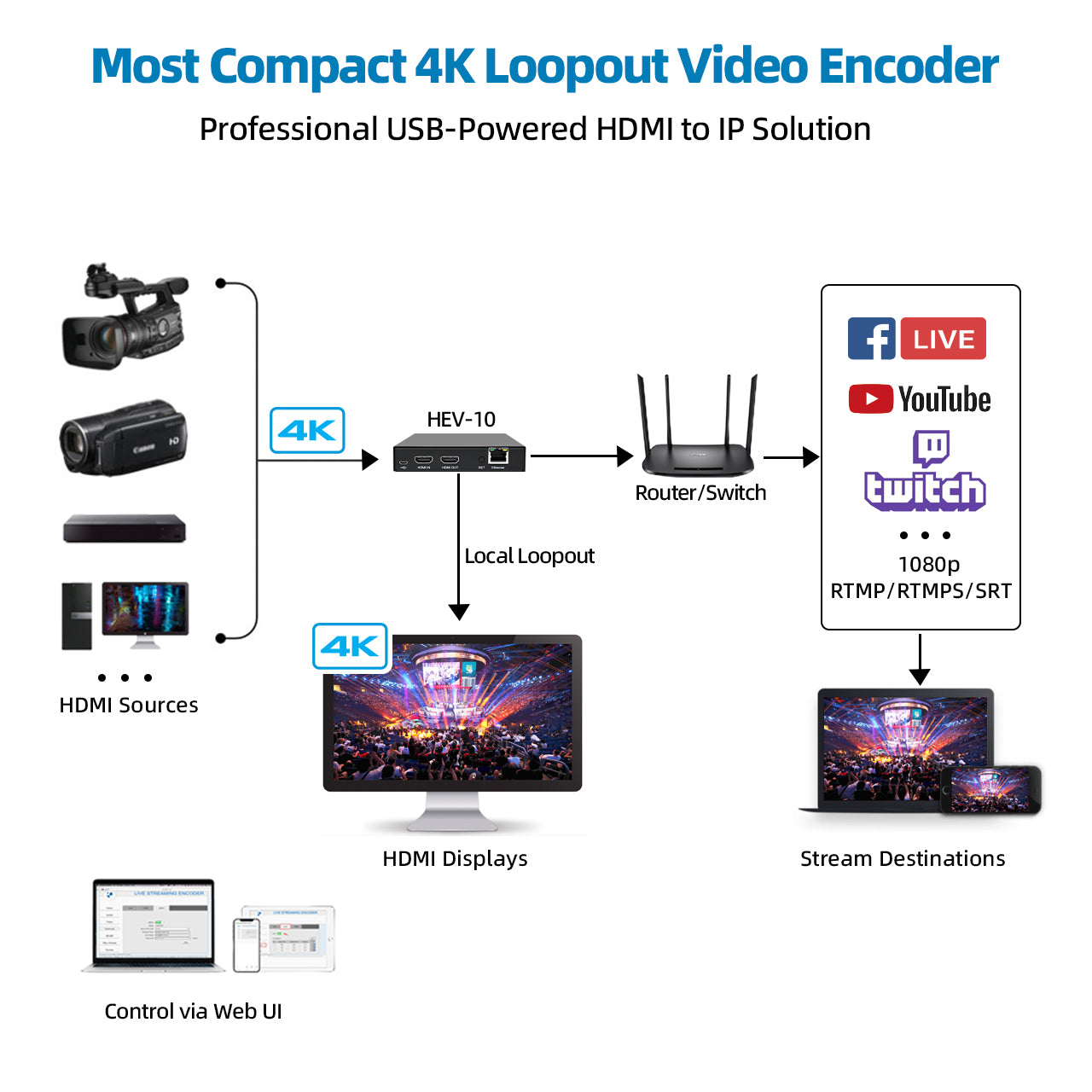

The HEV-10 hardware encoder HDMI inputs up to 4K@60Hz and 0-delay local loopout in 4K@60Hz; experience real 4K high-quality clarity and monitor your video locally in real time. The IP encoder encoding outputs at video bitrate up to 16Mbps. Enjoy your high quality video with ease.
One Click to Go Live
With the multi-function buttion, the live streaming encoder enables one-click to start/stop your streaming at any time you wish. You can control the interaction with your audiences with ease.

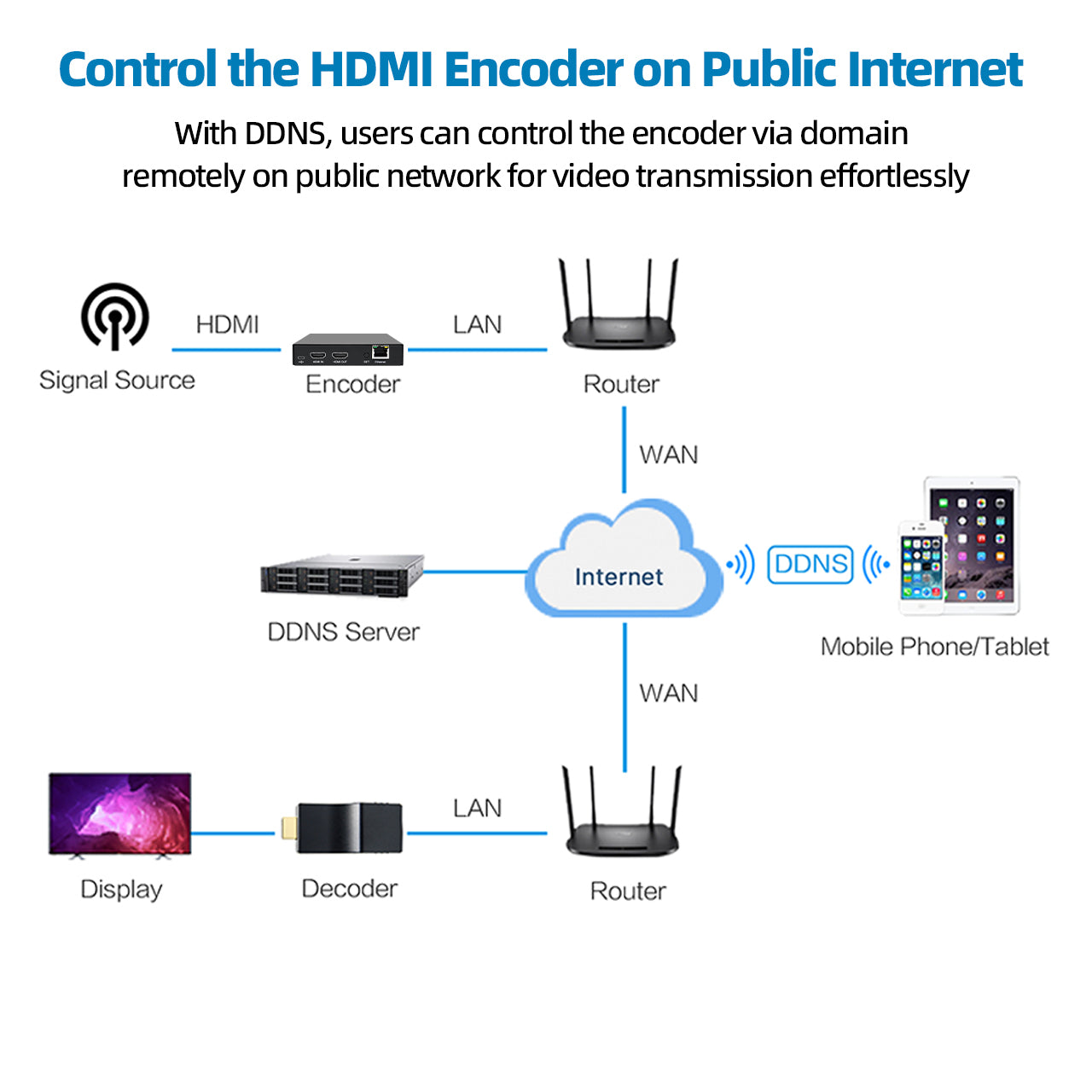

DDNS--Control Your Encoder in Public Internet
With DDNS function, the HEV-10 enables remote management capabilities, you can easily control your encoder through domain name in public Internet. Access to your encoder anywhere from the world with Internet connectivity.
Key Features
• H.265/HEVC and H.264/AVC HDMI video encoder.
• HDMI inputs up to 2160p@60Hz and encoding outputs up to 1080p@30Hz, 16Mbps.
• Real-time 4K loopout: The streaming encoder supports HDMI loopout at up to 2160p@60Hz without delay; you can easily monitor your video status locally.
• User-friendly web UI: You can configure the IP encoder by any web-enabled device. manage your encoder at any time.
• Reliable quality: The live encoder supports 24/7 working durance.
• Ultra-low power consumption of 3.4W: Carbon footage is reduced by universal USB connection for power supply, ideal for long-time working state.
• Remote control in public Internet: You can remotely control the video encoder through domain, and set up video transmission in public Internet.

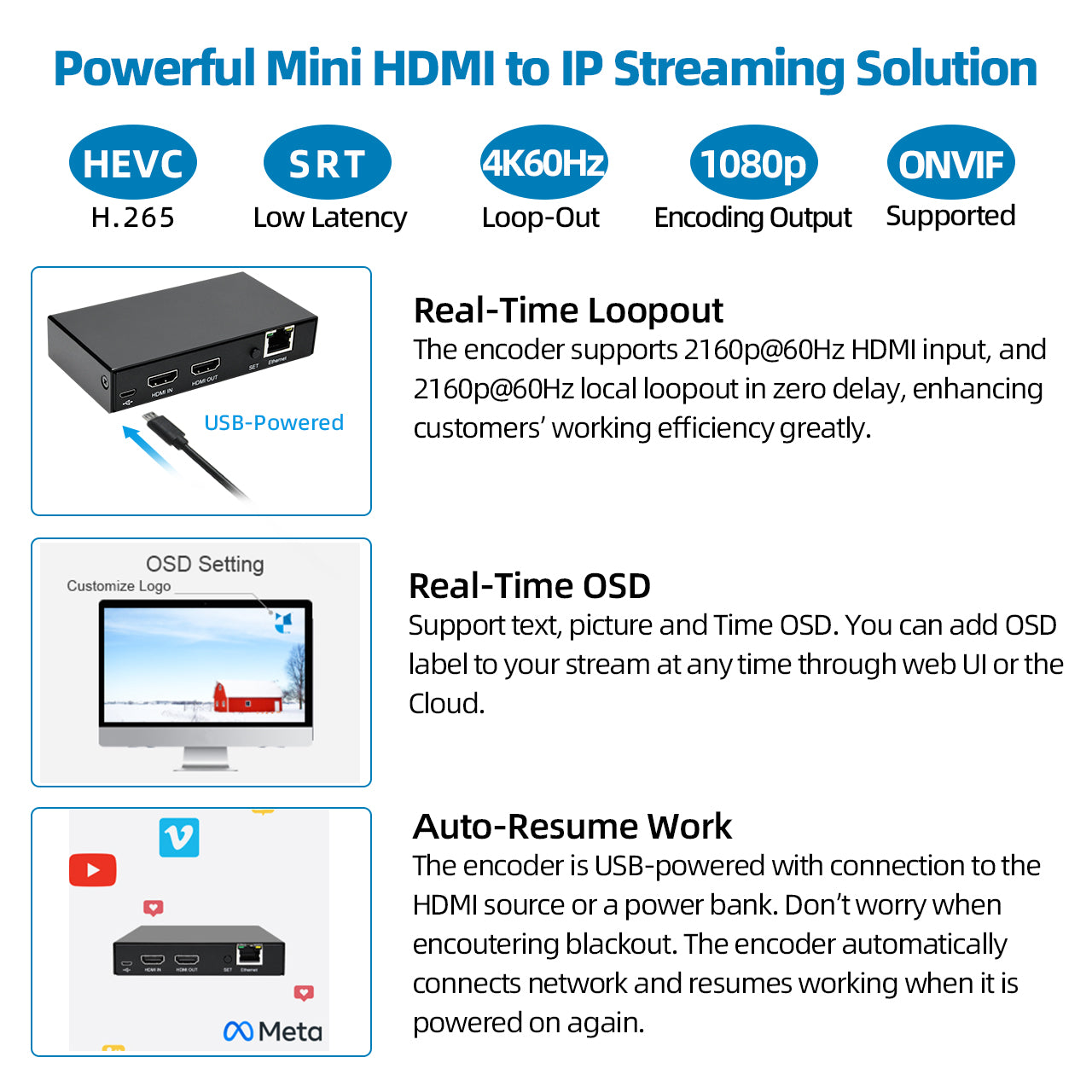

• NTP time sync & OSD setting: You can easily sync your time with online servers with NTP time sync function; and your can add logo/text/image/time labels onto the streams in real time for display.
• Streams to multiple platforms: Simultaneously stream to up to 4 platforms like YouTbe, Facebook, Twitch, Wowza, Vimeo and more.
• Various protocols: SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast and Unicast. When it works as a SRT encoder, it delivers secure, reliable, high quality video in low latency.
• One-click to go live: Start/stop streaming at any time. Absolutely agile your streaming workflow greatly.
Parameters
|
Power Supply |
DC 5V 1A(USB-Powered) |
Power Consumption |
3.4W |
|
Operate Temperature |
10~55℃ （14~149℉） |
Storage Temperature |
-20~85℃ （-4~185℉） |
|
Operate Humidity |
10%- 90%RH (Non-condensing) |
HDMI & Loopout Standard |
HDMI 2.0 |
|
Video Input & Loopout Resolution |
1096x2160p@60/30Hz, 3840x2160p@60/30Hz, 1920x1080p@60/50/30Hz, 1920x1080i@60/50/30Hz, 1280x720p@60/50/30Hz |
Encoding Output Resolution |
1080p@30Hz, 720p@60Hz, 960x720@60Hz, 960x540@60Hz, 640x480@60Hz, 360x200@60Hz |
|
Video Codec |
H.265/HEVC & H.264/AVC |
Video Bit Rate |
128Kbps-16Mbps |
|
Bitrate Control |
CBR/VBR/AVBR/FixQP |
Audio Input |
HDMI |
|
Audio Format |
G.711u, AAC |
Audio Bit Rate |
32Kbps-256Kbps |
|
Transport Protocol |
SRT, HLS/HTTP, RTMP, RRTMPS, RTSP, RTP, TCP, UDP |
Work Mode |
Multicast, Unicast |
|
Network Mode |
Static IP, DHCP |
Control Method |
Web UI |
|
Dimension |
110mm(L)x60mm(W)x22mm(H) |
Weight |
96g |
